• Model NO.：SKZ1016A
• Display Range：-100 Kpa -0
• Display Resolution：0.1kpa
• Vacuum：<=(0-- -85kpa)
• Timing Range：0--9999sec
• Timing Display Resolution：1sec
• Input Air Pressure：0.2-0.5MPa (Customer Self Provi
• Air Pressure：70L,Min
• Dimension：490*300*250mm
• Power：220V, 50Hz or 60Hz
• Transport Package：Wooden Packing
• Specification：490*300*250mm
• Trademark：SKZ
• Origin：China
• HS Code：90248000
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. SKZ1016A Display Range -100 Kpa -0 Display Resolution 0.1kpa Vacuum <=(0-- -85kpa) Timing Range 0--9999sec Timing Display Resolution 1sec Input Air Pressure 0.2-0.5MPa (Customer Self Provi Air Pressure 70L/Min Dimension 490*300*250mm Power 220V, 50Hz or 60Hz Transport Package Wooden Packing Specification 490*300*250mm Trademark SKZ Origin China HS Code 90248000 Production Capacity 2000PCS/Year

Product Description

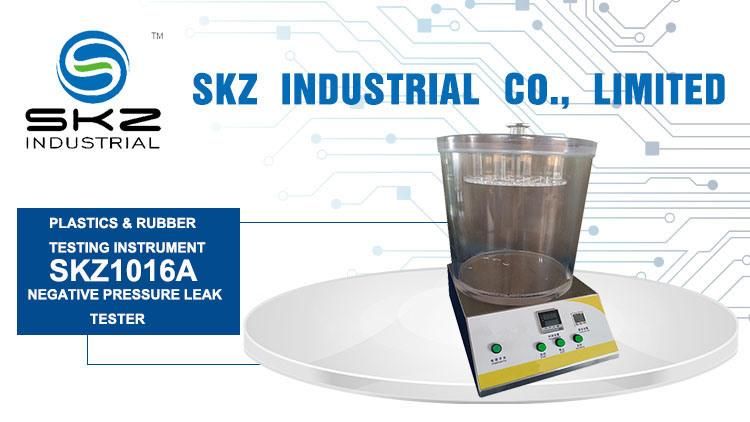

SKZ1016A High quality auto ASTM D3078 can leak tester pressure leakage Packaging negative vacuum leak tester machine

Leak Tester is a kind of tester that use compression air to produce negative pressure by vacuum device to test the seal capability and processing technique of soft plastic packaging material in food and pharmaceutical industry. It also can test the specimen which has done the drop and compression test.

Standards
GB/T15171-94 (the Seal Testing Method for soft packaging).
ASTM D 3078 Standard Test Method for Determination of Leaks in Flexible Packaging

Working principle:
To vacuum the vacuum room and make the pressure difference between inside and outside of the specimen in the water. We can evaluate the seal capability by observing the air permeability situation of the specimen.

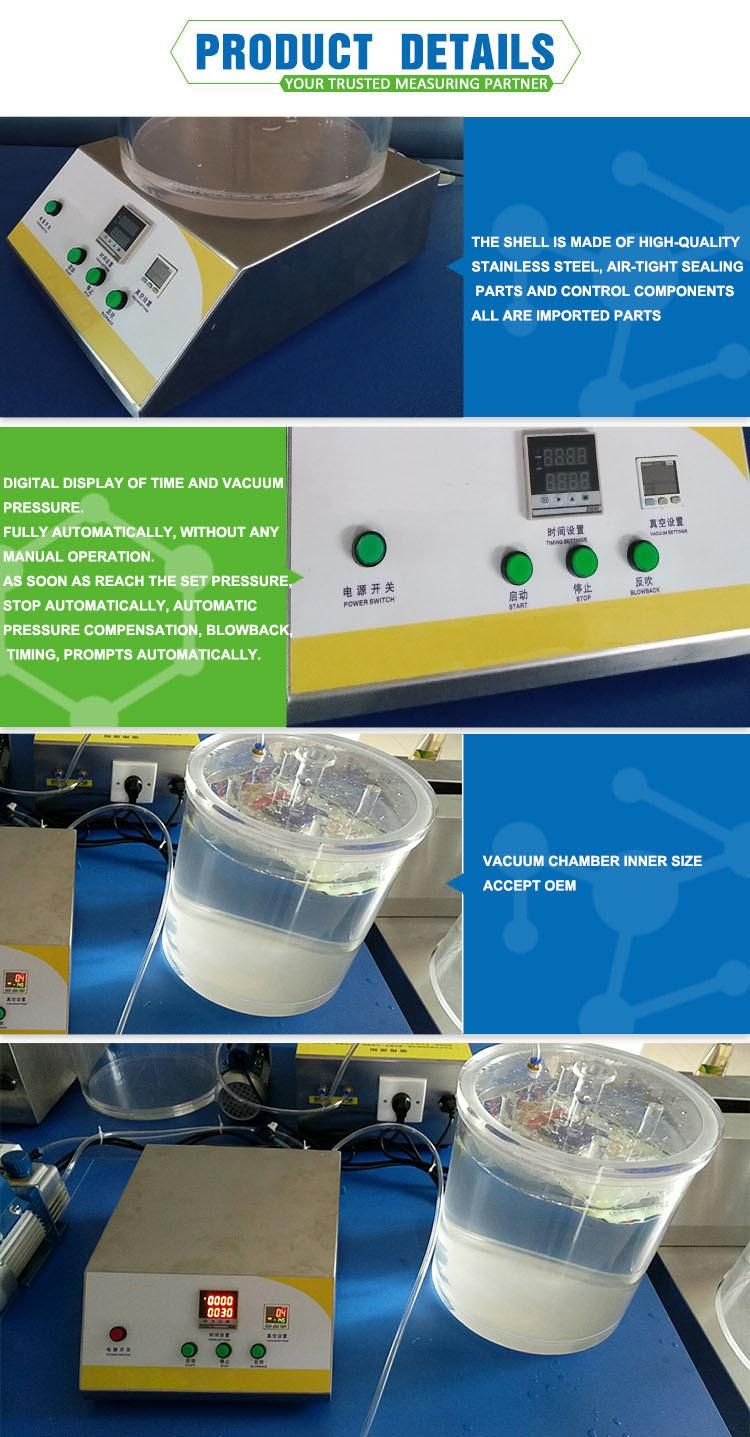

Feature
1. The shell is made of high quality stainless steel
2. Air seal parts, automatic control components, vacuum control meter, timing controller, are imported
3. Vacuum pump automatically disconnected, automatic pressure compensation, set time prompts automatically, the vacuum set value can be maintain for a long time
4. Automatic digital display, reach the set pressure, stop, without any manual operation, pressure compensation, timing, blowback, automatically
5. With power security precautions.


Technical parameters:

Display Range	-100 kPa -0
Display resolution	0.1kPa
Vacuum	≤0-(―85KPa)
Timing range	0--9999sec
Timing display resolution	1sec
Recommend timing set	10sec -180sec, default setting: 30sec
Input air pressure	0.2-0.5Mpa (customer self provide)
Air pressure	70L/min
Drainage pipe	Φ 8mm, polyester TPU
Dimension of vacuum room	Φ300×200mm(H)
Power	220V, 50HZ or 60HZ
Dimension of host	490*300*250mm
Weight	20kg
