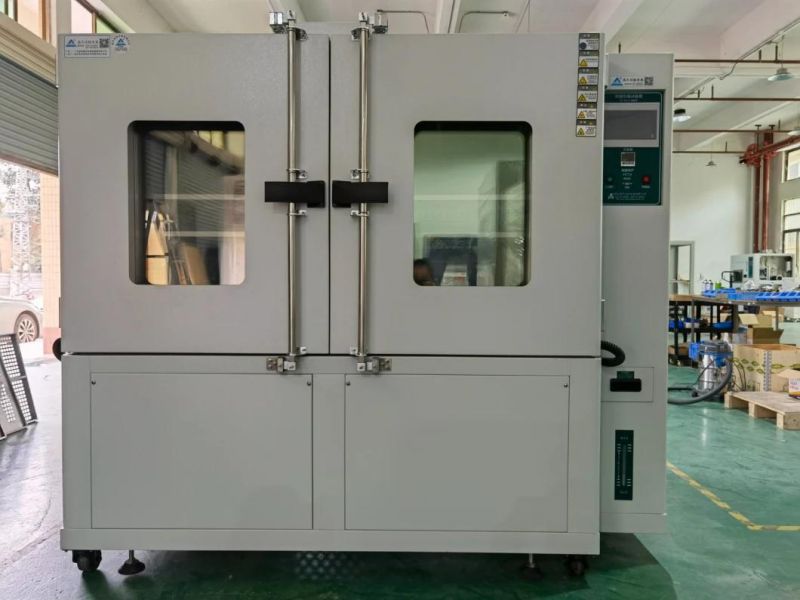

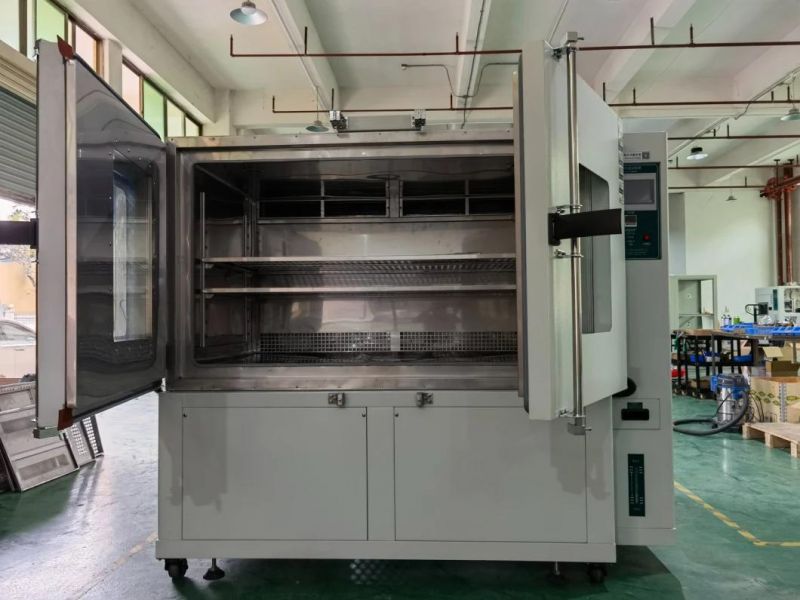

High Precision Programmable Constant High Low Temperature Test Chamber
Boto Group Ltd- After-sales Service：12 Months
- Power Supply：AC380V
- Certification：CE, TUV, ISO
- Warranty：3 Years
- Temperature Range：-70ºC~+150ºC
- Transport Package：Strong Wooden Case
Base Info
- Specification：1000L
- Trademark：BOTO
- Origin：China
- HS Code：85141090
- Production Capacity：60000sets ,Month
Description
Absorbs residual moisture and acidic substances in the refrigerant of the refrigeration system, and filters out solid rest particles and copper shavings in the system to protect the normal operation of the expansion valve and capillary from ice and dirty plugging Control SystemScreen display function 1. Temperature and humidity setting (SV) actual (PV) value is displayed directly
2. Can display the execution program number, segment, remaining time and cycle number, running time display
3. Program editing and graphic curve display
4. With a separate program editing screen, each page can enter 4 segments of temperature and humidity, time
5. Fixed point or program action status display
6. Language conversion can switch Chinese / English
7.7 inch true color display screen Program capacity and control function 1. Program quantity that can be used: maximum 120 groups, 1 program can be composed of 1 ~ 99 stages, capacity: 1200 stages
2. Commands can be executed repeatedly: each command can be up to 999 times, the temperature and humidity slope can be set by the time axis; 3. The program can be set to connect to use; the production of the program is easy to use conversational operation; with editing, Clear, insert and other functions; group time signal output control (can control the ON / OFF action of the test object)
4. With 9 groups of PID parameter settings
5. With skipping and holding functions during program execution
6. With power-off program memory, it can automatically start and resume the program after power is restored
7. Data acquisition, export, view graphics function
8. PID automatic calculation and FUZZY control function
9. The screen can be adjusted for backlight, and the backlight time can be set
10. On-screen display protection function can be set to close regularly or manually
11. Program copy, COPY, connection function, edit experiment title and other program editing functions
12. With appointment start and shutdown function
13. With date and time adjustment function
14. Button and screen lock (LOCK) function
15. Standby picture viewing function and exception handling picture explanation function Communication interface 1.R232 / 485 communication
2. Can display curves and obtain data
3. Can be used as a monitoring and remote control system Setting method Chinese / English interface, touch input Operation mode Program method / fixed value method Predetermined area Maximum temperature range: 5 ºC Display resolution Temperature:0.01ºC;Time:0.1min Power off memory function Can set power failure recovery mode as: hot start / cold start / stop Input Platinum resistance Storage function Standard configuration 2G SD card to record test data curve, can upload and download data, expand storage capacity
