High Voltage Oil Immersed Type AC DC Hipot Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Warranty：12 Months
  • Standard：T-9641-1999
  • Hi-Pot Tester Capacity：1.5kVA-300kVA
  • Transformer Type Option：AC Type, DC Type or AC DC Type Transformer
  • Hi-Pot Tester Type：Oil Type, Oil-Immersed Transformer

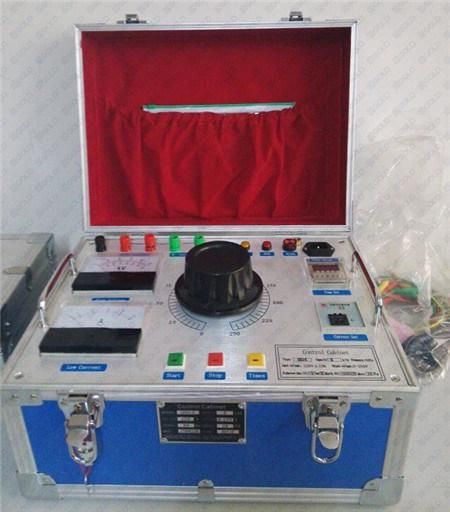

  • Control Cambinet Features：Reasonable Structure, Small Size,Light Weight

Base Info

  • Model NO.：GDJ
  • Product Name：Hipot Tester
  • Maximum Output Voltage：50kv~250kv
  • Rated Frequency：50Hz,60Hz
  • Work Humidity：<80%
  • Transport Package：Wooden Case
  • Specification：Oil Immersed transformer type
  • Trademark：Gold
  • Origin：China
  • HS Code：9030849000
  • Production Capacity：1000set,Month

Description

Basic Info.

Model NO. GDJ Product Name Hipot Tester Maximum Output Voltage 50kv~250kv Rated Frequency 50Hz/60Hz Work Humidity <80% Transport Package Wooden Case Specification Oil Immersed transformer type Trademark Gold Origin China HS Code 9030849000 Production Capacity 1000set/Month

Product Description

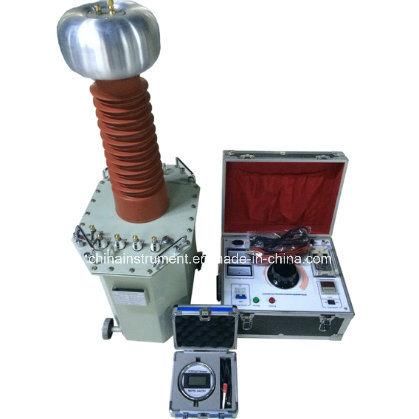

GDJ Series High Voltage Oil Immersed Type AC DC Hipot Tester


Introduction:

GDJ Series Oil Immersed Test Transformer AC DC Hipot Tester for Cable Withstand Voltage Testing is applied in power system for insulation test of high voltage equipment.

The typical application of the HIPOT tester is as follow:

  • Power Transformer AC high voltage withstand test

  • Circuit Breaker AC high voltage withstand test

  • High voltage motors high voltage withstand test

  • Voltage/current transformer high voltage withstand test

  • High voltage power source for calibration of high voltage meter


High Voltage Oil Immersed Type AC DC Hipot Tester

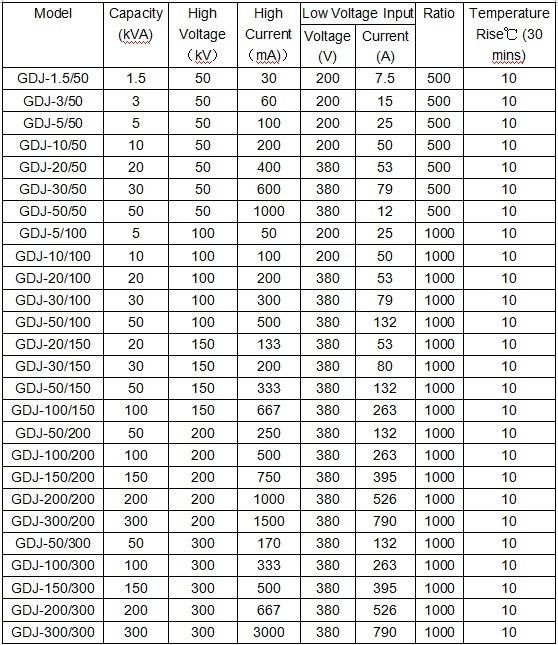

Model Selection Table:

  • Please confirm the right model before order. The main parameters include input voltage, maximum output voltage and capacity.

  • The parameters in this table are response for HV transformer only and we will install the main control box according to the capacity and input voltage of the model you order.



Parameters

High Voltage Oil Immersed Type AC DC Hipot Tester


Notice:

  • If the maximum voltage is less than 100kv we will offer dry HV transformer for the tester, otherwise we will offer oil HV transformer for the tester;

  • The capacity and maximum voltage output could be customized according to the requirements of customer if you can not find the right one in this table;

  • The weight listed in the table is HV transformer only it does not include the weight of main control box. Please confirm the total weight of the tester with our sales engineer before order;

    High Voltage Oil Immersed Type AC DC Hipot Tester

    High Voltage Oil Immersed Type AC DC Hipot Tester

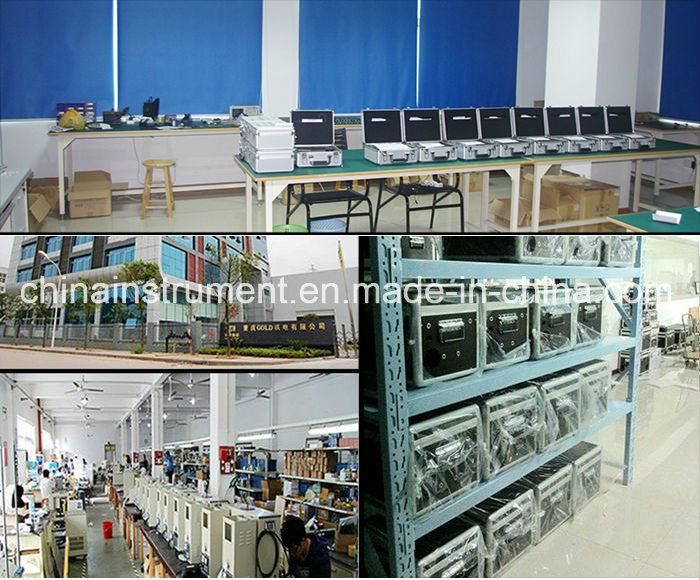

Company Information
