• Model NO.：STYE-2000P
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Automatic Digital
• Weight：1650
• Power Source：AC380V
• Oil Cylinder Position：Under
• Max. Testing Power：2000kn
• Measuring Range：0-2000kn
• Testing Power Precision：Grade1
• Max. Distance Between The up and Down Be：310mm
• Max. Piston Stroke：90mm
• Max. Piston Lift Speed：50mm,Min
• Piston Free Back Speed：20mm,Min
• Diameter of The Piston：Dia250mm
• Rated Pressure of The Hydraulic Pump：40MPa
• Power：AC220V or AC380V
• Outside Size：1050X650X860mm
• Transport Package：Wooden Case
• Specification：1050x650x860mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYE-2000P Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Automatic Digital Weight 1650 Power Source AC380V Oil Cylinder Position Under Max. Testing Power 2000kn Measuring Range 0-2000kn Testing Power Precision Grade1 Max. Distance Between The up and Down Be 310mm Max. Piston Stroke 90mm Max. Piston Lift Speed 50mm/Min Piston Free Back Speed 20mm/Min Diameter of The Piston Dia250mm Rated Pressure of The Hydraulic Pump 40MPa Power AC220V or AC380V Outside Size 1050X650X860mm Transport Package Wooden Case Specification 1050x650x860mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

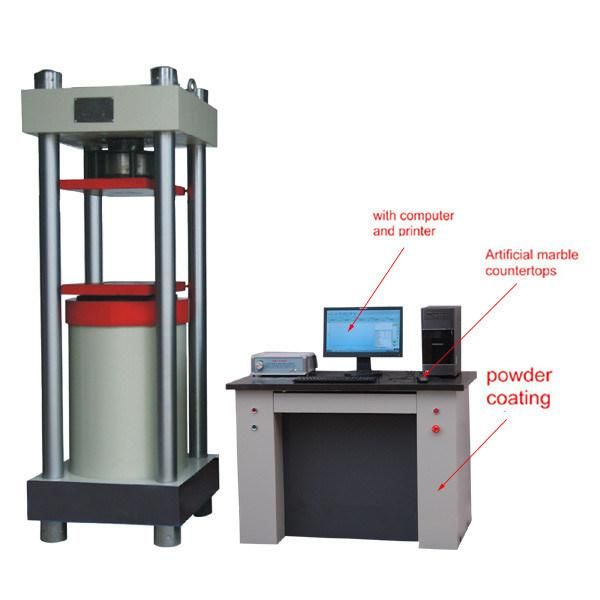

STYE-2000P/3000P Full Automatic Compression Testing Machine (CTM)

Use
Computer controlled hydraulic servo compression testing machine is mainly used to test compression strength of cement, concrete, rocks, brick. Space adjusting and  test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic compression testing machines. It is widely used in different steel works, engineering areas, quality control department, Universitiesand institutes as well as other areas and works.

Fully computer controlled testing process. Stable and reliable high intensity structure load frame. Real time display software will provide accurate track of testing process. Powerful multifunctional control software will provide more testing methods and standards.

Specification:

Model	STYE-2000P
Max. testing power	2000kN
Measuring range	0-2000kN
Relative indication error	±1%
Max. distance	between the up and down
bearing plate	310mm
Max. piston stroke	300mm
Diameter of the piston	Dia 250mm
Rated pressure of the hydraulic pump	40MPa
Power	AC220V±10% or AC380±10%
Outside size	1050×650×860mm
Max. piston lift speed	50mm/min
Piston free back speed	20mm/min
Net weight	1650KGS
Noise	≤80Db
