• Model NO.：TP
• HS Code：90248000
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. TP HS Code 90248000 Production Capacity 200 PCS/Month

Product Description

Packaging & Delivery

Selling Units:
Single item
Single package size:
75X34X64 cm
Single gross weight:
118.000 kg
Package Type:
standard export package
Lead Time :

Quantity(Sets)	1 - 10	>10
Est. Time(days)	7	To be negotiated

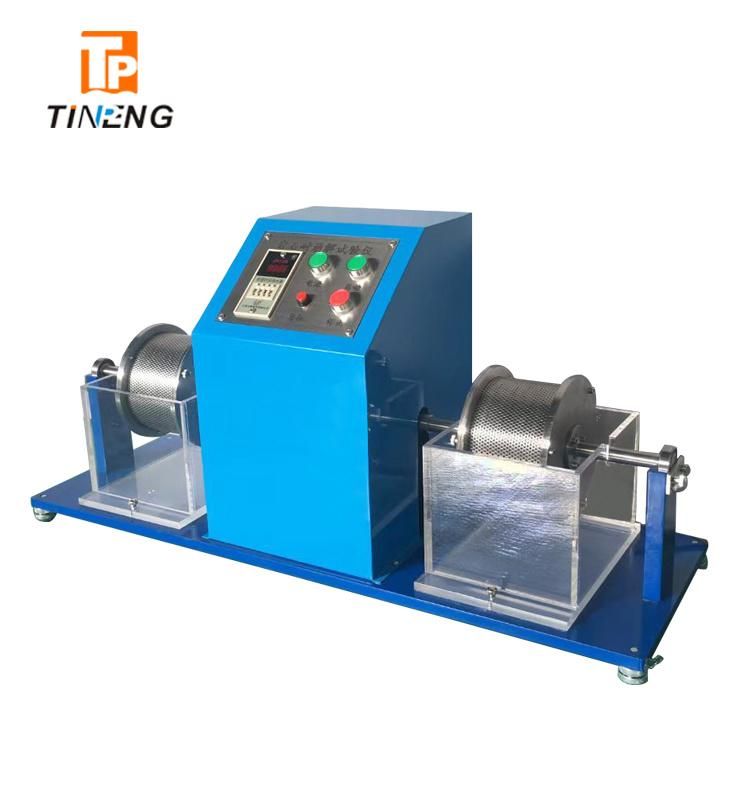

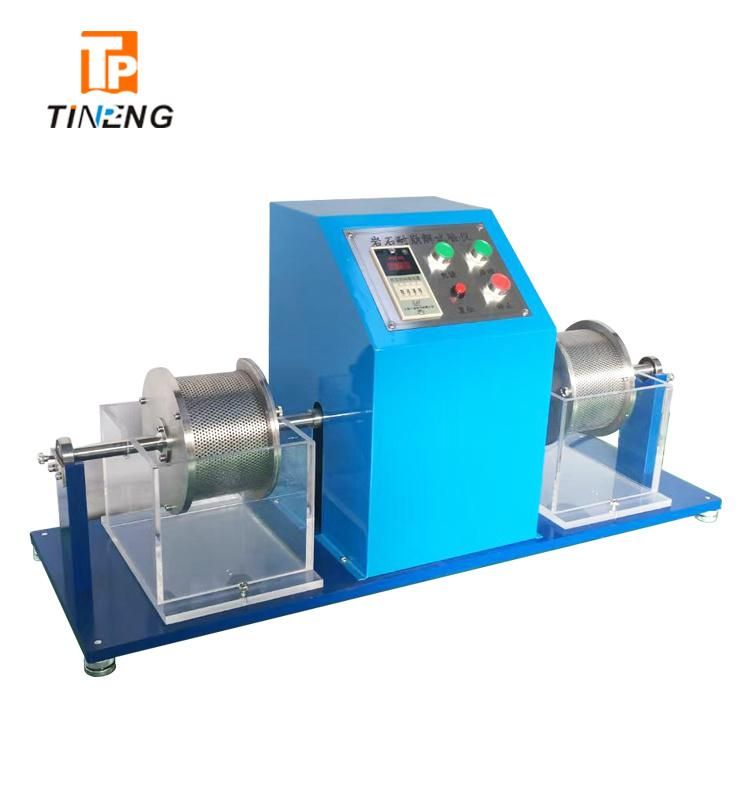

 Rock disintegration resistance tester

1, Overview
Rock disintegration resistance tester is mainly used to measure the durable disintegration index of rock, which can test the durability of rock to resist disintegration after alternation of drying and wetting due to climatic factors. The device can rotate 2 or 4 drum shaped sample boxes at the speed of 20 revolutions per minute through a motor fixed on the bottom plate of the device. The drum type sample box is installed on the bearing coated with lubricating oil, and there is no resistance when rotating. The drum type specimen box is made of corrosion-resistant material and is equipped with two water tanks. It is widely used in Colleges and universities, scientific research institutes, test centers, etc.

2, Main parameters
1. Main engine power: 90W
2. Speed: 20 rpm
3. Sieve cylinder: φ 140 * 100 mm,
4. Standard mesh size: 2mm
5. Tank volume: 150 * 150 * 120mm
6. Sample specification: each piece of 40-60g, 10 pieces in total, polished into a round shape with a grinding plate or emery cloth
7. Specimen shape: approximately spherical shape, without edges and corners
8. Overall dimension: 750 * 400 * 450mm
