• Model NO.：GDGK-501
• Power Source：AC220V
• Input Voltage：AC220V±10%, 50Hz, single phase
• Capacity：3kVA
• Output Voltage：AC 0-260V DC 0-360V
• Accuracy：1.5% of the range
• Temperature：-10ºC-45ºC, humidity: <80%
• Dimension：440*340*240 mm
• Transport Package：Standard Export Wooden Box
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan, China
• HS Code：8504401930
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. GDGK-501 Power Source AC220V Input Voltage AC220V±10%, 50Hz, single phase Capacity 3kVA Output Voltage AC 0-260V DC 0-360V Accuracy 1.5% of the range Temperature -10ºC-45ºC, humidity: <80% Dimension 440*340*240 mm Transport Package Standard Export Wooden Box Specification ISO, SGS Trademark HV Hipot Origin Wuhan, China HS Code 8504401930 Production Capacity 2000PCS/Year

Product Description

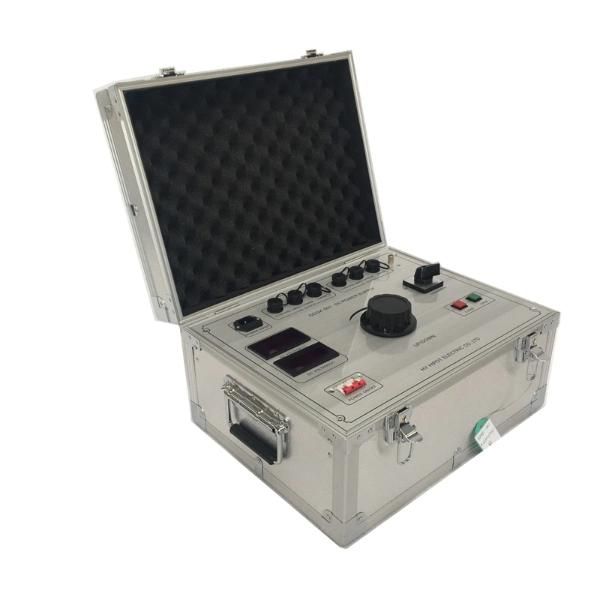

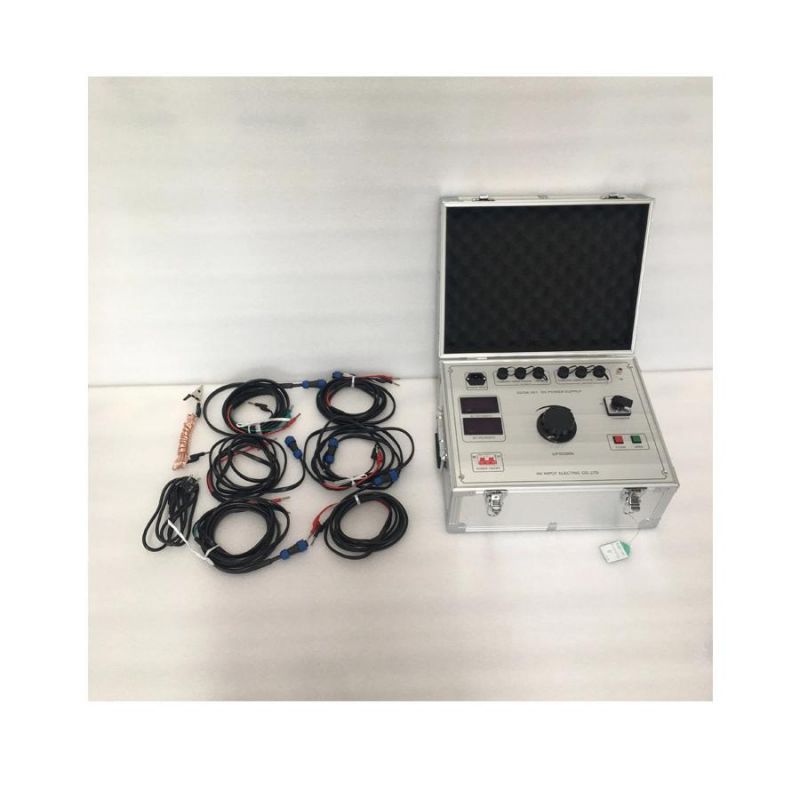

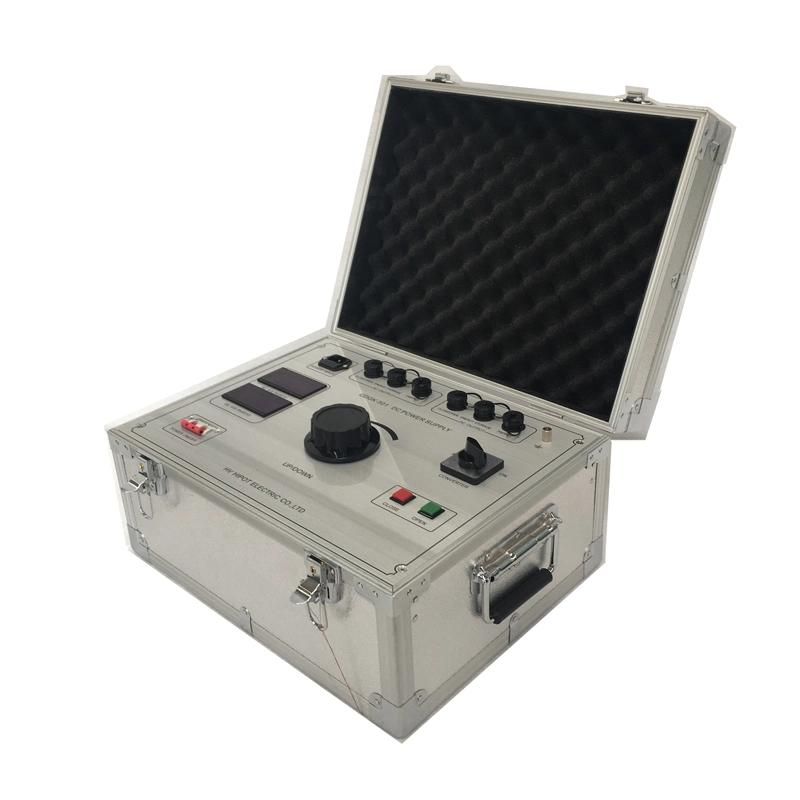

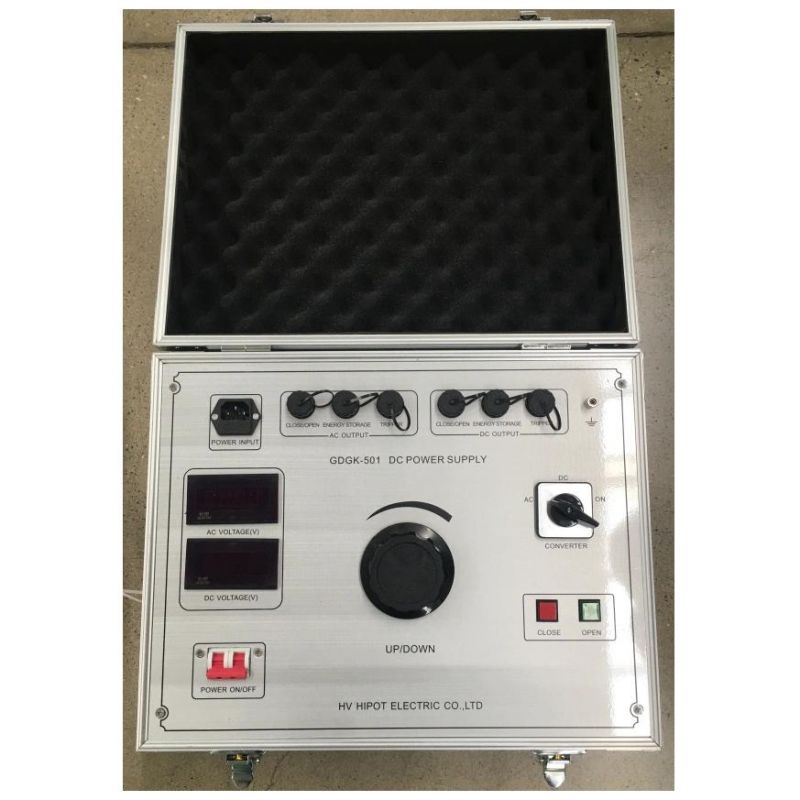

GDGK-501 HV Switches/Circuit Breakers Single Phase DC Power Supply


Application

GDGK-501 supplies power to circuit breakers or other HV switches.


Features


1. Using contact regulators to output voltage and rectify by rectifier bridge.
2. The output voltage is continuous adjusted.
3. Small size, light weight.

Specifications


1. Input Voltage: AC220V±10%, 50Hz, single phase
2. Capacity: 3kVA
3. Output Voltage: AC 0-260V ; DC 0-360V
4. Output Current: 10A (continuous), 2A(short time)
5. Accuracy: 1.5% of the range
6. Temperature: -10ºC-45ºC, humidity: <80%
7. Dimension: 440*340*240 mm
8. Weight: 18kg
