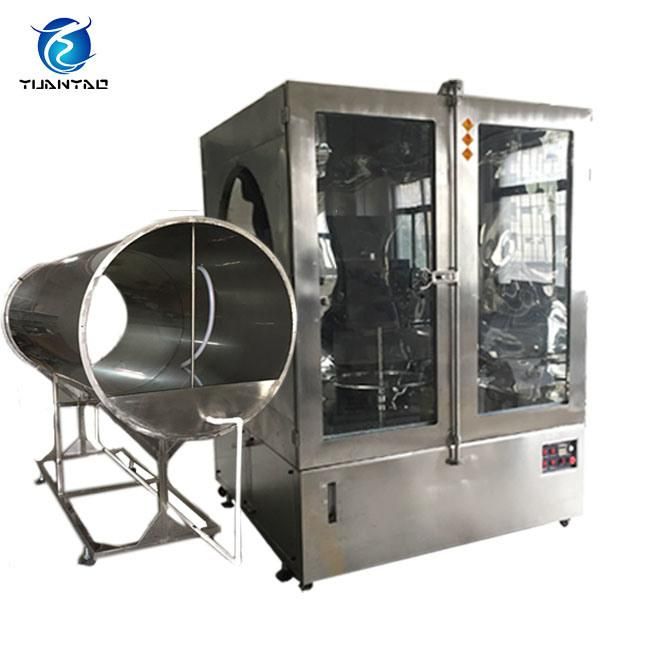

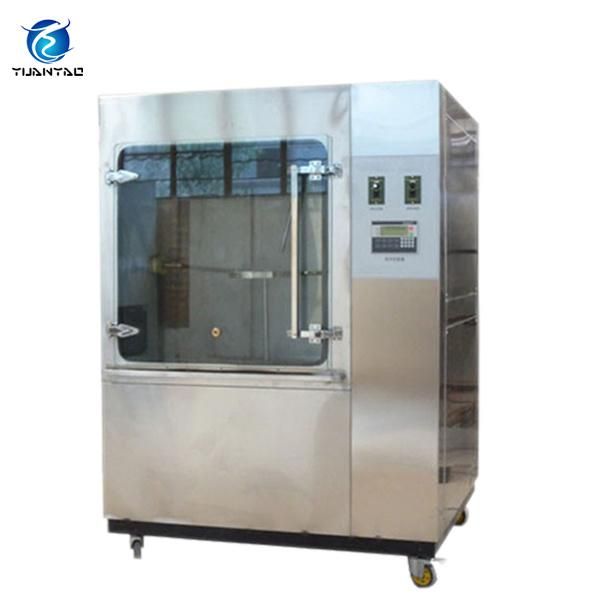

Yuanyao Test Equipment Water Test Chamber Rain Resistance Test Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Type：Material Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：YSRT-1728
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Internal Size(mm)：1200*1200*1200(W*H*D)
- Flow Rate of The Weter：0.07L,Min
- Water Temp.：Normal
- Transport Package：Good Package
- Specification：CE, ISO SGS certified.
- Trademark：Yuanyao
- Origin：China
- HS Code：9032100000
- Production Capacity：5 Sets,Month
Description
ModelYSRT-1728-A YSRT-1728-E(IEC-529)(CNS14165) Internal Dim.W×H×D(mm) 1200×1200×1200 1200×1200×1200 External Dim.W×H×D(mm) 1750×1850×1300 1750×1850×1300 Water Temp. Normal Normal Spray Type Total Water Flow(L/min) R1 1.8 IP×1 With in 1~1.5mm/min(In drip box) R2 3.2 IP×2 With in 3~3.5mm/min(In drip box) S1 24.5 IP×3 angle±600,R:400mm,1.1L/min S2 39.2 IP×4 angle±1800,R:400mm,1.8L/min Pressure of spray nozzle(kgf/cm*2) R1 0.1 1.Flow rate of the water=0.07L/min
2.1P×3,Radius:400mm,16Number or open
holes=16,total water flow:1:1L/min.
3.1P×4,Radius:400mm,25Number or open
holes=25,total water flow:1:8L/min.
*Radius:200mm,R400mm.
(For 1P×3,1P×4 only) R2 0.3 S1 1 S2 3 (RPM)Test Specimen Frame 17RMP 1RPM Spray Nozzle Rotation Speed 23RPM Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four
seconds to promote
Swing 60 ° from vertical for 4 seconds at one time
Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round
Swing 180 ° from vertical for 12 seconds at one time Material Interior SUS#304 Exterior Other Components Chamber lamp.Wiper
casters with Adjusters Chamber lamp.Wiper,casters with Adjusters Power Source(K.W.) AC 1Ψ 220V 60/50Hz 4KW
Except rain spray tester, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on
