• Model NO.：YWER
• Temperature Range：0-80c
• Temperature Fluctuation：+,-0.3c
• Power Supply：AC 220V 50Hz,AC 3 Phase 380V 60,50Hz
• Transport Package：Good Package
• Specification：CE, ISO SGS certified.
• Trademark：Yuanyao
• Origin：China
• HS Code：9032100000
• Production Capacity：5 Sets,Month

Walk In Climate ChamberModelYWERInner chamber size W×H×D(cm)Non-standardExterior chamber size W×H×D(cm) Temperature range0ºC;-20ºC;-40ºC;-60ºC,-70ºC~+70ºC(+80ºC) Humidity range30%RH~95%RHTemp.humi.fluctuation±0.3ºC;±0.5%RHTemp.humi.uniformity±3ºC; ±5%RHIndication Resolution0.1%RH Temperature:0.01 humidity:0.1%RHHeat up ang cool down time Heat-up:2ºC/min(Average),cool-down time 1ºC/min(Average)Air cirulation systemCentrifugal fan air circulation systemHeating systemSUS# Stainless steel high-speed heaterHumidification systemElectrothermal steam humidificationRefrigeration systemCompressor + Finned evaporator + Air(Water) cooling condenserDehumidifying systemdew point dehumification methodControlling systemTouch screen controllerExterior chamber materialCold rolled plate + Powder coatingInner chamber materialSUS#304 Stainless steelInsulation materialPUOther componentsVacuum glass observation window∅50mm ∅100mm ∅160mm(Optional)Control status indicatorView lightOverheat protection circuit breakerSafety protection deviceHumidification system overheat protectionCompressor overload protectionControl system overload protectionOverload indicatorPhase sequence protection Water shortage protectionHigh voltage and low voltage protectionOver temperature protectionWater supply dely protectionFan overcurrent protectionPower supplyAC 3ψ 380V 60/50Hz Power supply can be customizedCustomization serviceNo-standard or special requirements are all welcome

Production Line:

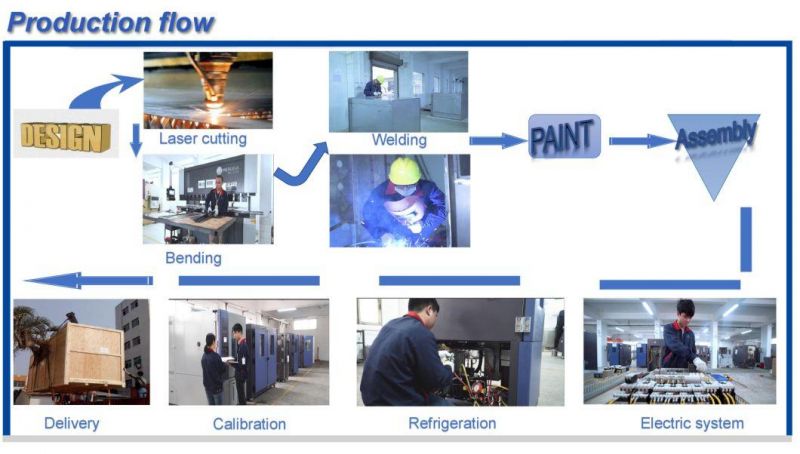

We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.

We produce in strict accordance with international safety standard.

Many stock spare parts in warehouse ensure customer can get soon when they need.

In the past years, Yuanyao has exported more than 2,000 chambers to more than 70 countries all over the world.

1. Pre-sale service : Confirm customer's requirement to send suitable proposal.

2. Make final confirmation before production(machine outlook design and technical parameters).

3. Update the latest production status to our customer and prepare full sets of machine operation documents and operation video(if customer need). We also welcome our customer to our factory for check before delivery.

4. After-sale service: Provide 1 years warranty for spare parts.

                                 Overseas technical support and onsite installation is available.

                                 24 hours standby on skype, wechat, phone,etc.


6.CE, SGS, ISO 9001:2015 certified manufacturer.
