• Model NO.：HZSR-3
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Test Range：0.002 ~ 1mg KOH , G
• Power：500W
• Huminity：≤85% Rh
• Power Supply：AC220V , 50Hz
• Repeatability：≤0.005mg KOH , G
• Measurment Error：≤ ± 0.005mg KOH , G
• Measurement Error：≤ ± 0.005mg KOH , G
• Standards：GB,T7599-87, GB,T264-83, GB,T28522-2002
• Warranty：1 Year
• Aftersales Service：Yes
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9031809090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZSR-3 Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Top Test Range 0.002 ~ 1mg KOH / G Power 500W Huminity ≤85% Rh Power Supply AC220V / 50Hz Repeatability ≤0.005mg KOH / G Measurment Error ≤ ± 0.005mg KOH / G Measurement Error ≤ ± 0.005mg KOH / G Standards GB/T7599-87, GB/T264-83, GB/T28522-2002 Warranty 1 Year Aftersales Service Yes Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9031809090 Production Capacity 100 PCS/Month

Product Description

Manual Acid Number Test Equipment Dielectric Transformer Oil Acid Analyzer


I.Introduction

Acidity of transformer oil, is harmful property. If oil becomes acidic, water content in the oil becomes more soluble to the the oil. Acidity of oil deteriorates the insulation property of paper insulation of winding. Acidity accelerates thee oxidation process in the oil. Acid also includes rusting of iron in presence of moisture. The acidity of transformer oil is measure of its acidic constituents of contaminants. Acidity of oil is express in mg of KOH required to neutralize the acid present in a gram of oil. This is also known as neutralization number.
HZSZ series automatic transformer oil acid value tester,adopting the reflux method. Divided into 8 cups(HZSZ-1) and 3 cups(HZSZ-3).



II.Features

1.Multifunction:can test  acid value of transformer oil , turbine oil and fuel oil.
2.equipped with standard acid and calibration procedures
3.Fully automatic
4.MIcro printer
5.LCD display
6.High accurate
7.Easy operation


III.Parameter

Item	Transformer oil acid value tester Acidity of transformer oil
Testing Range	0.001~1mg KOH/g
Error	≤±0.001mg KOH/g
Repeatability	≤0.002mg KOH/g
Temperature	10°c~45°c
Humidity	≤85%RH
Power Supply	AC220V/50HZ
Power	500W

Standards

GB/T7599-87,GB/T264-83,GB/T28522-2002

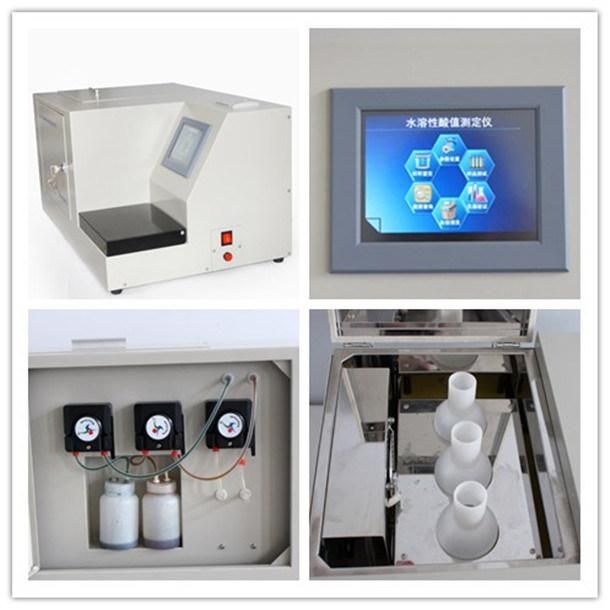

IV.Detailed Photos

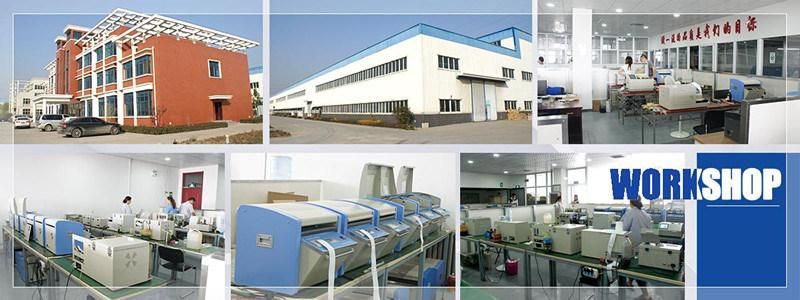

V.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.



VI.Customer Visit



VII.Exhibition

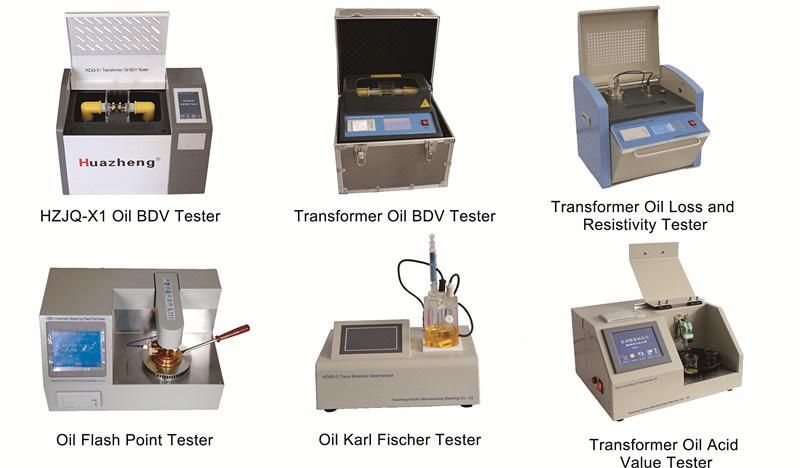

VIII.Similar Recommendation
