• Model NO.：HD-R811-1
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Temperature Measurement Range：Room Temperature-200 ºC
• Temperature Measurement Accuracy：100~200 ºC,≤ ± 0.3 ºC
• Equipment Weight：Approx. 250kg
• Dimensions：540 mm*560 mm*1120mm
• Temperature Display Range：0~200 ºC
• Transport Package：Strong Plywood Case
• Specification：ASTM, ISO standard
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-R811-1 Control Computer Control Weight 500-1000Kg Power Source AC220V Temperature Measurement Range Room Temperature-200 ºC Temperature Measurement Accuracy 100~200 ºC,≤ ± 0.3 ºC Equipment Weight Approx. 250kg Dimensions 540 mm*560 mm*1120mm Temperature Display Range 0~200 ºC Transport Package Strong Plywood Case Specification ASTM, ISO standard Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

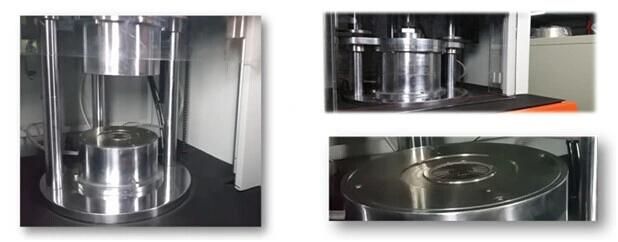

Touch Screen Control Plastic Rubber Rotorless Rheometer Price

Product Introduction:
The rotorless vulcanization instrument is the most widely used instrument in the rubber processing industry to control the quality of the rubber, rapid inspection and basic research on rubber. It provides accurate data for the optimal formula combination of rubber, and can accurately measure the scorch time, positive vulcanization time, vulcanization Index and parameters such as maximum and minimum torque.

The vulcanization instrument includes: host, computer, temperature measurement, temperature control, data acquisition and processing, sensors and electrical interlock. The measurement and temperature control circuit consists of a measurement and control module, platinum resistance, and heater. It can automatically track the changes of the power grid and the ambient temperature, and automatically modify the PID parameters to achieve the purpose of rapid and accurate temperature control.

The data acquisition system and the electromechanical chain complete the automatic detection of the torque signal of the rubber vulcanization process and automatically display the temperature value and set value in real time. After vulcanization is completed, automatic processing, automatic calculation, printing vulcanization curve and process parameters. Show curing time and curing torque. The computer displays the vulcanization process in real time, and the change process of "temperature" and "time-torque" can be clearly seen from above.

Product Features:
1. High temperature control precision and wide range. (± 0.3 ºC)
2. Clock programming function. (Setting and modification time)
3. Advanced technology switching power supply, wide voltage range.
4. Imported integrated circuits and control components.
5. All Chinese and English display.
6. Comply with the requirements of GB / T16584 (Testing the vulcanization characteristics of rubber with a rotorless vulcanizer) and ISO6502.

This type of vulcanization instrument is more stable, more accurate, cheaper, and more functional than other models. It is the best instrument for testing rubber properties.

Technical Parameters:

Item	Parameter
Equipment alias	Sulphurometer,rotorless sulphur transformer, rotorless vulcanization test instrument
Executive standard	ASTMD5289-95 ISO6502-1999 (E) GB / T16584-1996
Temperature measurement range	Room temperature-200 ºC
Temperature measurement accuracy	100~200 ºC,≤ ± 0.3 ºC
Temperature stability	100~200 ºC,≤ ± 0.3 ºC
Setting range	0~200 ºC; setting minimum unit:0.1 ºC
Temperature display range	0~200 ºC; display resolution:0.1 ºC
Setting time range	0~200 minutes; setting minimum unit:1 minute
Automatic range switching	automatically increase according to actual torque
Power supply	50HZ, ~220V ± 10%, 50 ± 1Hz, must be well grounded
Compressed air	0.4Mpa (4KG) controlled by pneumatic regulating valve
Swing frequency	100 times / minute (about 1.7HZ)
Ambient temperature	normal temperature -40 ºC, relative humidity less than 80%, no corrosive gas in the air
Weight	about 250kg
Power	600W
Dimensions	540 mm* 560 mm* 1120mm
