• Model NO.：HD-R811-1
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Temperature Measurement Range：Room Temperature-200 ºC
• Temperature Measurement Accuracy：100~200 ºC,≤ ± 0.3 ºC
• Equipment Weight：Approx. 250kg
• Dimensions：540 mm× 560 mm× 1120mm
• Category：Special Instruments for Rubber Industry
• Temperature Display Range：0~200 ºC
• Transport Package：Strong Plywood Case
• Specification：ASTM, ISO, GB standard
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-R811-1 Control Computer Control Weight 500-1000Kg Power Source AC220V Temperature Measurement Range Room Temperature-200 ºC Temperature Measurement Accuracy 100~200 ºC,≤ ± 0.3 ºC Equipment Weight Approx. 250kg Dimensions 540 mm× 560 mm× 1120mm Category Special Instruments for Rubber Industry Temperature Display Range 0~200 ºC Transport Package Strong Plywood Case Specification ASTM, ISO, GB standard Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

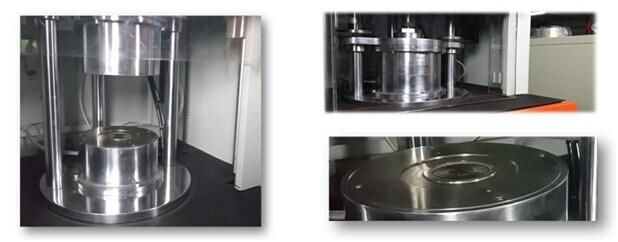

Touch Screen Control Rotorless Rheometer for Rubber / Plastic

Product Introduction:
The rotorless vulcanization instrument is the most widely used instrument in the rubber processing industry to control the quality of the rubber, rapid inspection and basic research on rubber. It provides accurate data for the optimal formula combination of rubber, and can accurately measure the scorch time, positive vulcanization time, vulcanization Index and parameters such as maximum and minimum torque.

The vulcanization instrument includes: host, computer, temperature measurement, temperature control, data acquisition and processing, sensors and electrical interlock. The measurement and temperature control circuit consists of a measurement and control module, platinum resistance, and heater. It can automatically track the changes of the power grid and the ambient temperature, and automatically modify the PID parameters to achieve the purpose of rapid and accurate temperature control.

The data acquisition system and the electromechanical chain complete the automatic detection of the torque signal of the rubber vulcanization process and automatically display the temperature value and set value in real time. After vulcanization is completed, automatic processing, automatic calculation, printing vulcanization curve and process parameters. Show curing time and curing torque. The computer displays the vulcanization process in real time, and the change process of "temperature" and "time-torque" can be clearly seen from above.

Product Features:
1. High temperature control precision and wide range. (± 0.3 ºC)
2. Clock programming function. (Setting and modification time)
3. Advanced technology switching power supply, wide voltage range.
4. Imported integrated circuits and control components.
5. All Chinese and English display.
6. Comply with the requirements of GB / T16584 (Testing the vulcanization characteristics of rubber with a rotorless vulcanizer) and ISO6502.

This type of vulcanization instrument is more stable, more accurate, cheaper, and more functional than other models. It is the best instrument for testing rubber properties.

Standard Parameters:

Item	Parameter
Equipment alias	Sulphurometer,rotorless sulphur transformer, rotorless vulcanization test instrument
Executive standard	ASTMD5289-95 ISO6502-1999 (E) GB / T16584-1996
Temperature measurement range	Room temperature-200 ºC
Temperature measurement accuracy	100~200 ºC,≤ ± 0.3 ºC
Temperature stability	100~200 ºC,≤ ± 0.3 ºC
Setting range	0~200 ºC; setting minimum unit:0.1 ºC
Temperature display range	0~200 ºC; display resolution:0.1 ºC
Setting time range	0~200 minutes; setting minimum unit:1 minute
Automatic range switching	automatically increase according to actual torque
Power supply	50HZ, ~220V ± 10%, 50 ± 1Hz, must be well grounded
Compressed air	0.4Mpa (4KG) controlled by pneumatic regulating valve
Swing frequency	100 times / minute (about 1.7HZ)
Ambient temperature	normal temperature -40 ºC, relative humidity less than 80%, no corrosive gas in the air
Weight	about 250kg
Power	600W
Dimensions	540 mm* 560 mm* 1120mm

The Introduction Of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    --24 Hours online service for your consult.
    --Help choose right model,and a series of service,person,advise.
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc



Customer Feedback:



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
