• Model NO.：HD-A523
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC220V
• Product Name：Corrugated Box Inclined Surface Impact Testing Equ
• Load (Kg)：100, 200, 300, 500, 600
• Design Criteria：Ista
• Delivery Time：20 Days After Receive The Deposit
• Impact Board Dimension (mm)：1600* 2000,
• Maximum Slide Length (mm)：1600 (Can Be Designed Accord to Customer′s Require
• Impact Velocity Range (M/S)：1.305~2.608, 1.305~2.334
• Pulley Platform Dimension (mm)：1000*1000
• Supply Voltage：Three Phase 380V, 50,60Hz
• Work Environment：Temperature 0~40° C, Humidity ≤ 80%
• Transport Package：Strong Wooden Case
• Specification：ISTA-1E
• Trademark：Haida
• Origin：China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-A523 Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC220V Product Name Corrugated Box Inclined Surface Impact Testing Equ Load (Kg) 100, 200, 300, 500, 600 Design Criteria Ista Delivery Time 20 Days After Receive The Deposit Impact Board Dimension (mm) 1600* 2000, Maximum Slide Length (mm) 1600 (Can Be Designed Accord to Customer′s Require Impact Velocity Range (M/S) 1.305~2.608, 1.305~2.334 Pulley Platform Dimension (mm) 1000*1000 Supply Voltage Three Phase 380V, 50/60Hz Work Environment Temperature 0~40° C, Humidity ≤ 80% Transport Package Strong Wooden Case Specification ISTA-1E Trademark Haida Origin China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

          ISTA Simulated Corrugated Box Inclined Surface Impact Testing Equipment

The main technique parameters:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Item	specification
Load (kg)	200
Impact area (mm)	1630×2000
Max. slide length (mm)	3000
Impact velocity range (m/s)	Max3.1m/S (adjustable)
Impact velocity error	≤±5%
Impact times	0~9,999 times
Scooter table size (mm)	1000×1200
Max. packaged dimension (mm)	910×760
Angle between guild rail and horizontal(°)	Max.13(adjustable)
Power	3-phase 380V,50/60Hz
Working environmental	Temperature 0~40ºC, Humidity ≤80%(no dew)
Control system	micro-processor single chip
Weight (approx.)	1.3T

Product description:
Usage: Inclined Impact Testing Machine is simulated the impact strength of packaging in the real circumstance of transport. Inclined Impact Testing Machine is apply to the pile up of goods, slide of electromechanical, loading of the engine, transportation of product. This product is also can supply as the test machine to scientific research institution, college, packaging technique test centre, packaging material manufacture and foreign trade or transport department.



Function and Characters:
1. Flexible location motor-driven pulley. It is easy to fix and achieve the change of speed.
2. The height of slope is relatively low so that is benefit of fix the specimen; Strong impact resistance board, guarantee the fastness of the structure.
3. The pulley can be adjusted to horizontal in order to fix the specimen for customer. The angular adjustment can be driven by cylinder which is flexible and convenience.
4. In order to keep the test staff completely safe the tester support remote control operating.
5. The customer only need to fix the machine on the ground when stalling, no other complicated operation convenient for test.

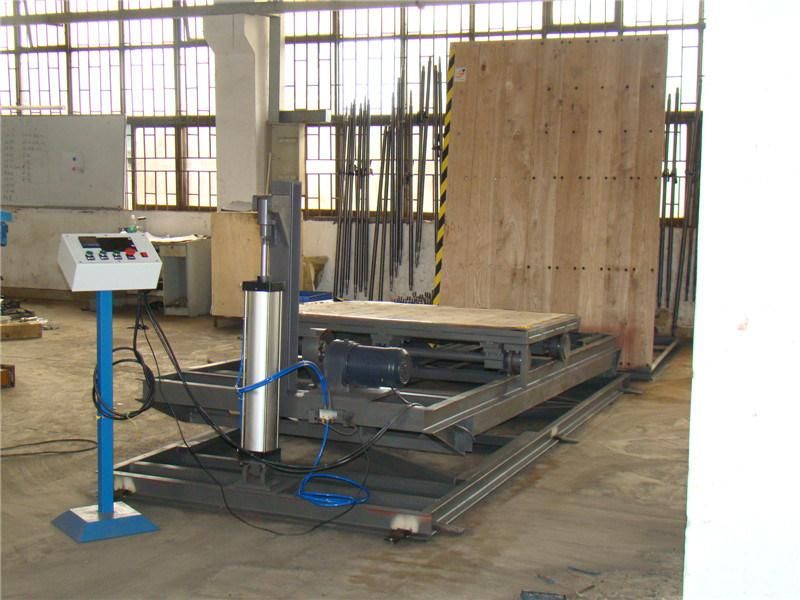

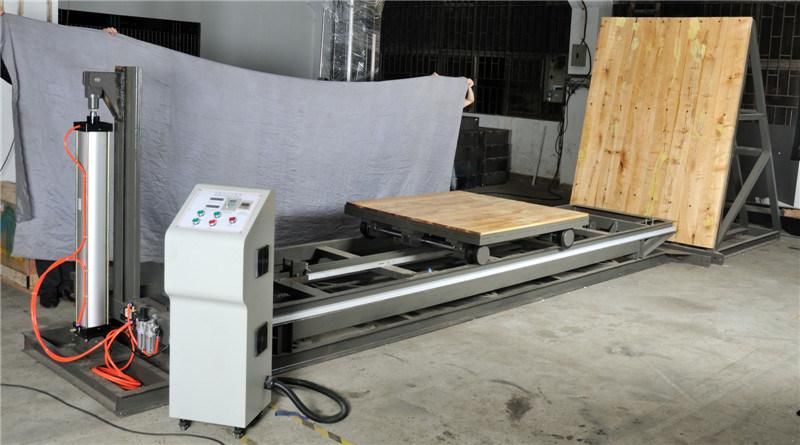

Inclined Impact Testing Machine
