• Model NO.：HD-A500
• Power Source：AC220V
• Measurement Range：0~10000 Mn
• Curvature：5~30°
• Grippers Speed：38 ± 0.2 mm
• Sample Width：350× 350× 1100 mm
• Sample Length：70 mm (The Best Length Is 76 mm)
• Specimen Max. Size (L* W* H)：1000*1000* 800 mm
• Outside Dimension (L*W* H)：330* 340* 230 mm
• Test Length：5, 10, 15, 20.25, 50 mm
• Indication Error：± 1%
• Transport Package：Strong Wooden Case
• Specification：ISO5628
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. HD-A500 Power Source AC220V Measurement Range 0~10000 Mn Curvature 5~30° Grippers Speed 38 ± 0.2 mm Sample Width 350× 350× 1100 mm Sample Length 70 mm (The Best Length Is 76 mm) Specimen Max. Size (L* W* H) 1000*1000* 800 mm Outside Dimension (L*W* H) 330* 340* 230 mm Test Length 5, 10, 15, 20.25, 50 mm Indication Error ± 1% Transport Package Strong Wooden Case Specification ISO5628 Trademark HAIDA Origin China HS Code 9024109000 Production Capacity 1000PCS/Year

Product Description

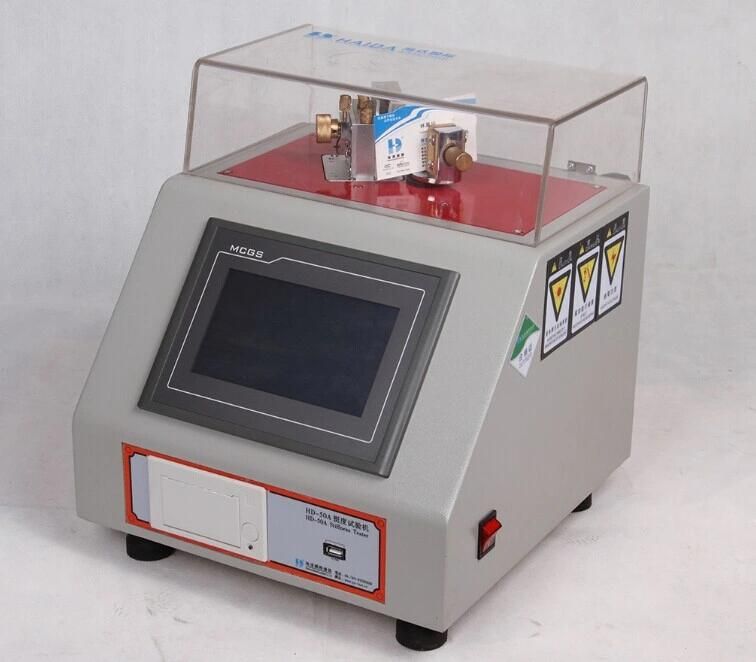

                                   Paper bending stiffness Testing Machine


Specification:

Stiffness Test Equipmentis used to test the stiffness of paper and cardboard, especially suitable for the determination of the stiffness of paper and paperboard with low quantitative or thickness less than 1 mm.

Main Parameters:


Measurement range	0~10000 mN
Indication Error	±1%
Bending length	5, 10, 15, 20, 25, 50 mm
Bending angle	7.5°, 15°
Grippers Speed	200 ± 20/min
Sample Width	38 ± 0.2 mm
Sample Length	70 mm (The best Length is 76 mm)
Display	Touch Screen Display
Outside Dimension	(L×W×H) 330×340×230 mm
Weight	20 Kg
Power	Single phase, 220V, 50/60Hz
Standard	ISO 2493-1, TAPPI T 556

(The table parameters for the company Standard Model parameters, we support customer customization parameters)



The introduction of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Customer Feedback


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
