• Model NO.：TH8601A
• Product Name：Th8601A Four-Terminal Wire Tester Cable Test Harne

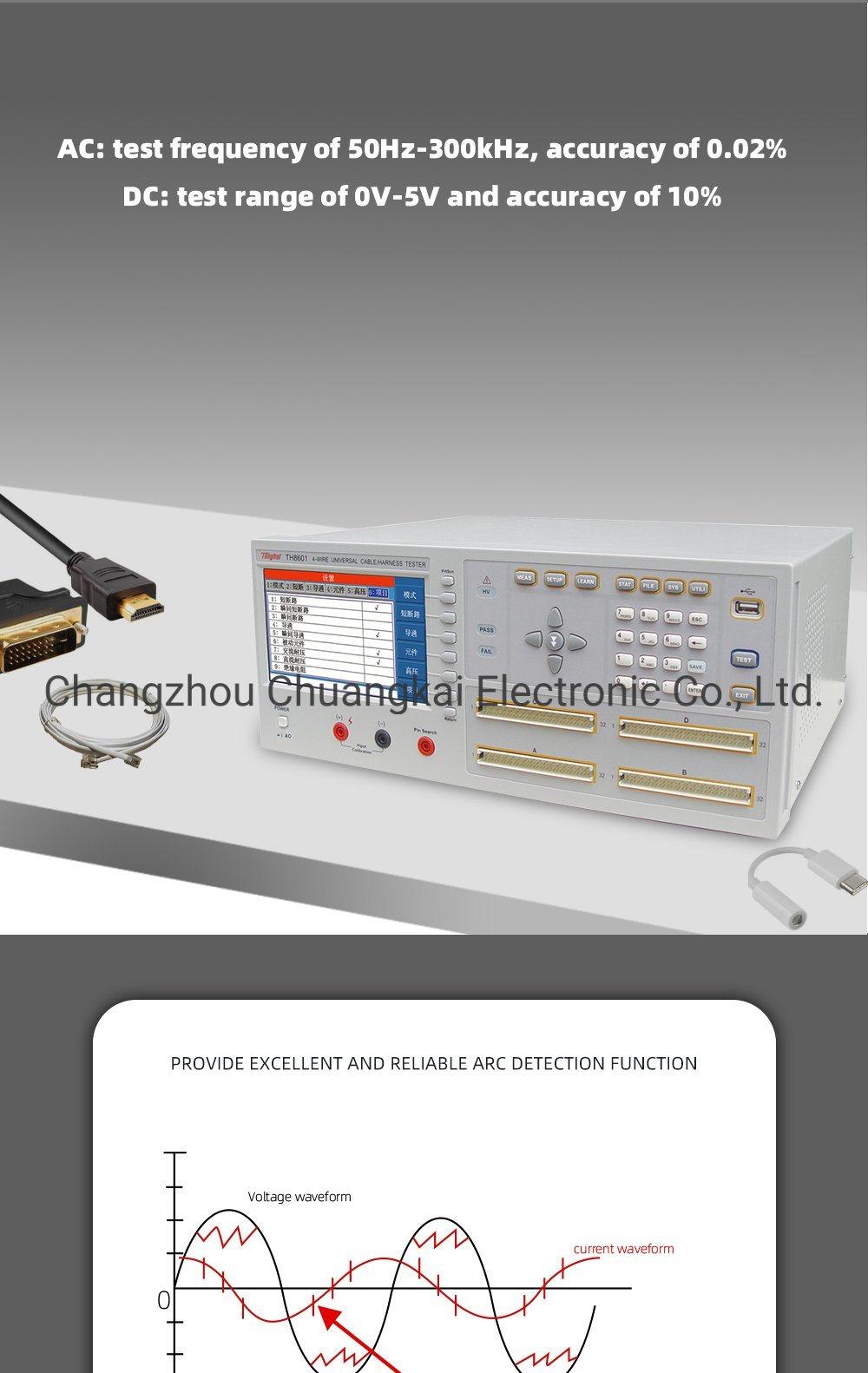

• AC：Test Frequency of 50Hz-300kHz, Accuracy of 0.02%
• DC：Test Range of 0V-5V and Accuracy of 10%

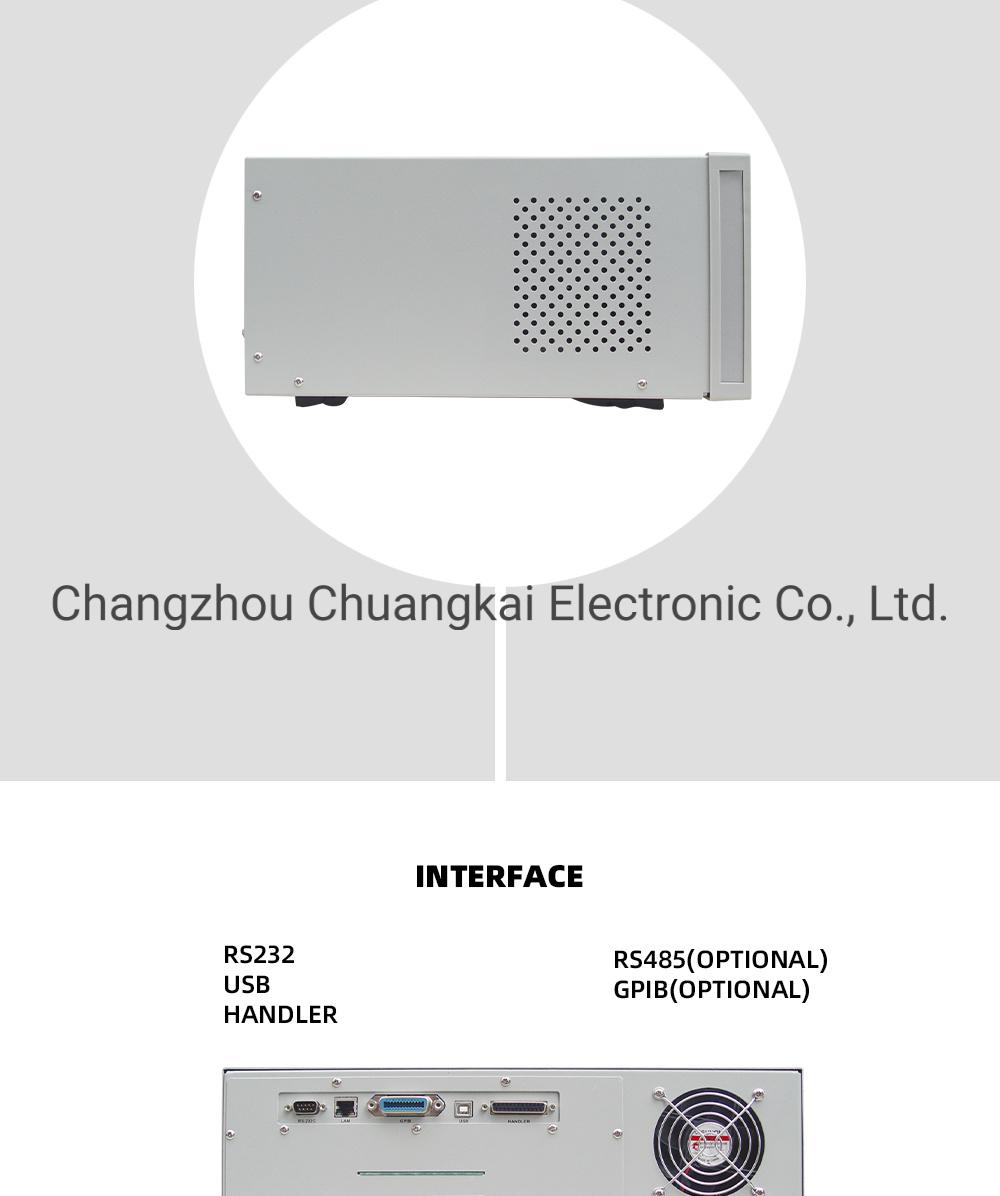

• Interface：RS232, USB, LAN,a Handler, RS485 (Option), Gpib (O
• Transport Package：Carton
• Specification：65x60x38cm
• Trademark：CKT
• Origin：China
• HS Code：9030332000
• Production Capacity：3000 Sets Per Month
• Package size per unit product：65.00cm * 60.00cm * 38.00cm
• Gross weight per unit product：20.000kg
• Lead Time：15 days (1 - 1 set) To be negotiated ( > 1 set)

Overview Product Description

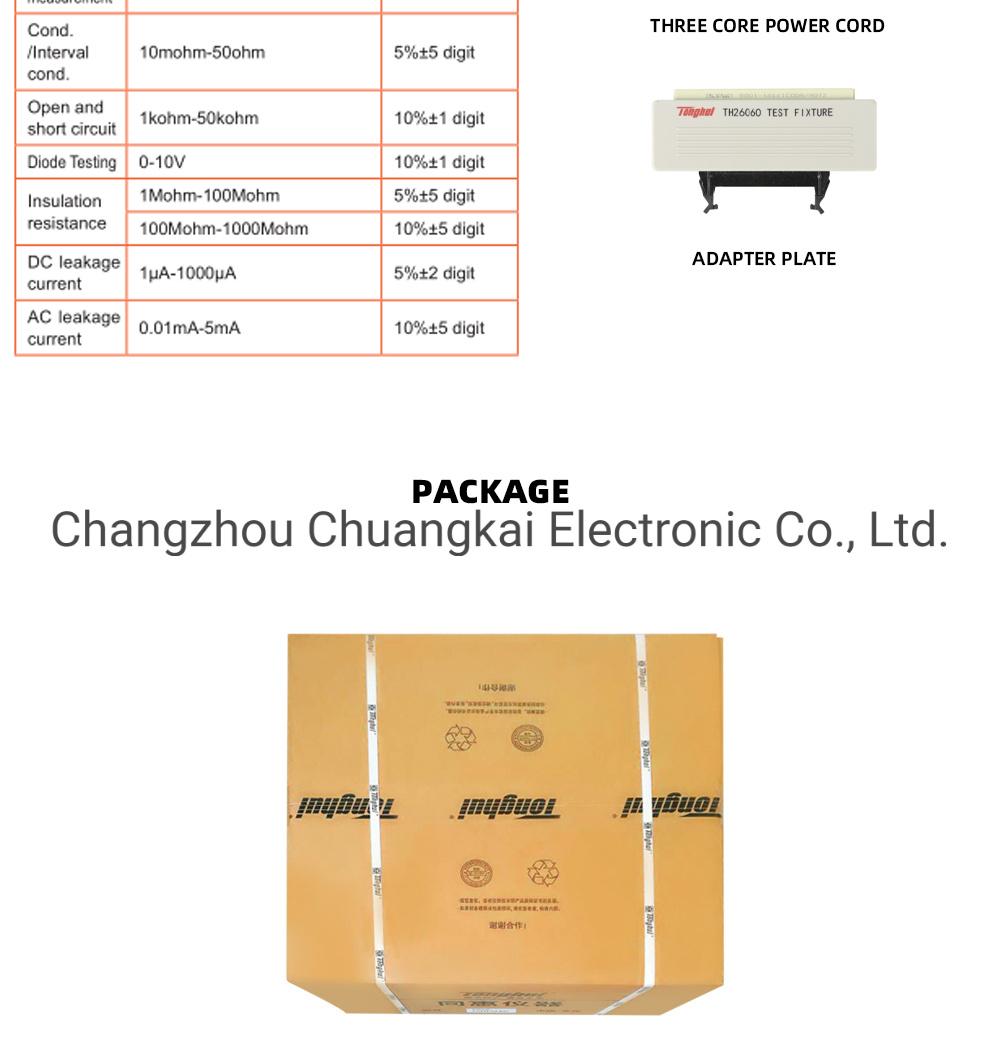

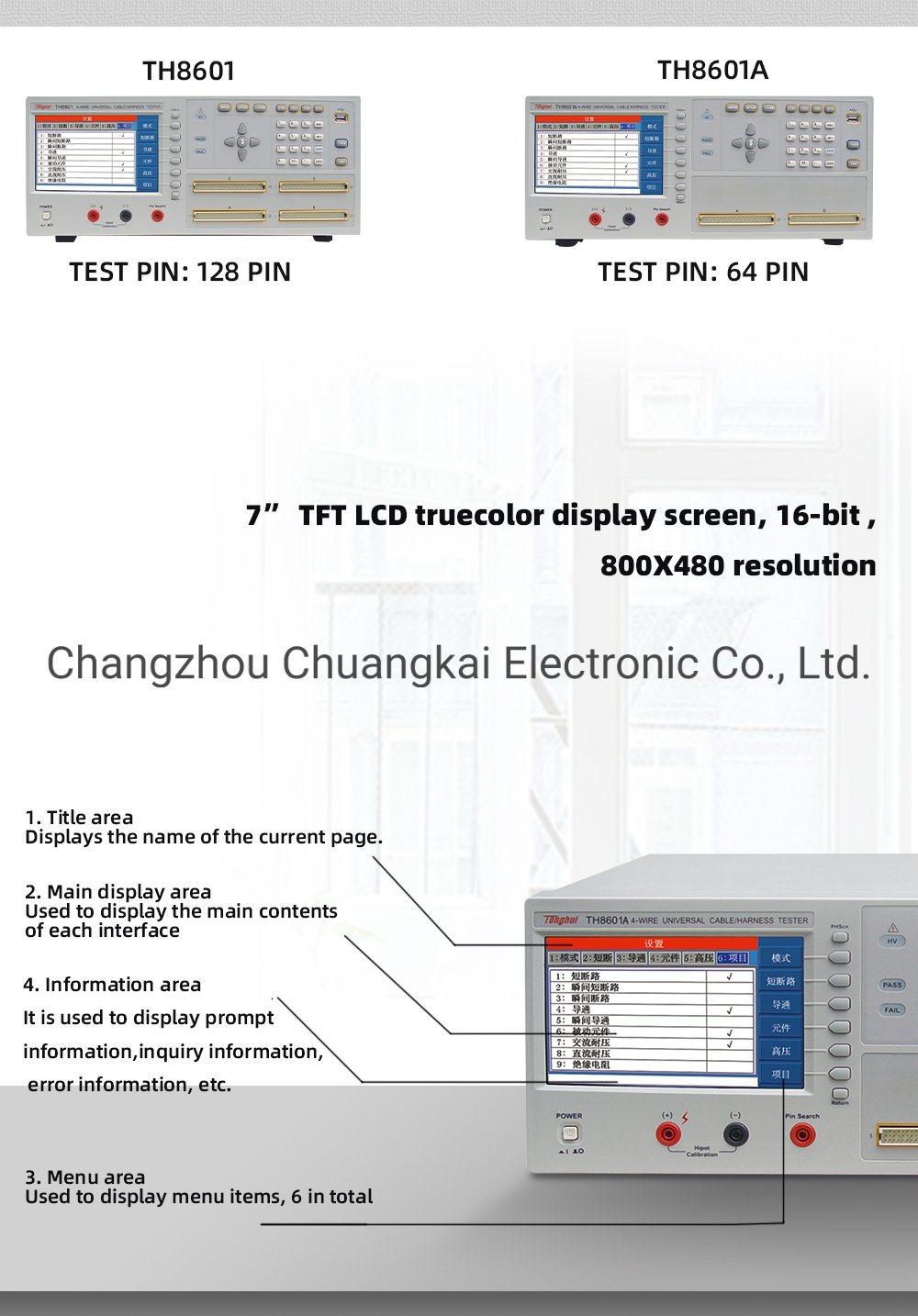

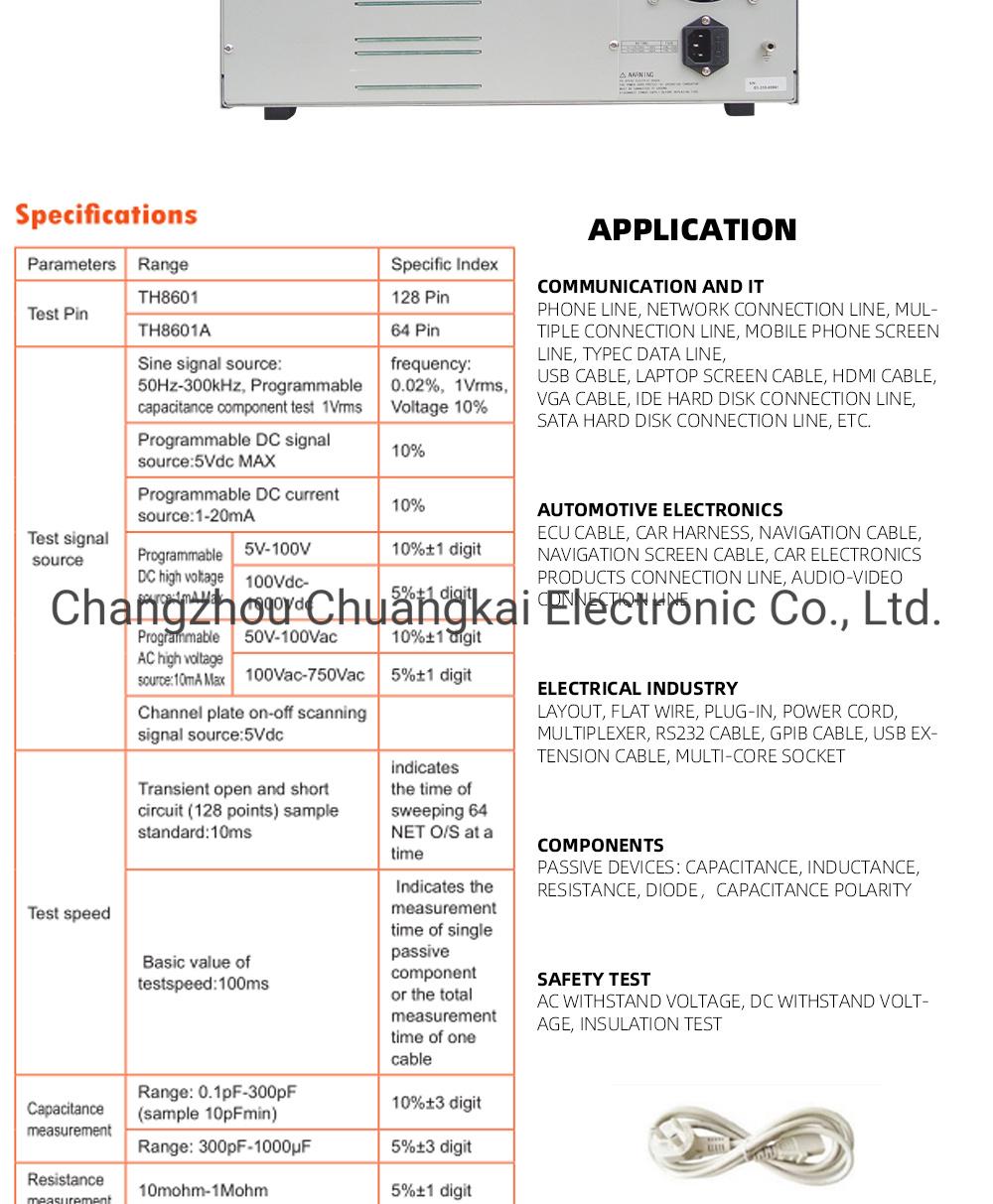

ModelTH8601TH8601ATest Pin128 Pin64 PinTest Signal  SourceSine Signal Source:50Hz-300kHz, ProgrammableCapacitance Component Test  1VrmsFrequency: 0.02% 1Vrms, Voltage 10%Programmable DC Signal Source:5Vdc MAX10%Programmable DC Current Source:1-20mA10%Programmable DC High Voltage Source:1mA Max5V-100V10%±1 digit100Vdc-1000Vdc5%±1 digitProgrammable AC High Voltage Source:10mA Max50V-100Vac10%±1 digit100Vac-750Vac5%±1 digitChannel Plate on-off scanning Signal Source:5Vdc Test SpeedTransient Open and Short Circuit (128 points) Sample Standard:10msIndicates the time of sweeping 64 NET O/S at a time Basic Value of Test Speed:100msIndicates the measurement time of single passive component or the total measurement time of one cableCapacitance MeasurementRange: 0.1pF-300pF(sample 10pFmin)10%±3 digitRange: 300pF-1000μF5%±3 digitResistance Measurement10mohm-1Mohm5%±1 digitCond./Interval cond.10mohm-50ohm5%±5 digitOpen andShort Circuit1kohm-50kohm10%±1 digitDiode Testing0-10V10%±1 digitInsulation Resistance1Mohm-100Mohm5%±5 digit100Mohm-1000Mohm10%±5 digitDC Leakage Current1μA-1000μA5%±2 digitAC Leakage Current0.01mA-5mA10%±5 digit Detailed Photos








Packaging & Shipping

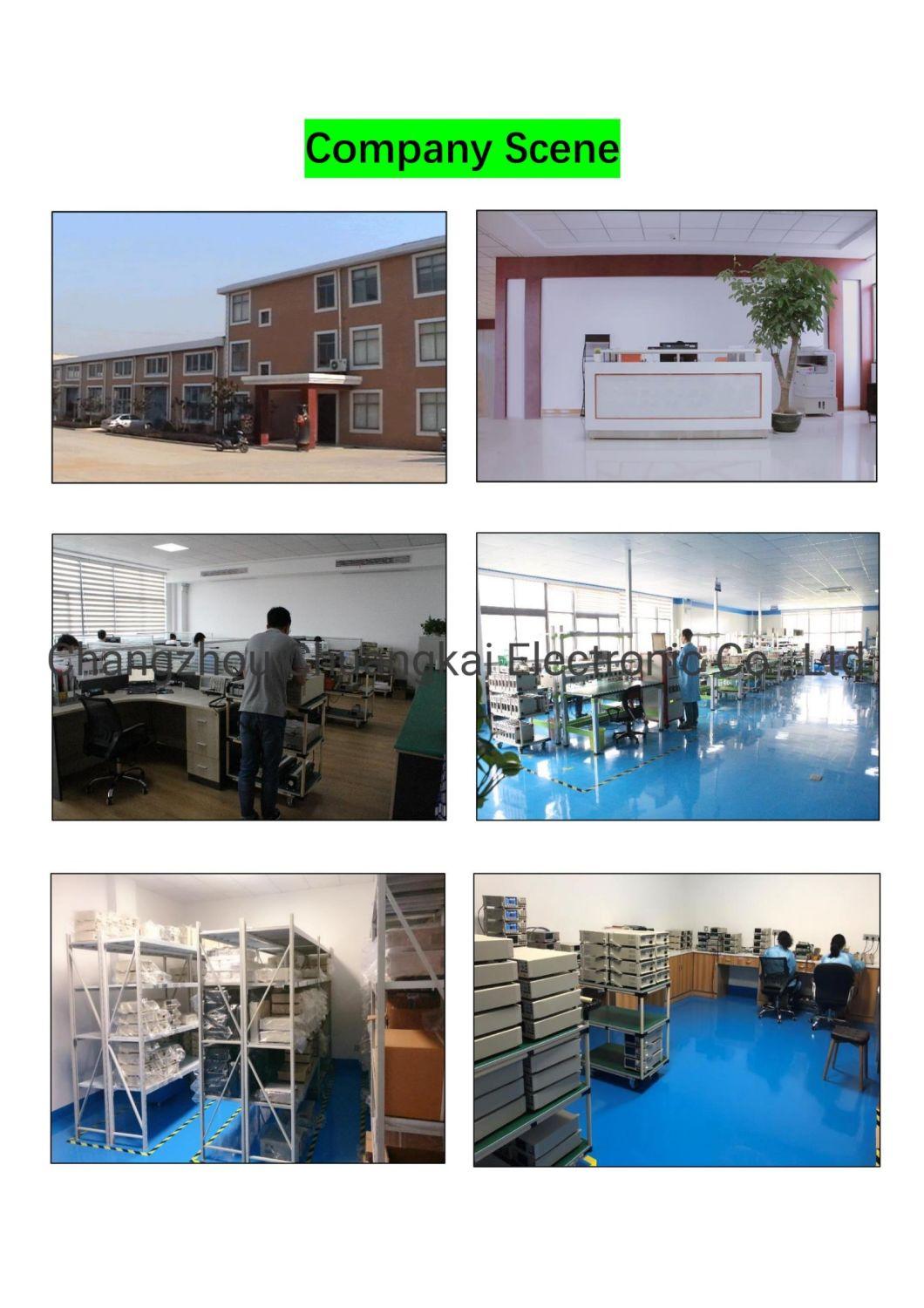

Company Profile

https://ckt2017.en.made-in-china.com/product-list-1.html

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.
