• Model NO.：TH9320-S8A
• Voltage Rising Time：0.1s - 999.9s
• Test Time Setting (AC/DC)：0.2s -999.9s
• Waiting Time (IR)：0.2s - 999.9s

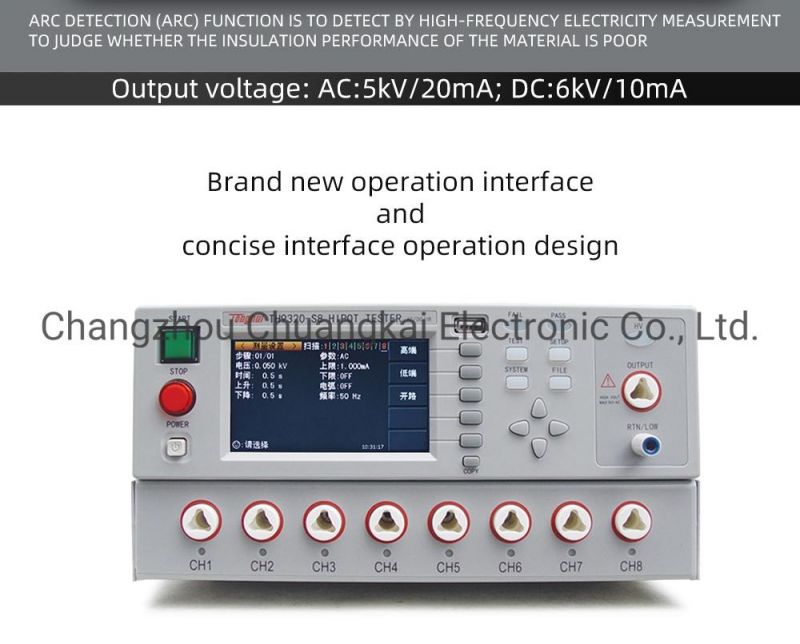

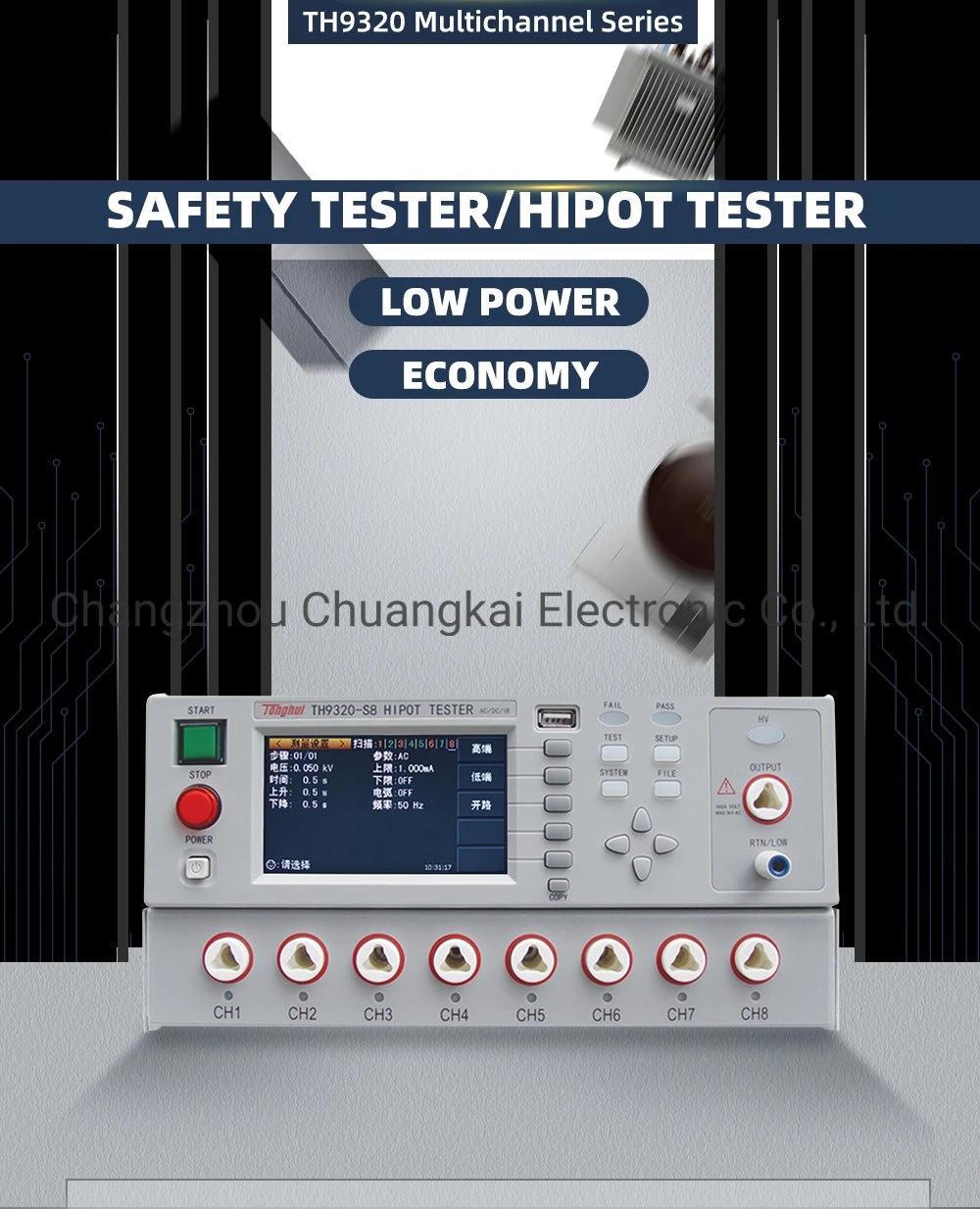

• Product Name：Th9320-S8a AC&DC Hipot Tester with Contact Check

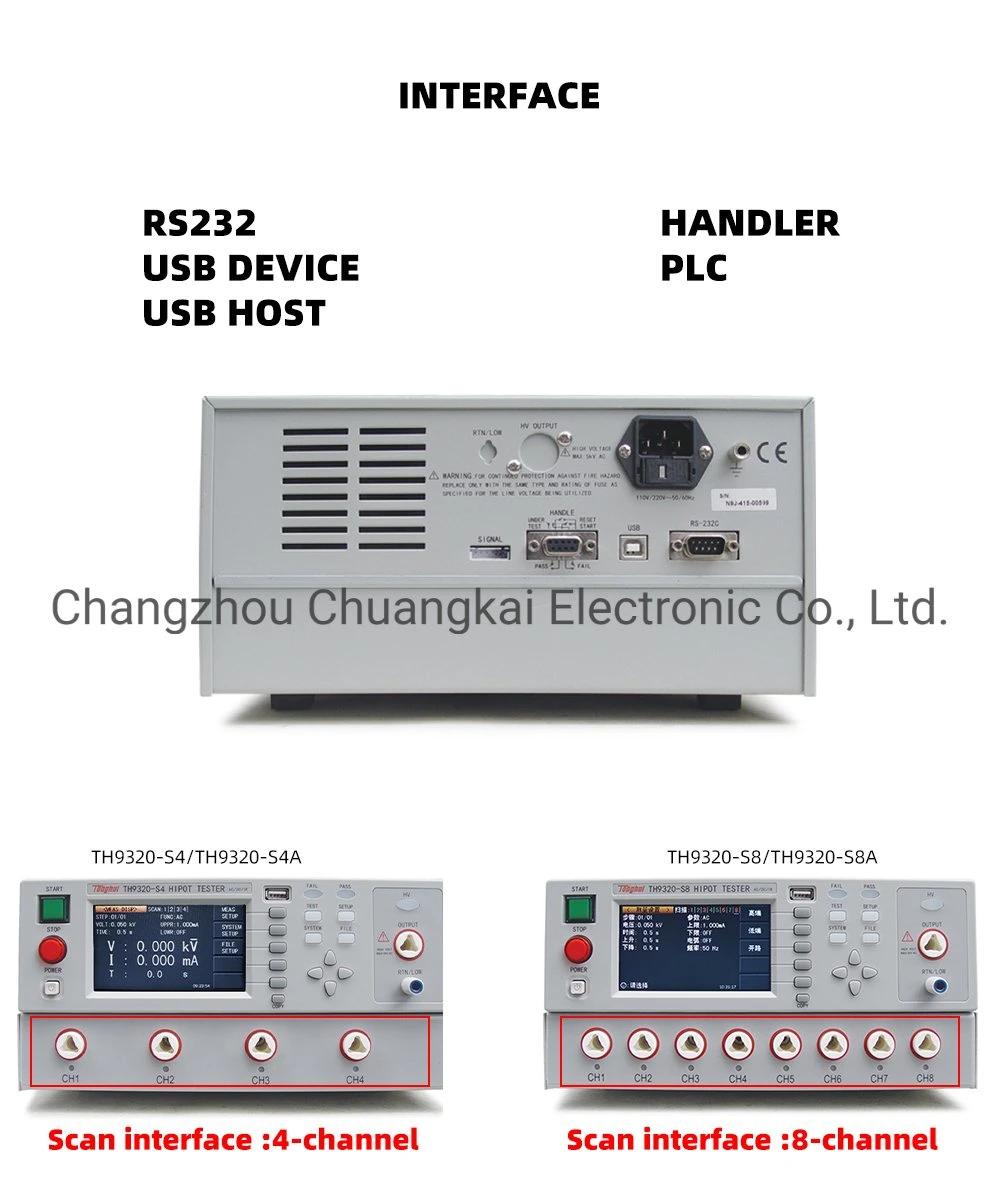

• Interface：Handler, RS232, Usbdrv(PC Interface), Usbhost(USB
• Discharge Function：Discharge After Test Ends (Dcw)
• Resistance Test Range：1mohm - 9999mohm
• Dimension (Wxhxd) and Weight：280mmx138mmx428mm,18kg
• Scan Interface：8 Channels

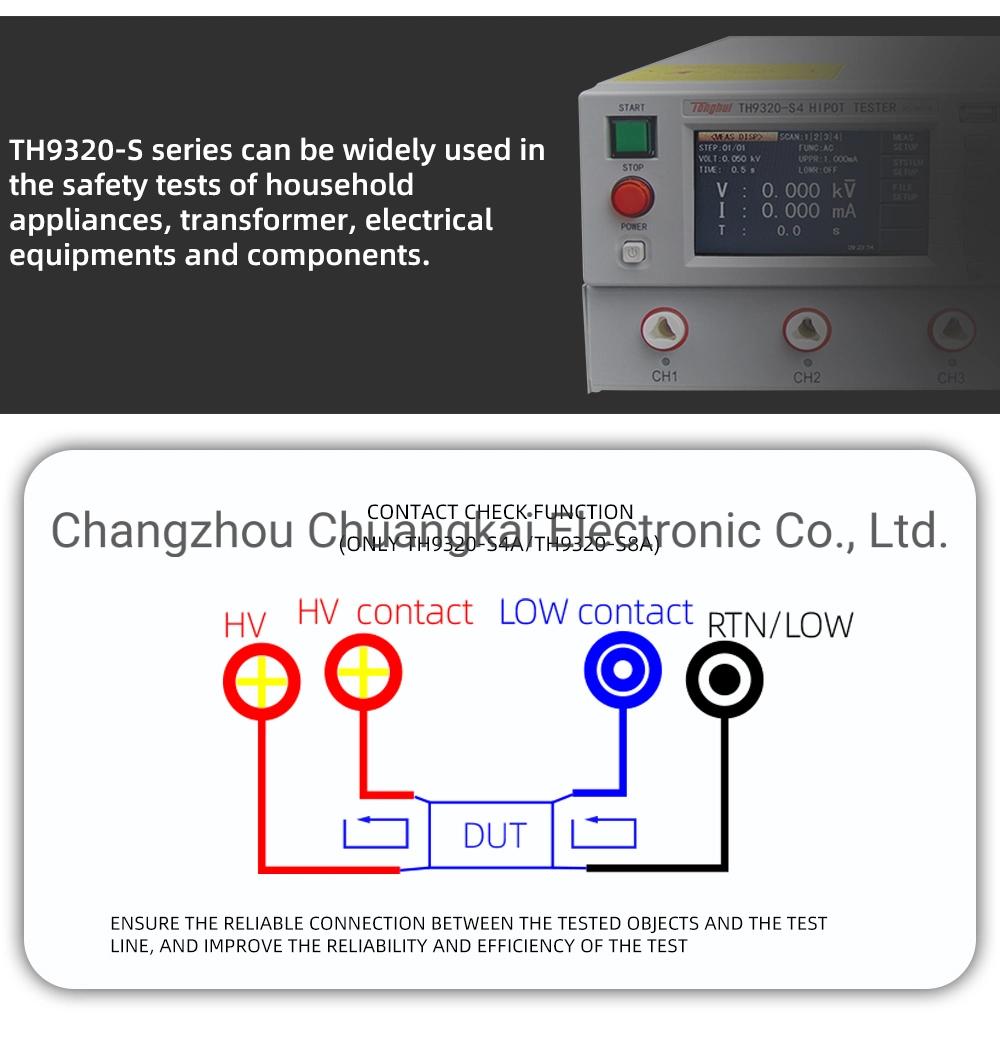

• Contact Check Function：Yes
• Transport Package：Carton
• Specification：60x45x32cm
• Trademark：CKT
• Origin：China
• HS Code：9030332000
• Production Capacity：3000 Sets Per Month
• Package size per unit product：60.00cm * 45.00cm * 32.00cm
• Gross weight per unit product：18.000kg
• Lead Time：10 days (1 - 1 set) To be negotiated ( > 1 set)

https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html

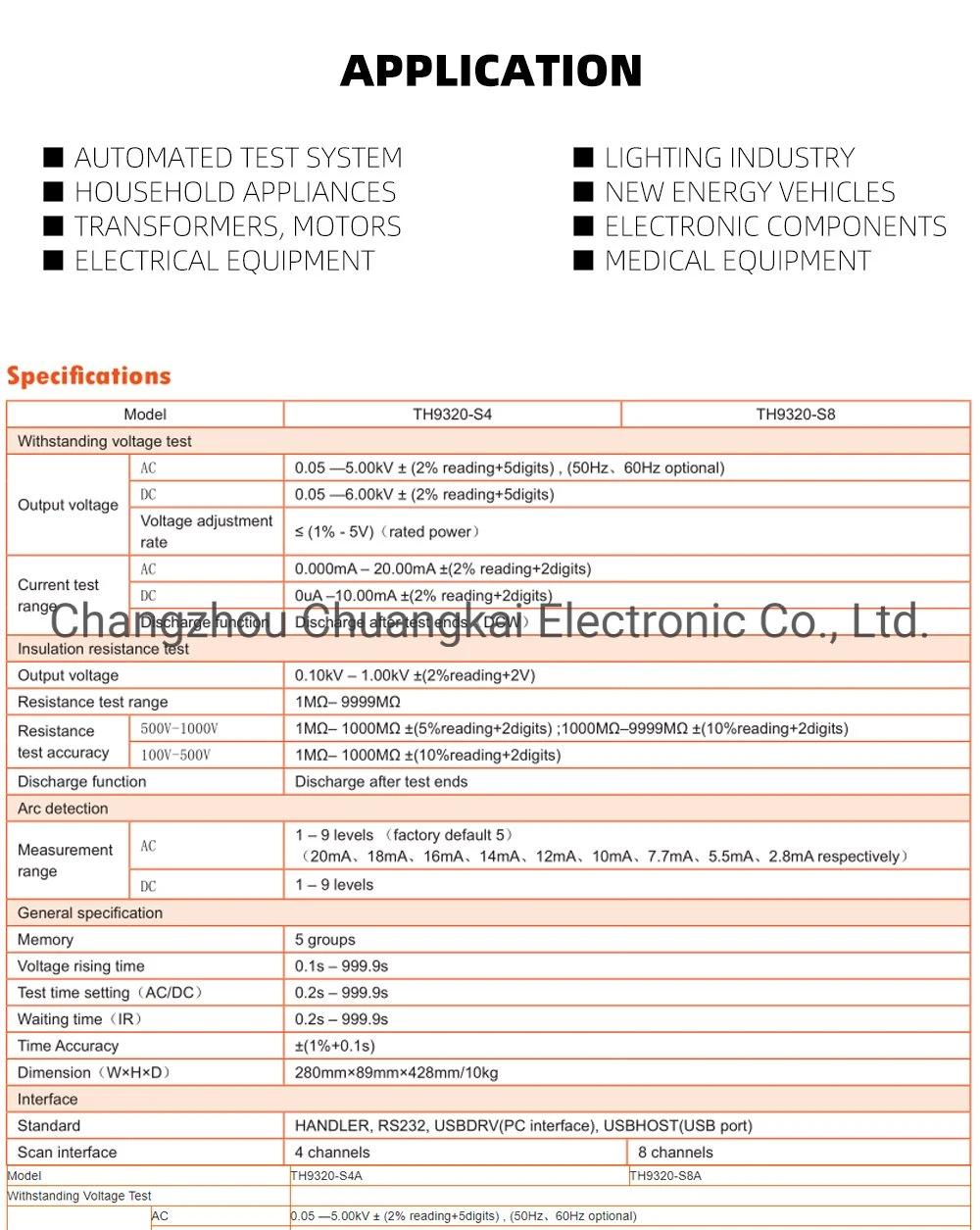

ModelTH9320-S4ATH9320-S8AWithstanding Voltage Test Output VoltageAC0.05 -5.00kV ± (2% reading+5digits) , (50Hz,60Hz optional)DC0.05 -6.00kV ± (2% reading+5digits)Voltage Adjustment Rate≤ (1% - 5V)(rated power)Current Test RangeAC0.000mA - 20.00mA ±(2% reading+2digits)DC0uA -10.00mA ±(2% reading+2digits)Discharge FunctionDischarge after test ends(DCW)Insulation Resistance Test Output Voltage0.10kV - 1.00kV ±(2%reading+2V)Resistance Test Range1MΩ- 9999MΩResistance Test Accuracy500V-1000V1MΩ- 1000MΩ ±(5%reading+2digits) ;1000MΩ-9999MΩ ±(10%reading+2digits)100V-500V1MΩ- 1000MΩ ±(10%reading+2digits)Discharge FunctionDischarge after test endsArc Detection Measurement RangeAC1 - 9 levels (factory default 5)(20mA,18mA,16mA,14mA,12mA,10mA,7.7mA,5.5mA,2.8mA respectively)DC1 - 9 levelsGeneral Specification Memory5 groupsVoltage Rising Time0.1s - 999.9sTest Time Setting(AC/DC)0.2s - 999.9sWaiting Time(IR)0.2s - 999.9sTime Accuracy±(1%+0.1s)Dimension(W×H×D)280mm×89mm×428mm/10kgInterface StandardHANDLER, RS232, USBDRV(PC interface), USBHOST(USB port)Scan Interface4 channels8 channelsContact Check FuntionYes Detailed Photos














Packaging & Shipping

https://ckt2017.en.made-in-china.com/contact-info.html

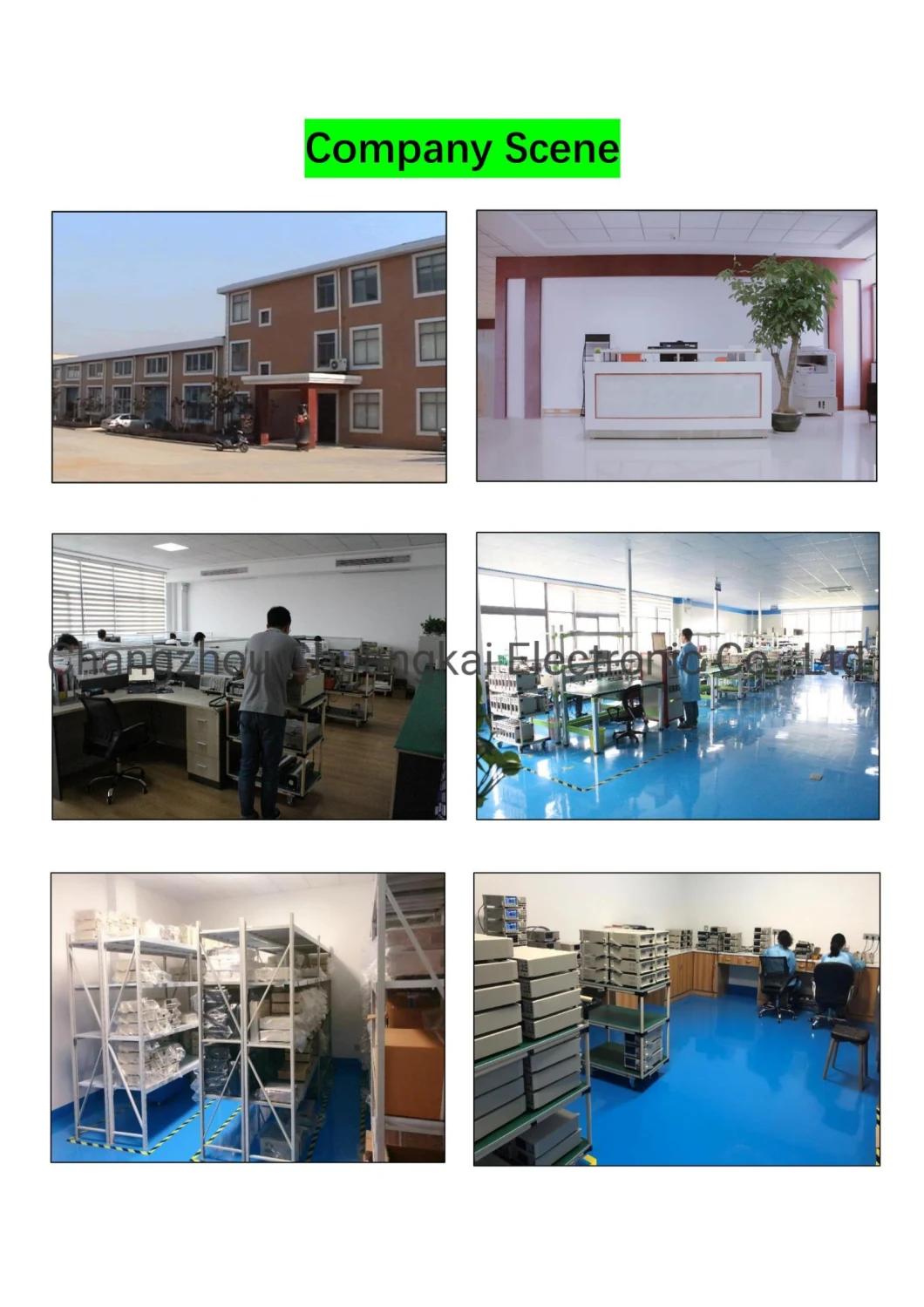

Company Profile

https://ckt2017.en.made-in-china.com/product-list-1.html

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.
