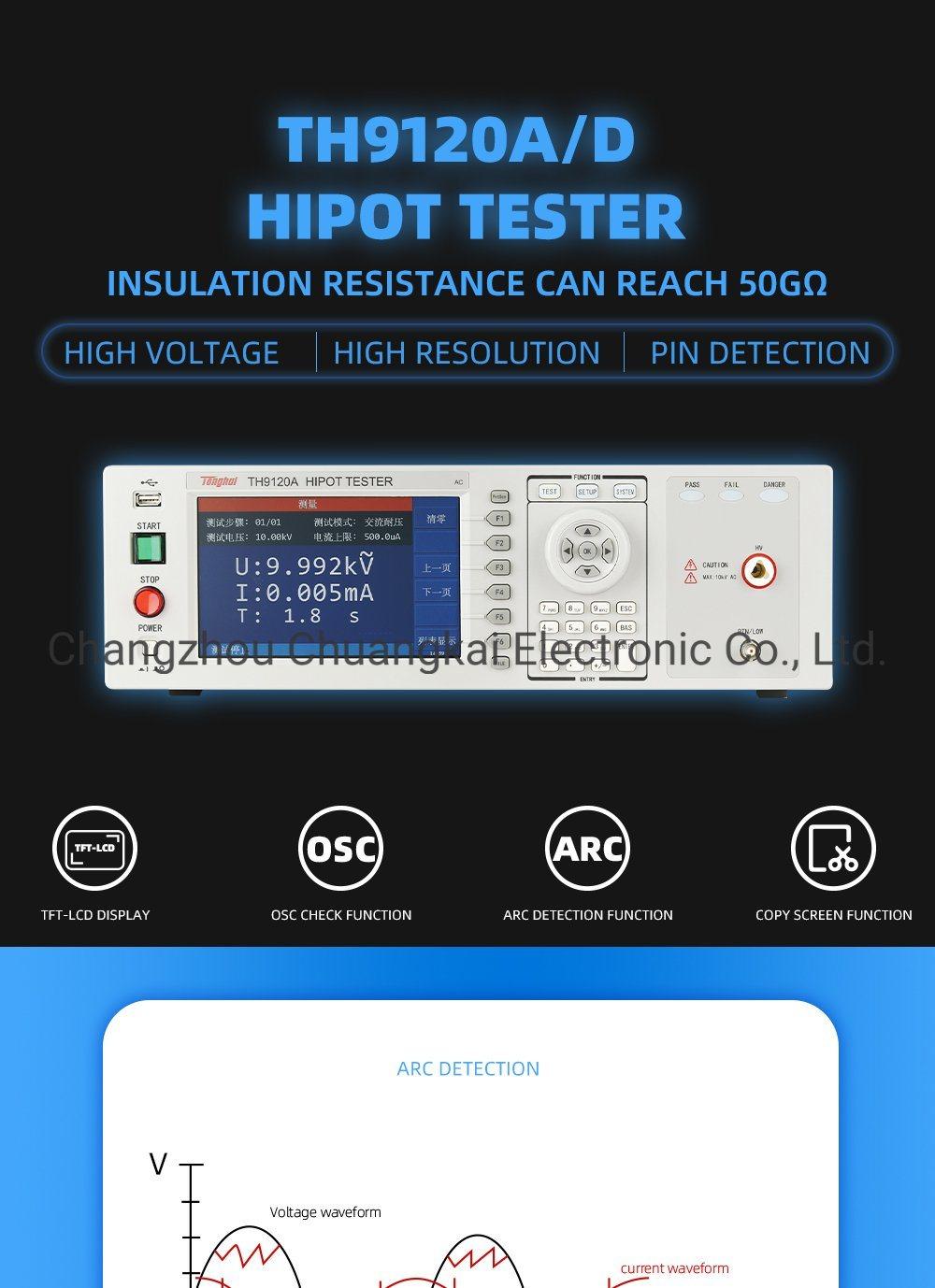

Th9120d DC/IR Safety Tester with Arc Detection Function
Changzhou Chuangkai Electronic Co., Ltd.- After-sales Service：Lifelong
- Warranty：1 Year
- Internal Memory：100 Files Can Be Stored and 50 Steps Can Be Edited
- Test Time：0.3-999s, 0 Means Continuous Test
- Rise Time：0.1-999s, 0 Means off
- Fall Time：0.1-999s, 0 Means off
Base Info
- Model NO.：TH9120D
- Waiting Time：0.1-999s, 0 Means off (DC Withstand Voltage Only)
- Resistance Test Range：0.1m Ohm-50.0g Ohm
- Dimension (mm) and Weight：430(W)X132(H)X500(D),21kg
- Alarm Indication：Pass: Short Sound, Green Light; Fail: Long Sound,

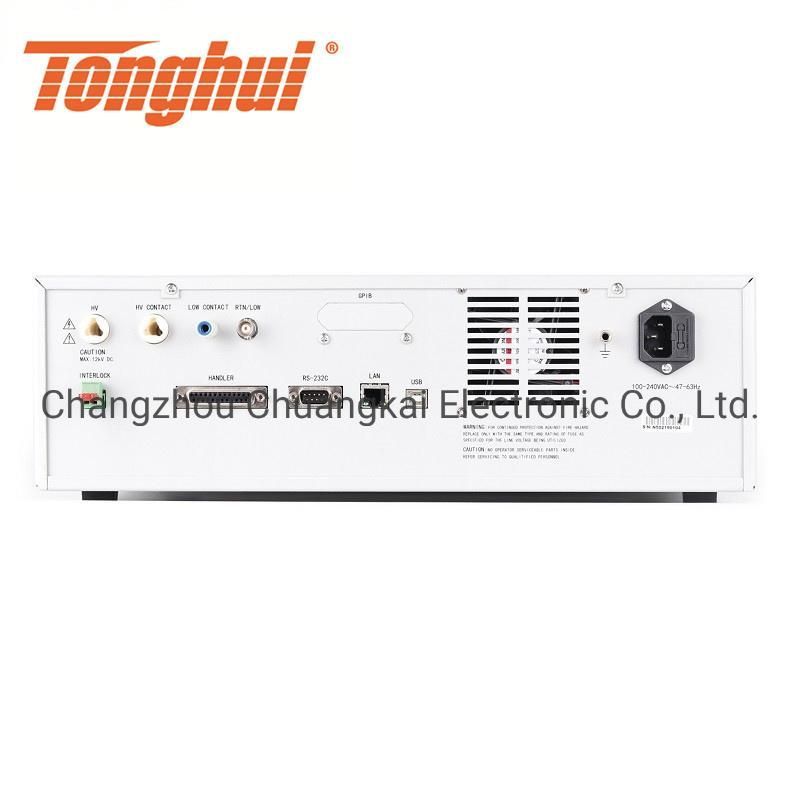

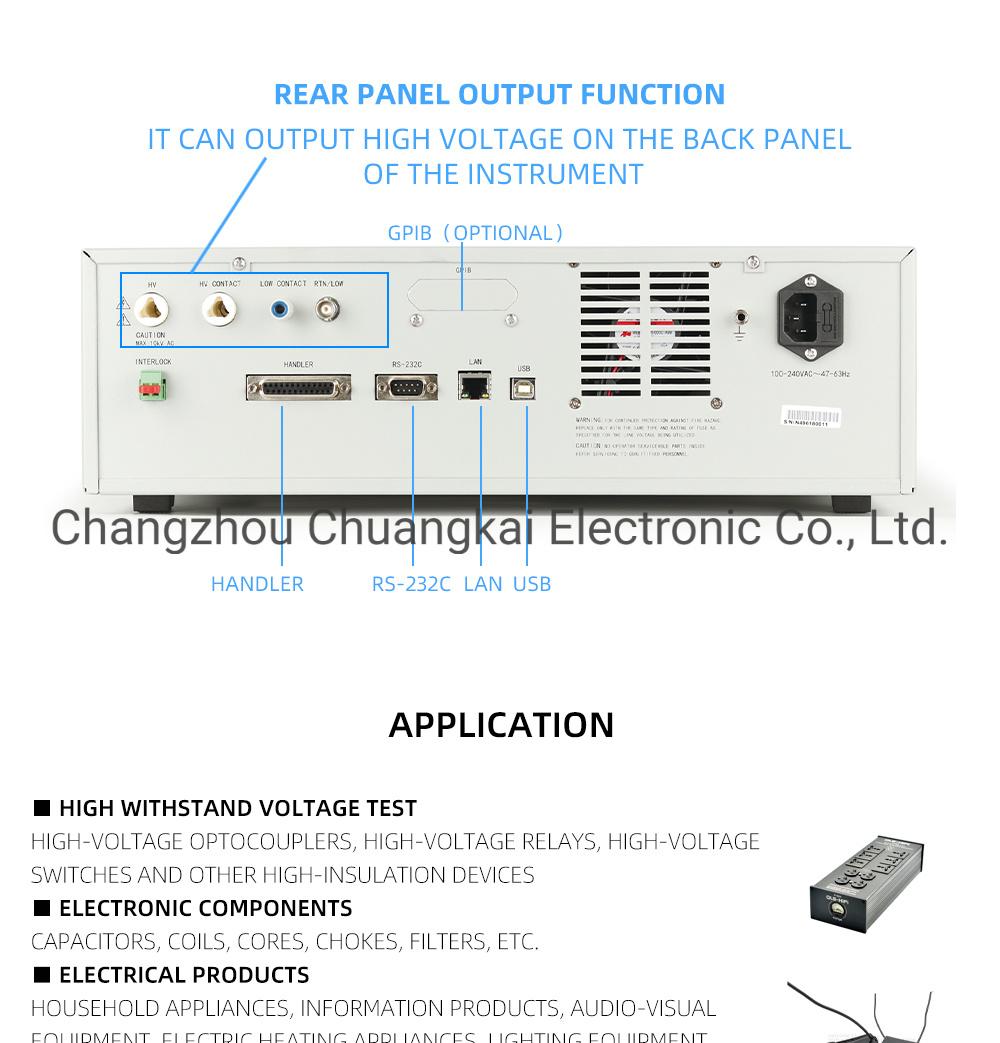

- Interface：RS232, USB Device, USB Host, LAN,Handler
- Test Mode：DC,IR
- Product Name：Th9120d DC,IR Safety Tester with Arc Detection
- Transport Package：Carton
- Specification：65x58x40cm
- Trademark：CKT
- Origin：China
- HS Code：9030332000
- Production Capacity：3000 Sets Per Month
Description

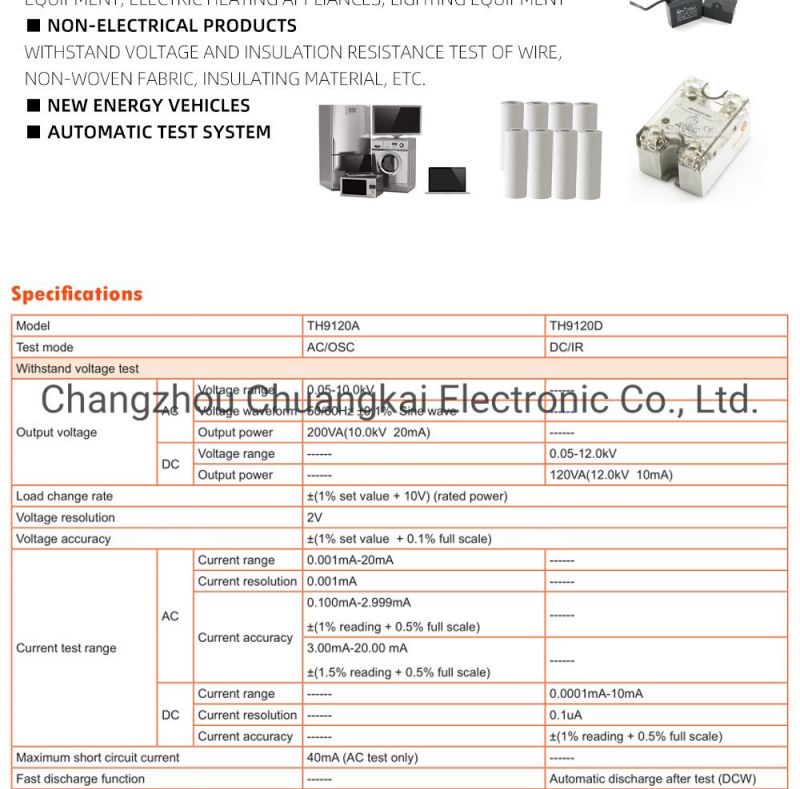

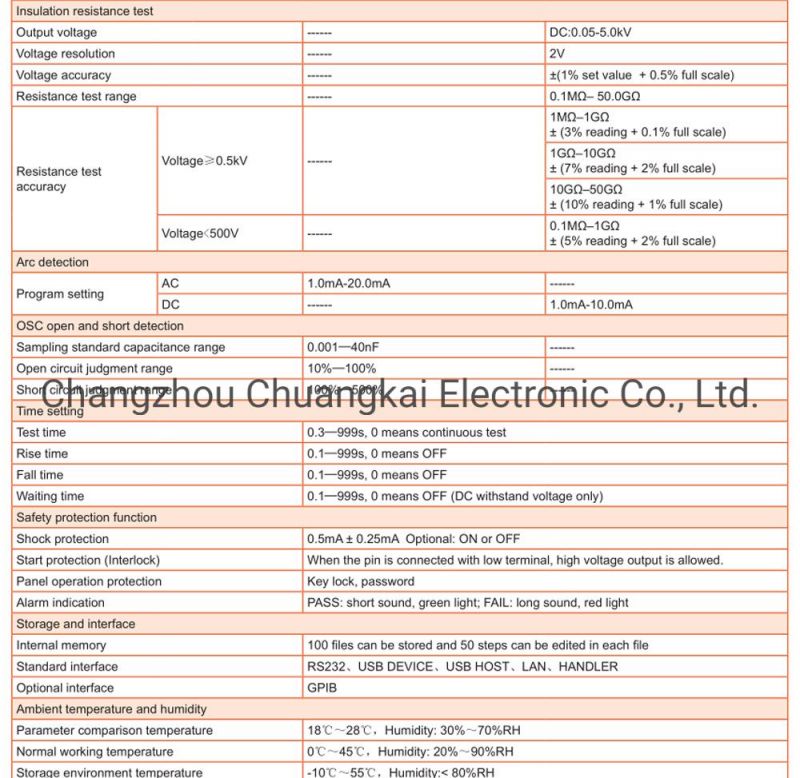

Model Company Profile https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.htmlTH9120A TH9120D Test Mode AC/OSC DC/IR Withstand Voltage Test Output Voltage AC Voltage Range 0.05-10.0kV ------ Voltage Waveform 50/60Hz ±0.1% Sine wave ------ Output Power 200VA(10.0kV 20mA) ------ DC Voltage Range ------ 0.05-12.0kV Output Power ------ 120VA(12.0kV 10mA) Load Change Rate ±(1% set value + 10V) (rated power) Voltage Resolution 2V Voltage Accuracy ±(1% set value + 0.1% full scale) Current Test Range AC Current Range 0.001mA-20mA ------ Current Resolution 0.001mA ------ Current Accuracy 0.100mA-2.999mA±(1% reading + 0.5% full scale) ------ 3.00mA-20.00 mA±(1.5% reading + 0.5% full scale) ------ DC Current Range ------ 0.0001mA-10mA Current Resolution ------ 0.1uA Current Accuracy ------ ±(1% reading + 0.5% full scale) Maximum Short Circuit Current 40mA (AC test only) ------ Fast Discharge Function ------ Automatic discharge after test (DCW) Insulation Resistance Test Output Voltage ------ DC:0.05-5.0kV Voltage Resolution ------ 2V Voltage Accuracy ------ ±(1% set value + 0.5% full scale) Resistance Test Range ------ 0.1MΩ- 50.0GΩ

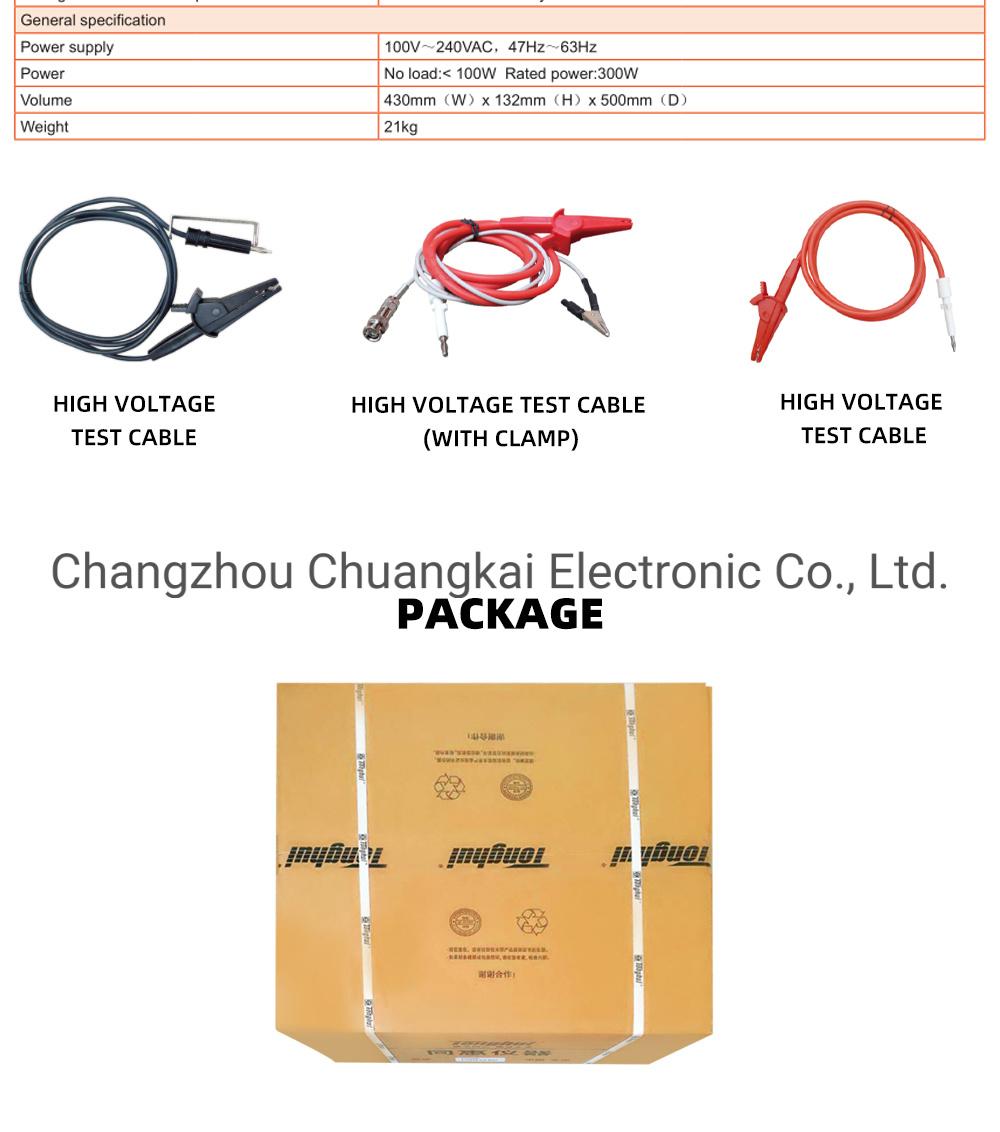

Packaging & Shipping

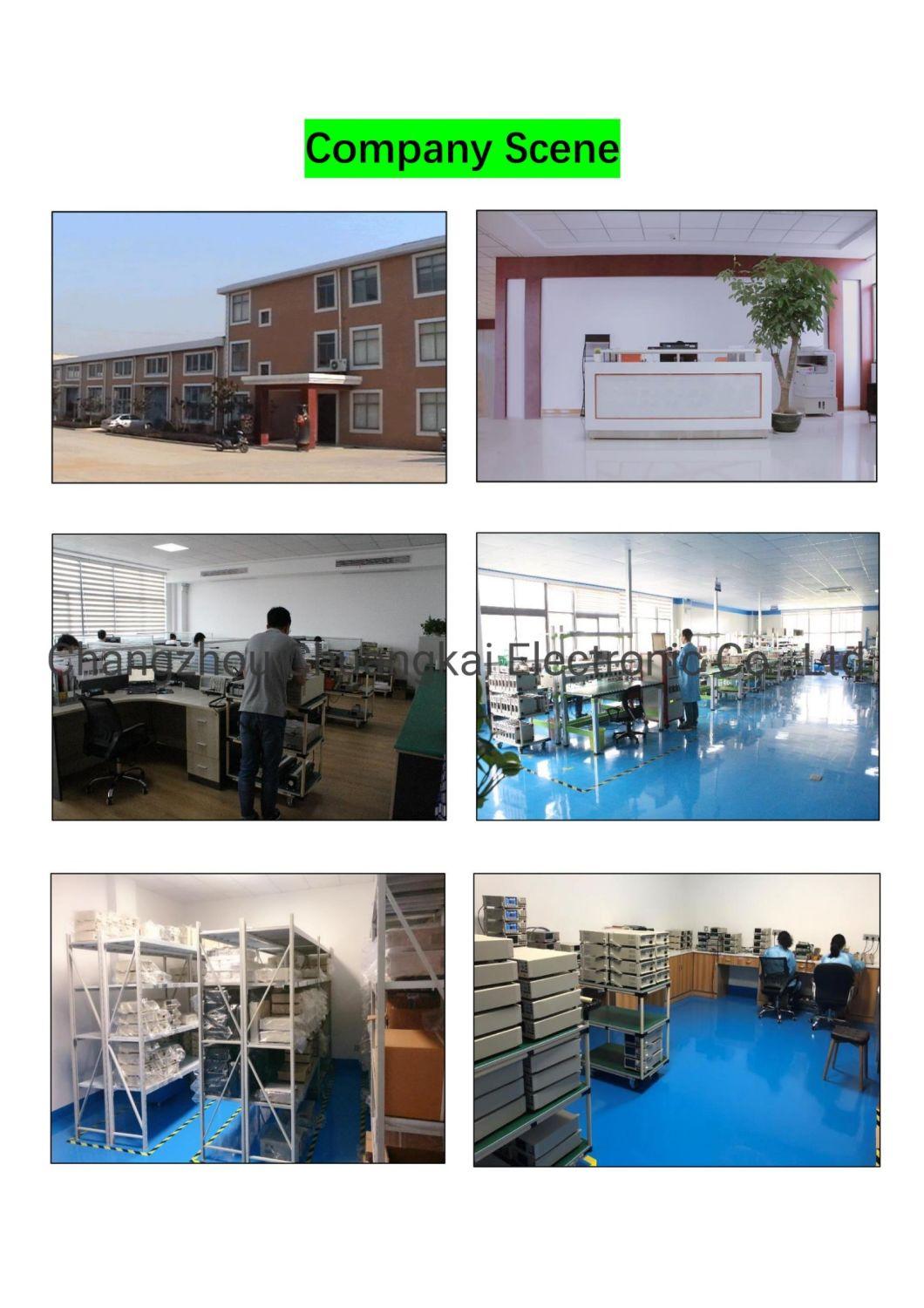

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
