• Model NO.：HD-E808
• Certificate：ISO9001: 2008, Ce
• Warranty Period：12 Months
• Control Interface：LCD
• Delivery Time：15 Days After Receiv The Deposit
• Model：HD-90 Salt Spray Test Machine
• Inner Box Size (L* W* H)：90* 60* 50 Cm
• Outside Box Size(L* W* H)：141* 88* 128 Cm
• Lab Volume：270L
• Brine Tank Capacity：25L
• Power：AC220V, 10A
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808 Certificate ISO9001: 2008, Ce Warranty Period 12 Months Control Interface LCD Delivery Time 15 Days After Receiv The Deposit Model HD-90 Salt Spray Test Machine Inner Box Size (L* W* H) 90* 60* 50 Cm Outside Box Size(L* W* H) 141* 88* 128 Cm Lab Volume 270L Brine Tank Capacity 25L Power AC220V, 10A Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

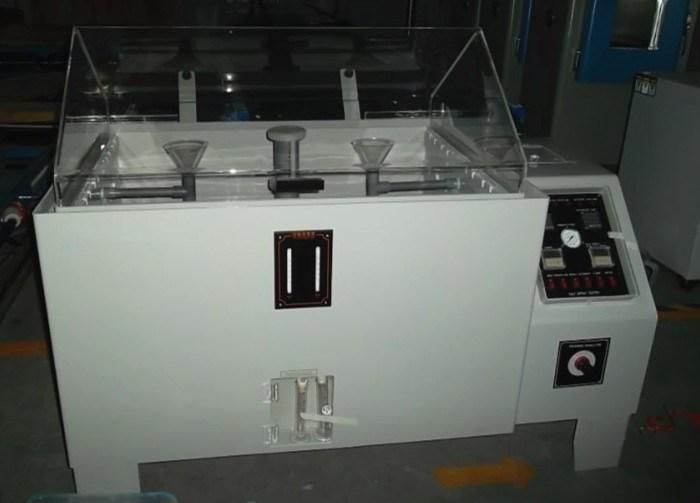

                                  Electronic Salt Fog Test Machine / Salt Spray Testing Equipment

Salt Spray Test Machine adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Features:

1 Durable hard PVC construction, anti-corrosion, easy to clean.
2 Reservoirs with mixing system on stand.
3 Cabinet heated by water jacket, heating element from USA famous company.
4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
5 Exposure zone lined with corrosion-resistant PVC sheets.
6 Clear cover allows viewing of test conditions.
7 Peaked cover prevents dripping of condensation onto samples.
8 Water seal and water level protection system.
9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10 Automatic DI water fill to humidifying tower.
11 Digital temperature control and readouts.
12 Integral over-protection on all heaters.
13 Low water cut-off protection on humidifying tower.

Model	HD-E808-90 Salt spray test machine
Inner Box Size (L× W× H)	90× 60× 50 cm
Outside Box Size(L× W× H)	141× 88× 128 cm
Equipment Material	Both inside & outside shell of salt spray chamber adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent  P. V. C. rigid plastic board
Temperature Range	35  º Cto 55 º C
Temperature Fluctuations	≤ ± 0.5 º C
Temperature Uniformity	≤ ± 2 º C
Temperature Precision	± 1 º C
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35± 1 º C                                                          Corrosion-resistant Testing Method (CASS) 50± 1 º C
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47± 1 º C                                                        Corrosion-resistant Testing Method (CASS) 63± 1 º C
Brine Temperature	35 º C± 1 º C
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	270L
Brine Tank Capacity	25L
Power	AC220V, 10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment  each 1 set
Standard	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM:   B117, B268
