• Model NO.：TH7105
• Feature：Linear Output Design

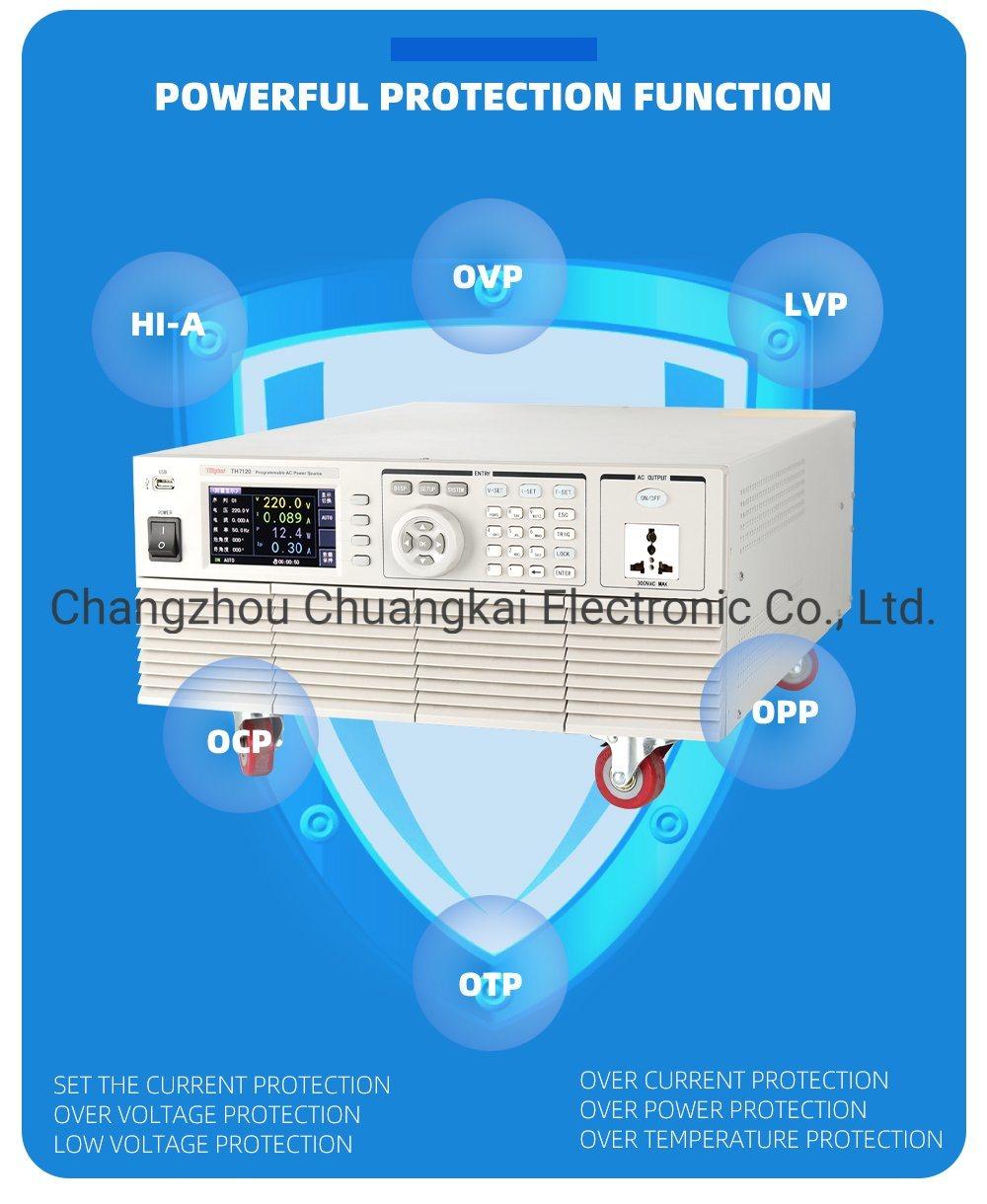

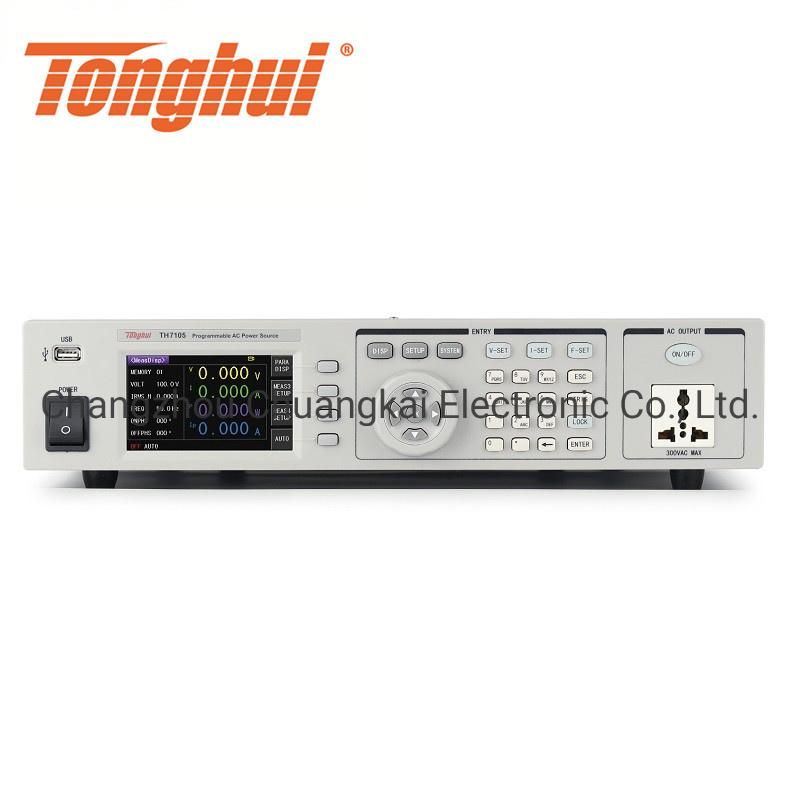

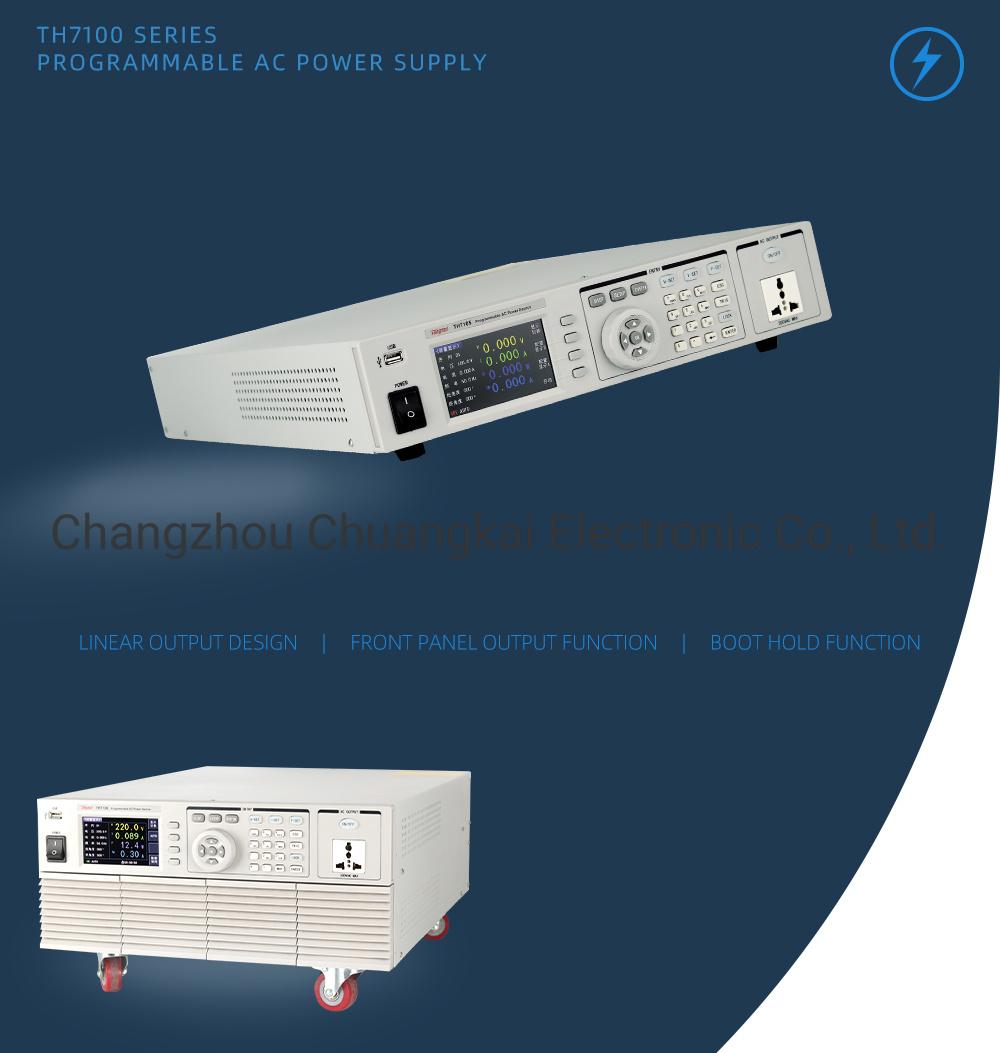

• Product Name：Th7105 Programmable AC Power Supply 500W
• Application：Motors and Transformers
• Transport Package：Carton
• Specification：75x65x45cm
• Trademark：CKT
• Origin：China
• HS Code：9030339000
• Production Capacity：3000 Sets Per Month

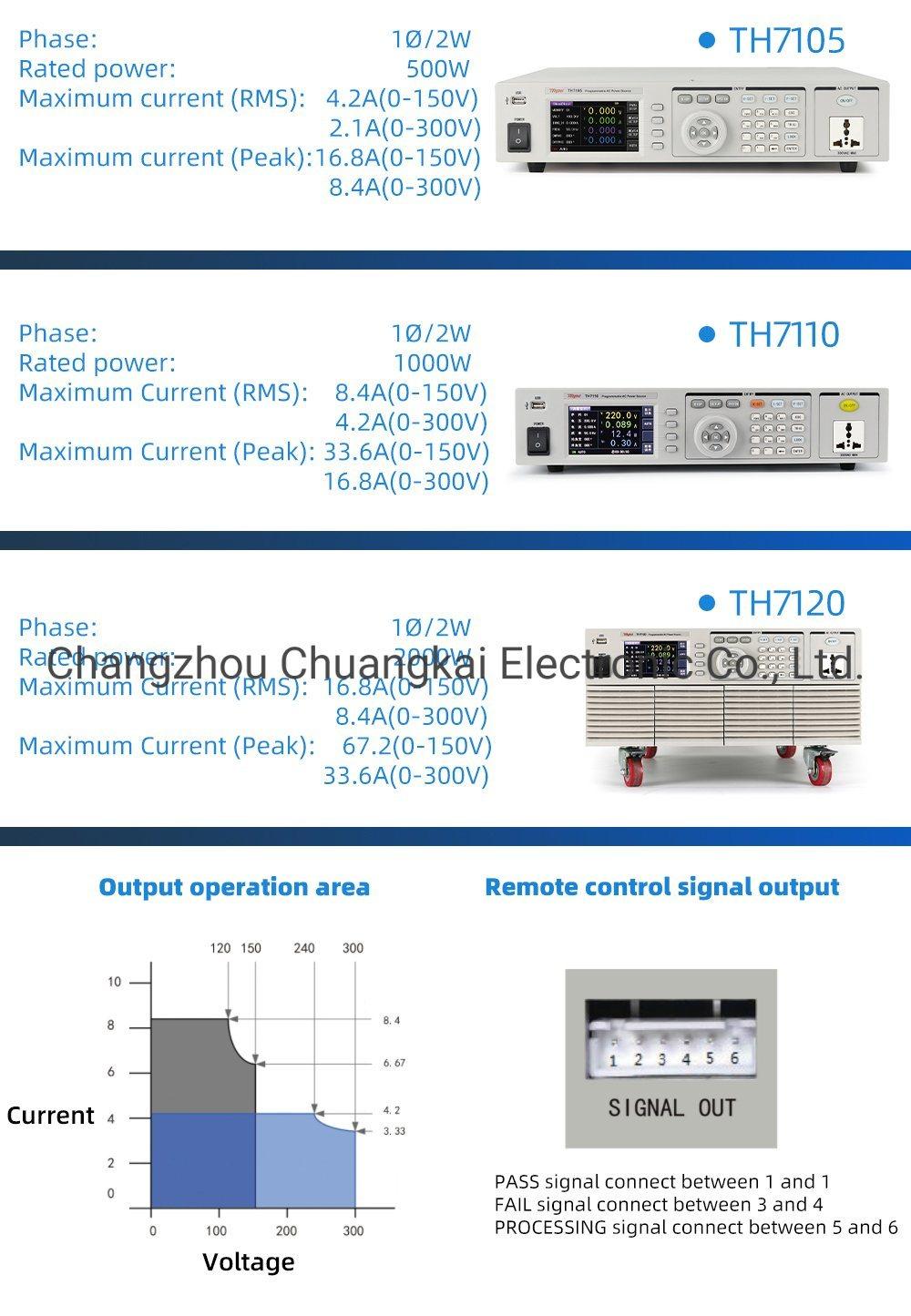

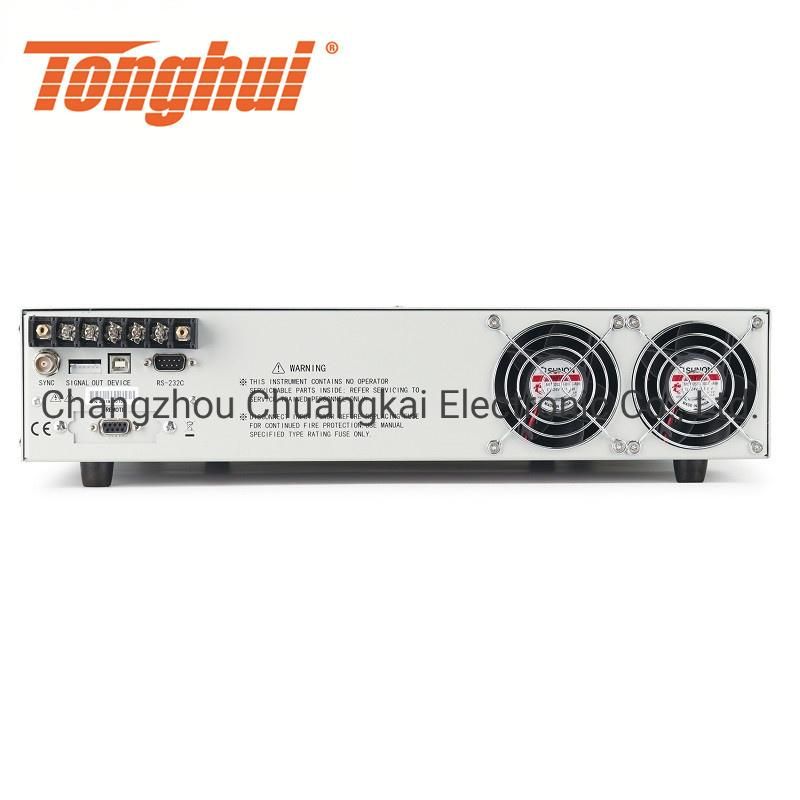

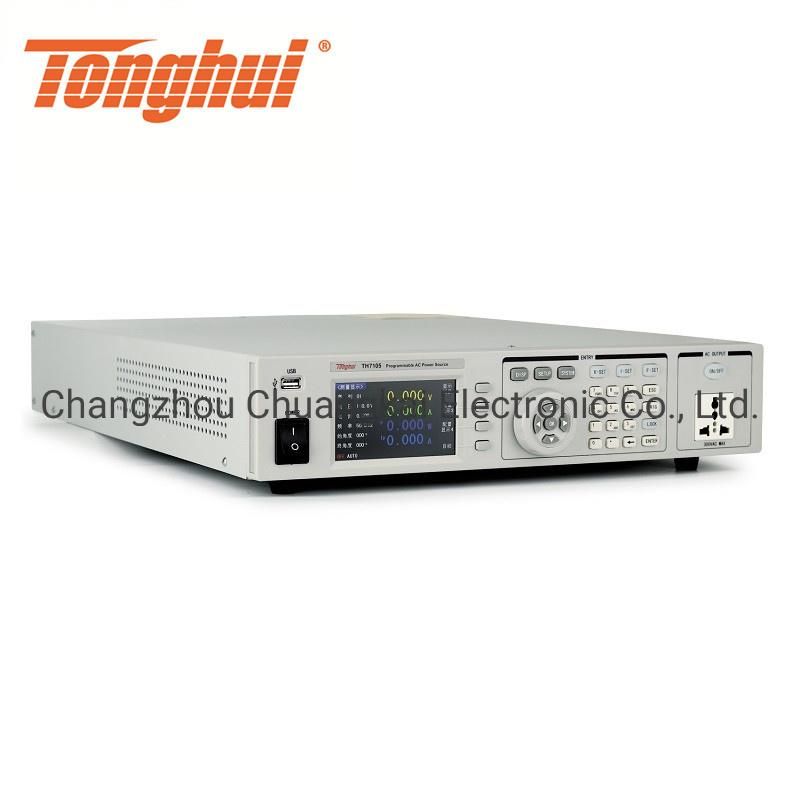

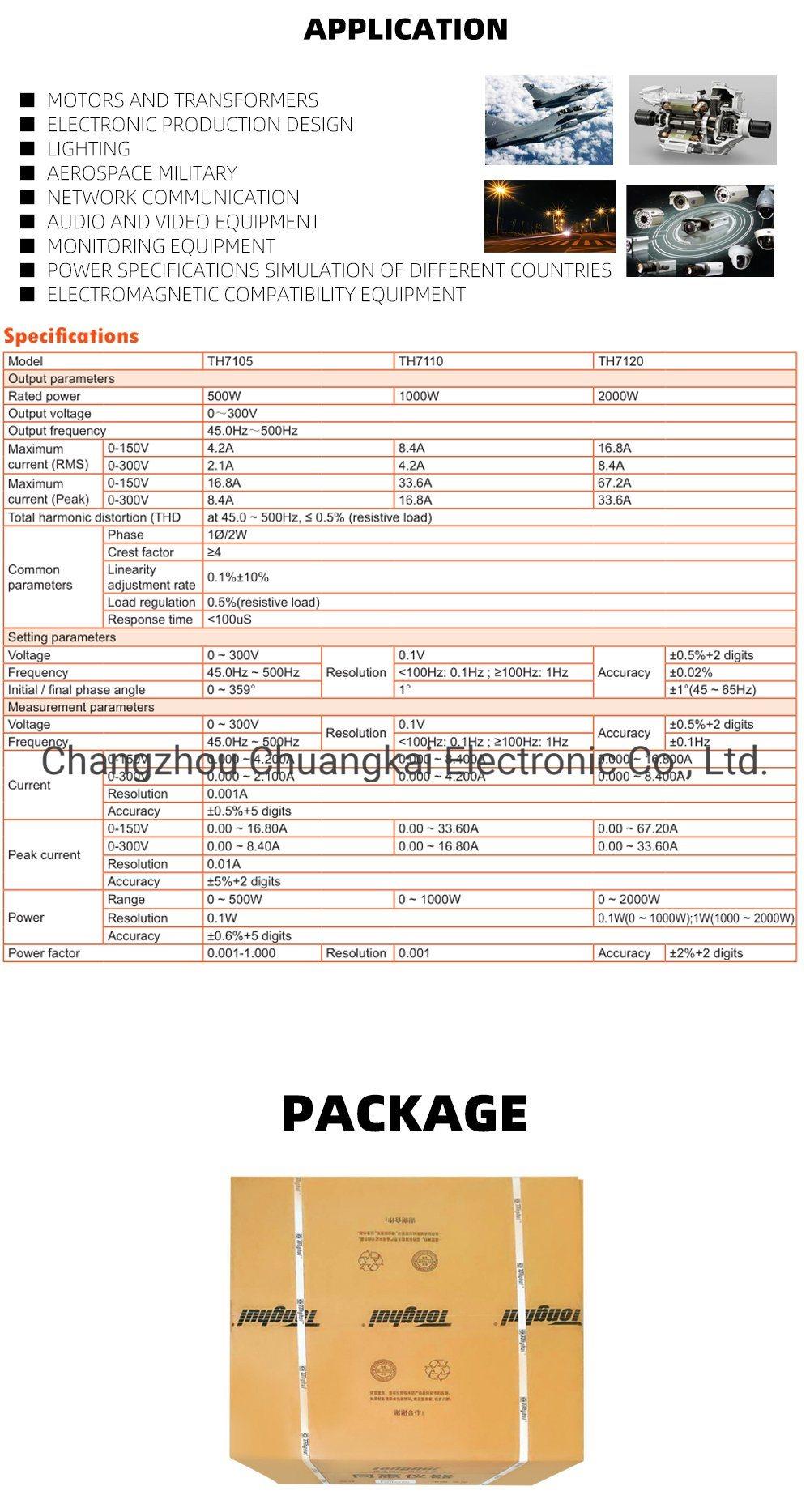

ModelTH7105TH7110TH7120Output Parameters  Rated Power500W1000W2000WOutput Voltage0~300V Output Frequency45.0Hz~500Hz Maximum Current (RMS)0-150V4.2A8.4A16.8A0-300V2.1A4.2A8.4AMaximumCurrent (Peak)0-150V16.8A33.6A67.2A0-300V8.4A16.8A33.6ATotal Harmonic Distortion (THDat 45.0 ~ 500Hz, ≤ 0.5% (resistive load) CommonparametersPhase1Ø/2W Crest Factor≥4 Linearity Adjustment Rate0.1%±10% Load Regulation0.5%(resistive load) Response Time<100uS Setting Parameters  Voltage~ 300VResolution0.1VAccuracy±0.5%+2 digitsFrequency45.0Hz ~ 500Hz<100Hz: 0.1Hz ; ≥100Hz: 1Hz±0.02%Initial / Final Phase Angle~ 359°1°±1°(45 ~ 65Hz)Measurement Parameters  Voltage~ 300VResolution0.1VAccuracy±0.5%+2 digitsFrequency45.0Hz ~ 500Hz<100Hz: 0.1Hz ; ≥100Hz: 1Hz±0.1HzCurrent0-150V0.000 ~ 4.200A0.000 ~ 8.400A0.000 ~ 16.800A0-300V0.000 ~ 2.100A0.000 ~ 4.200A0.000 ~ 8.400AResolution0.001A Accuracy±0.5%+5 digits Peak Current0-150V0.00 ~ 16.80A0.00 ~ 33.60A0.00 ~ 67.20A0-300V0.00 ~ 8.40A0.00 ~ 16.80A0.00 ~ 33.60AResolution0.01A Accuracy±5%+2 digits PowerRange~ 500W~ 1000W~ 2000WResolution0.1W0.1W(0 ~ 1000W);1W(1000 ~ 2000W)Accuracy±0.6%+5 digits Power Factor0.001-1.000Resolution0.001Accuracy±2%+2 digits Detailed Photos












Packaging & Shipping

https://ckt2017.en.made-in-china.com/product-list-1.html

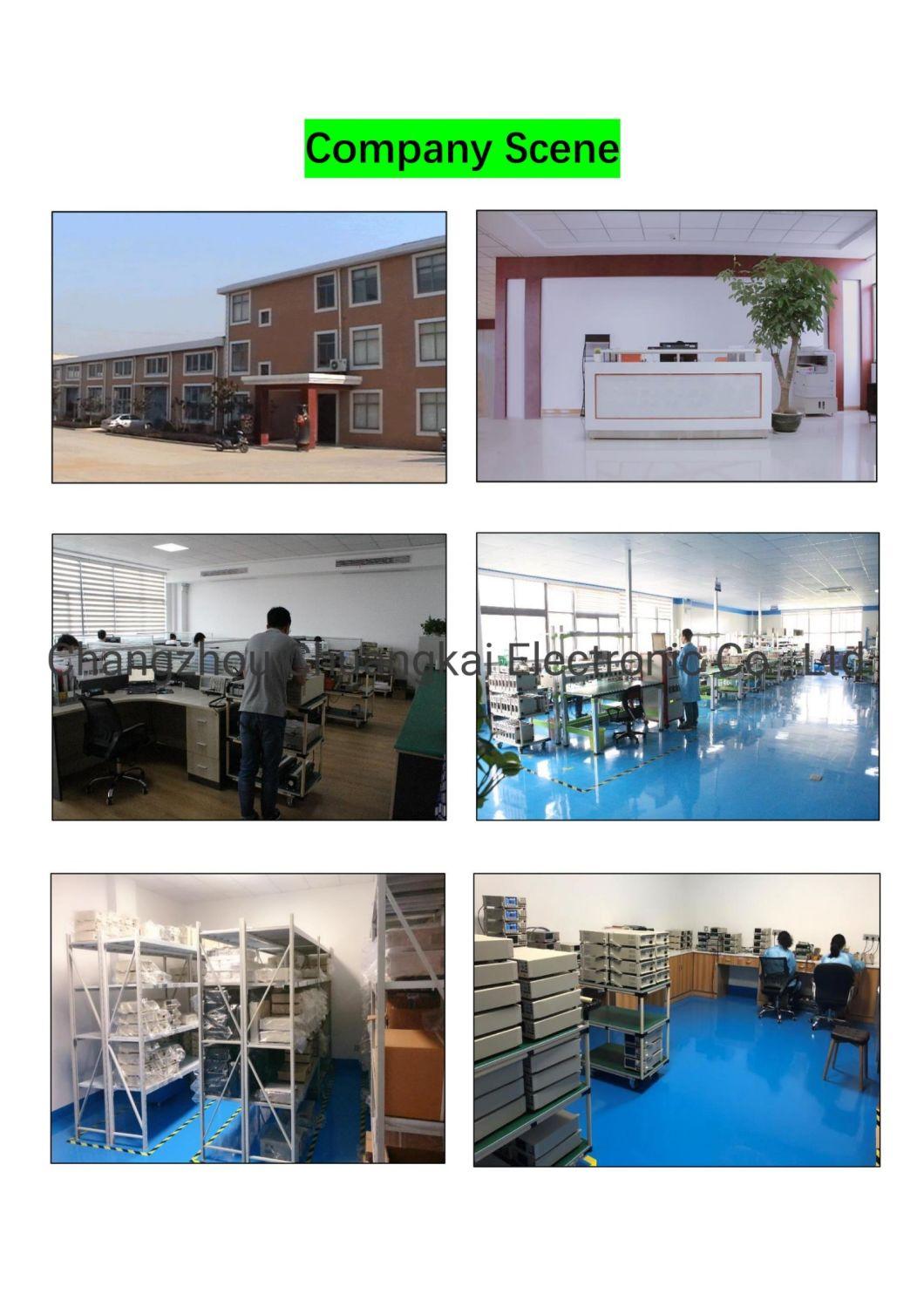

Company Profile

https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.
