Packaging Incline Impact Testing Instrument
Dongguan Haida Equipment Co., Ltd.- Type：Test and Measurement Instruments
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info

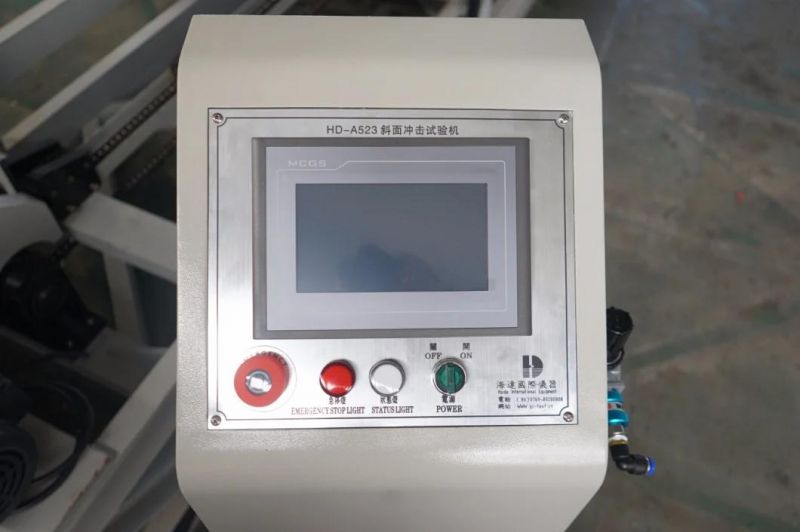

- Model NO.：HD-A523
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC220V
- Load (Kg)：100, 200, 300, 500, 600
- Design Criteria：Ista
- Warranty：One Year
- Delivery Time：20 Days After Receive The Deposit
- Impact Board Dimension (mm)：1600* 2000,
- Maximum Slide Length (mm)：1600 (Can Be Designed Accord to Customer′s Require
- Impact Velocity Range (M/S)：1.305~2.608, 1.305~2.334
- Pulley Platform Dimension (mm)：1000*1000
- Supply Voltage：Three Phase 380V, 50,60Hz
- Work Environment：Temperature 0~40° C, Humidity ≤ 80%
- Transport Package：Strong Wooden Case
- Specification：ISTA-1E
- Trademark：Haida
- Origin：China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description

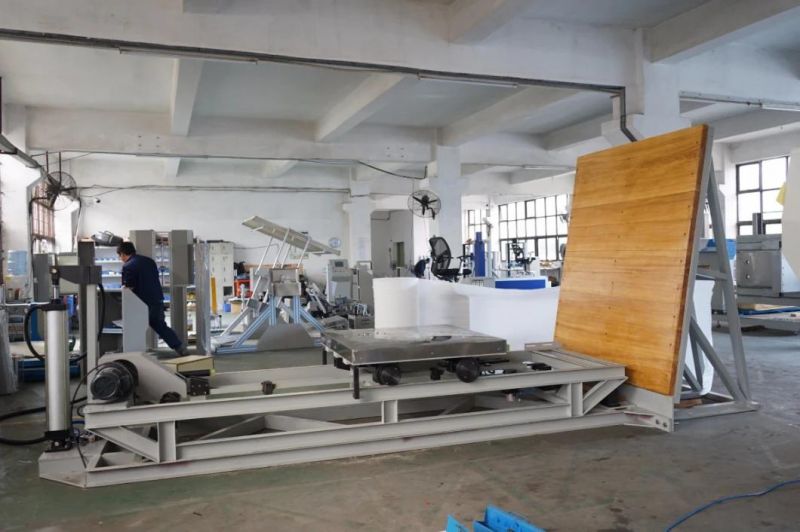

Inclined Impact Testing Machine:
Function and Characters:
1. Flexible location motor-driven pulley. It is easy to fix and achieve the change of speed.
2. The height of slope is relatively low so that is benefit of fix the specimen; Strong impact resistance board, guarantee the fastness of the structure.
3. The pulley can be adjusted to horizontal in order to fix the specimen for customer. The angular adjustment can be driven by cylinder which is flexible and convenience.
4. In order to keep the test staff completely safe the tester support remote control operating.
5. The customer only need to fix the machine on the ground when stalling, no other complicated operation convenient for test.
Design standard :
Test standard: ISTA-1E
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
Factory:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
