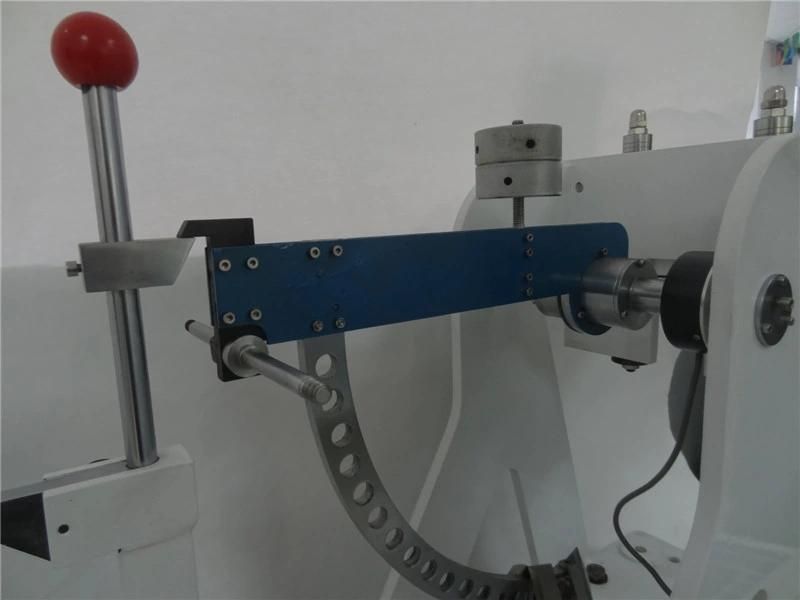

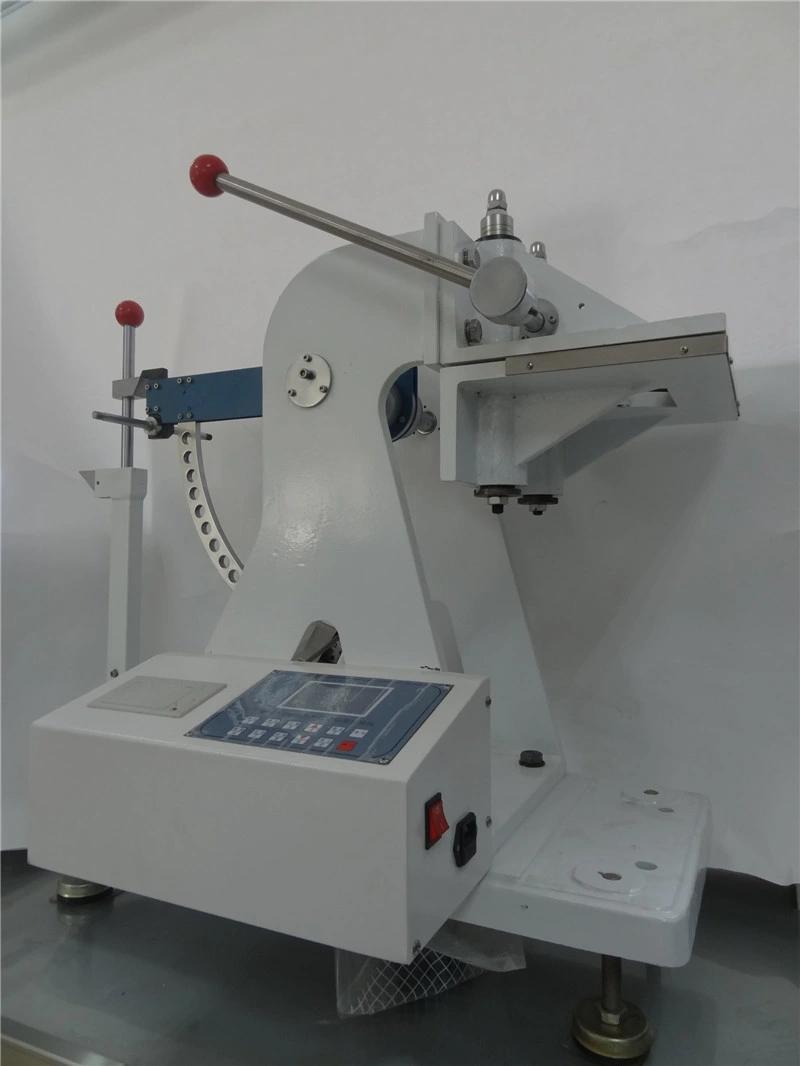

Adjustable Capacity Carboard Puncture Resistance Test Machine

Dongguan Haida Equipment Co., Ltd.
  • Warranty：One Year
  • Type：Strength Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Display：Digital

Base Info

  • Model NO.：HD-A510-2
  • Weight：100-500Kg
  • Power Source：AC220V
  • Measuring Range：(1~48)J
  • Pointer Friction：<0.25j
  • Delivery Time：15 Days After Receive The Deposit
  • Outside Dimension (L*W*H)：800*500*750 mm
  • Power：AC220V±10%, 2A, 50Hz
  • Temperature Range：Temperature: 5~35°c;
  • Humidity Range：Relative Humidity: ≤85%
  • Price：Reasonable
  • Quality：High
  • Transport Package：Strong Wooden Case
  • Specification：GB2679-7
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

Measuring Range(1~48)JIndication ErrorRuler A: ±0.05J; Ruler B: ±0.1J; Ruler C: ±0.2J; Ruler D: ±0.5J (within the limit range 20%~80% at each measurement)Pointer Friction<0.25JPendulum Shaft Friction and Air Resistance>120 times ( Measured by the swing frequency of arm swing)Triangular Pyramid Side Length: 60×60×60 mm; Height: 25±0.7 mm; edge fillet Radius: 1.5±0.1 mmOutside Dimension (L×W×H)800×500×750 mmWork EnvironmentTemperature: 5~35°C; Relative Humidity: ≤85%PowerAC220V±10%, 2A, 50HzWeightAppro. 140Kg
Adjustable Capacity Carboard Puncture Resistance Test Machine

Adjustable Capacity Carboard Puncture Resistance Test Machine
