• Model NO.：HD-A513-2
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Platen Parallelism：± 0.05 mm
• Precision：< 0.5%
• Ring Crush Sample：152×12.7 mm
• Compressed Space：500 mm
• Resolution：1,100,000
• Edge Crush Sample：25×100 mm
• Dimension (L*W*H)：790*510*1060 mm
• Test Speed：12.7 mm,Min
• Operation Mode：LCD
• Product Name：Edge Crush Testing Machine
• Transport Package：Strong Wooden Case
• Specification：Tappi-T472; T808, T810, T811, T818
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000PCS,Year

Capacity  (Optional)10, 20, 50, 100, 200 kgResolution1/100,000Precision< 0.5%Operation ModeComputerDisplay ModeLCDPlaten100×100 mm or depending on the diameter of the flat crush sampleCompressed Space500 mmPlaten Parallelism± 0.05 mmRing Crush Sample152×12.7 mmEdge Crush Sample25×100 mmTest Speed12.7 mm/minDimension (L×W×H)790×510×1060 mmWeight Approx. 51 kgPower AC220V, 1.5A
Corresponding standard :
IS02759,GB/T1539,QB/T1057,ASTMD3786,GB/T6564,GB/T465

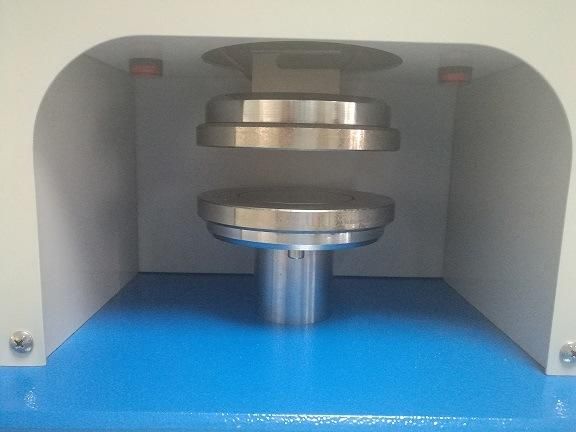

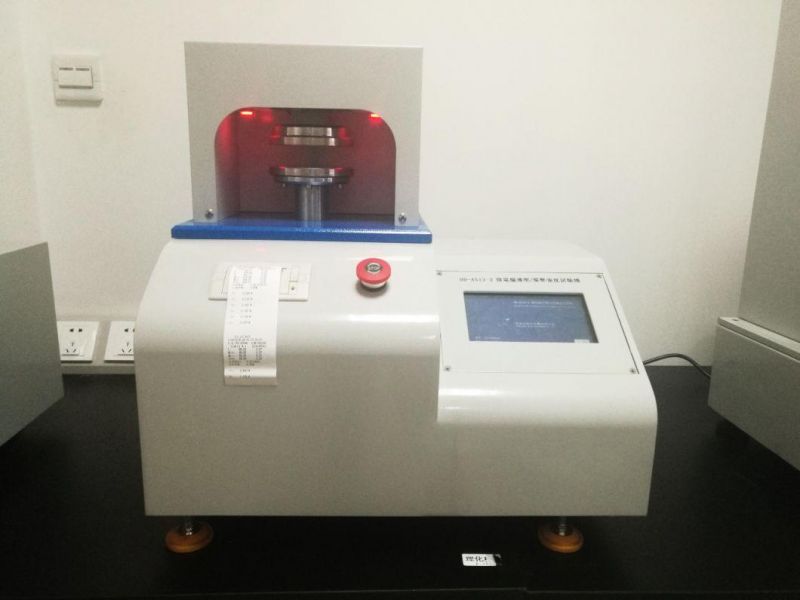

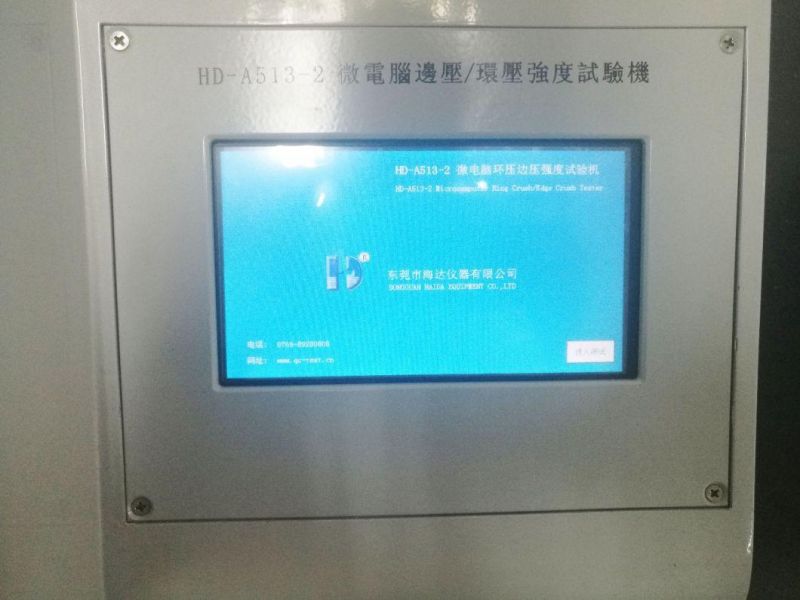

Product Images:






The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.




After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
