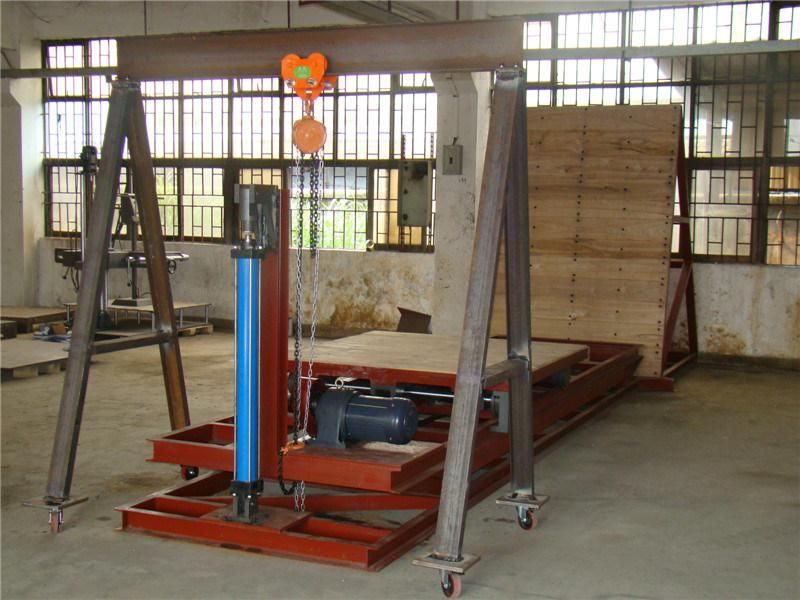

Electronic Corrugated Box Inclined Plane Impact Test Machine

Dongguan Haida Equipment Co., Ltd.
  • Mass Scope of Workpiece：<900kg
  • Type：Impact Testing Machine
  • Maxcapacity：>1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-A523
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Load (Kg)：100, 200, 300, 500, 600
  • Design Criteria：Ista
  • Warranty：One Year
  • Delivery Time：20 Days After Receive The Deposit
  • Impact Board Dimension (mm)：1600* 2000,
  • Maximum Slide Length (mm)：1600 (Can Be Designed Accord to Customer′s Require
  • Impact Velocity Range (M/S)：1.305~2.608, 1.305~2.334
  • Pulley Platform Dimension (mm)：1000*1000
  • Supply Voltage：Three Phase 380V, 50,60Hz
  • Work Environment：Temperature 0~40° C, Humidity ≤ 80%
  • Transport Package：Strong Wooden Case
  • Specification：ISTA-1E
  • Trademark：Haida
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

ItemDescriptionLoad capacity 100kg-600kg (can be customized)Impact surface dimension 1600*2200mm,2100*2400mm (can be customized)Rolling carriage table dimension1220*1220mm (can be customized)Control system Touch screen controllerMax. slide length 2200mm (can be customized)Plane inclined to the vertical angle0°, 15°(can be customized)Velocity range 1.1~2.3m/sImpact surface material Rubber wood with two-rail steel trackWorking conditionTemperature 0~40°, humidity ≤80%  (no condensation)Floor area7220*1800mmSafety features E-Stop
Over-load protection

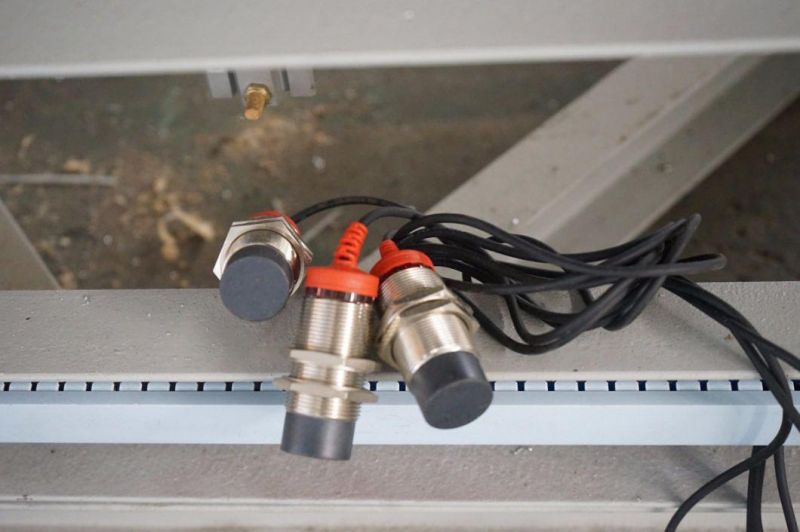

Upper and lower limit switches
Load sensor with automatic retreat
Electronic Corrugated Box Inclined Plane Impact Test Machine

Electronic Corrugated Box Inclined Plane Impact Test Machine
Electronic Corrugated Box Inclined Plane Impact Test Machine
Electronic Corrugated Box Inclined Plane Impact Test Machine

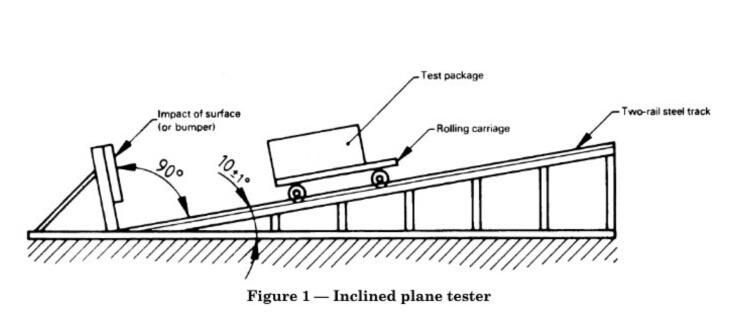

Inclined Impact Testing Machine
Function and Characters:
1. Flexible location motor-driven pulley. It is easy to fix and achieve the change of speed.
2. The height of slope is relatively low so that is benefit of fix the specimen; Strong impact resistance board, guarantee the fastness of the structure.
3. The pulley can be adjusted to horizontal in order to fix the specimen for customer. The angular adjustment can be driven by cylinder which is flexible and convenience.
4. In order to keep the test staff completely safe the tester support remote control operating.
5. The customer only need to fix the machine on the ground when stalling, no other complicated operation convenient for test.
