• Model NO.：SYD-0613
• HS Code：90248000
• Production Capacity：2000 Sets,Month

Basic Info.

Model NO. SYD-0613 HS Code 90248000 Production Capacity 2000 Sets/Month

Product Description

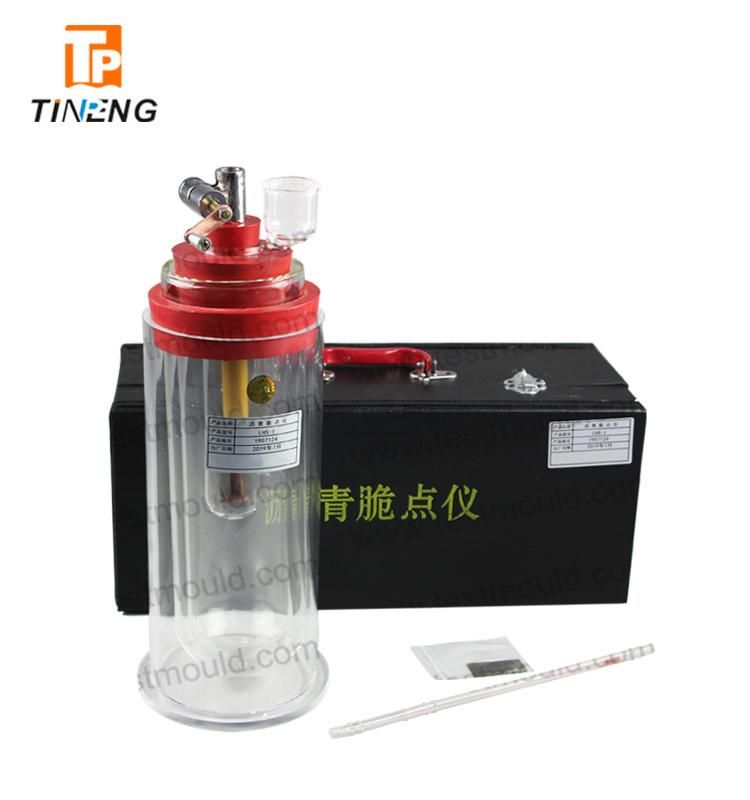

Fraass Method Manual Asphalt Breaking Point Tester

    Used for determining the breaking point of solid and semi-solid bitumens. The Fraas Breaking Point is the temperature at which bitumen first becomes brittle, as indicated by the appearance of cracks when a thin-film of the bitumen on a metal plaque is cooled and flexed in accordance with specified conditions.

    The instrument is composed of outer cylinder, temperature preservation cylinder, thermometer, lower plate, upper grip, fixing rod, base, guide rail, sweeping block, handle, steel sheet and so on.
    The temperature preservation cylinder is a double layer glass cylinder. It is used to place the dry ice and
ethylalcohol mixtures. It is the cooling unit.
The lower plate and upper grip are metal sheets.
The fixing rod and movable rod are made of fabroil.
The base, guide rail, sweeping block and handle are used to changer the relative position of fixing rod and movable rod  to make the sample sheet bending.



Thermometer: -38°C~+30°C,division value 0.5°C
Size of sample sheet: 41mm×20mm×0.15mm
Weight approx.: 3 kg
