Dynamic Cone Penetrometer for Soil Testing
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Produce Standard：ASTM D6951-03
- Hammer Weight：8kg
- Falling Distance：575mm
- Transport Package：Aluminum Alloy
- Specification：8KG hammer
- Trademark：C-Tech
Base Info
- Model NO.：16-T0012,A
- Origin：China
- HS Code：90248000
- Production Capacity：200 Sets,Month
Description
Basic Info.
Model NO. 16-T0012/A Origin China HS Code 90248000 Production Capacity 200 Sets/MonthProduct Description
Dynamic cone penetrometerused to estimate the strength characteristics of fine and grained of in situ soils.
Dynamic cone penetrometer is faster, cheaper and valuable tool for identifying weak spots in embankments, measuring uniformity of material and locating boundaries of subcuts and also be used to delineate between layers of frozen and unfrozen soils. (It should not be used in highly stabilized or cemented materials or for granular materials containing aggregates greater than 50mm)
Standard: ASTM D 6951-03
The instrument is manufactured from stainless steel to the following specifications:
- Hammer
Weight measurement of 8 Kg. Tolerance is 0.004K- Drop of hammer measurement of 575mm. Tolerance is 1.0mm.

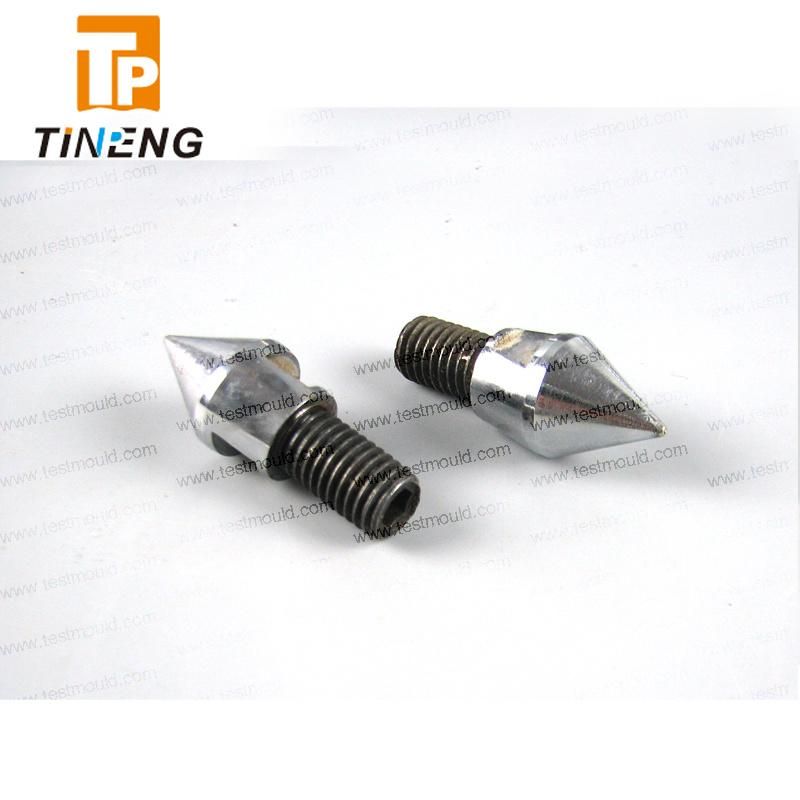

- Tip included angle measurement of 60 degrees. Tolerance is 1 degree. - Tip base diameter measurement of 20mm. Tolerance is 0.25mm.
