Th5100 Th170 Handheld Leeb Hardness Tester
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service:24 Hours Technical Supply
- Warranty:12 Months
- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:<900kg
- Type:Hardness Tester
- Maxcapacity:0.5µm
Base Info
- Model NO.:TH5100
- Accuracy Grade:1
- Load Way:Mechanical Load
- Loading Method:Static Load
- Display:Digital
- Control:Manual Control
- Weight:0-100Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Certificate:CE & ISO
- Transport Package:Plywood
- Specification:520*190*650mm
- Trademark:HST
- Origin:Shangdong, China
- HS Code:9024102000
- Production Capacity:1000
Description
Basic Info.
Model NO. TH5100 Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Certificate CE & ISO Transport Package Plywood Specification 520*190*650mm Trademark HST Origin Shangdong, China HS Code 9024102000 Production Capacity 1000Product Description
TH5100 Portable Leeb Hardness Tester with USBFeatures: portable hardness tester
USB communication interface
Automatic identification of impact test direction
Memory of 270 average testing in 9 group files
Upper and lower limit setting
Automatically switch off
Backlight for convenient use in darkness
Battery capacity display
AAA1.5V battery
Integrated calibration function
TH170: integrated with D impact device for normal hardness testing
TH172: integrated with C impact device for hardness testing on thin, light and
face-hardened workpieces
TH174: integrated with DL impact device for hardness testing of deep grooves and
tooth surface
With software for data analysis

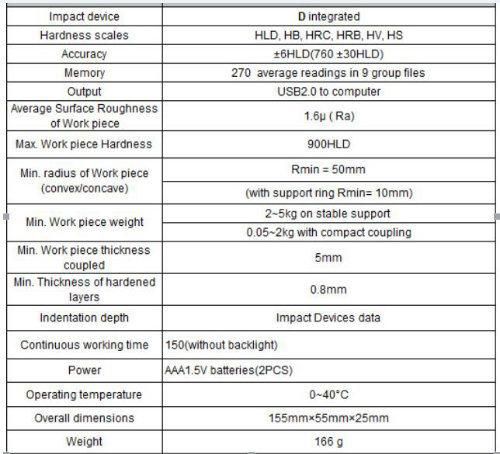

Technical Specification

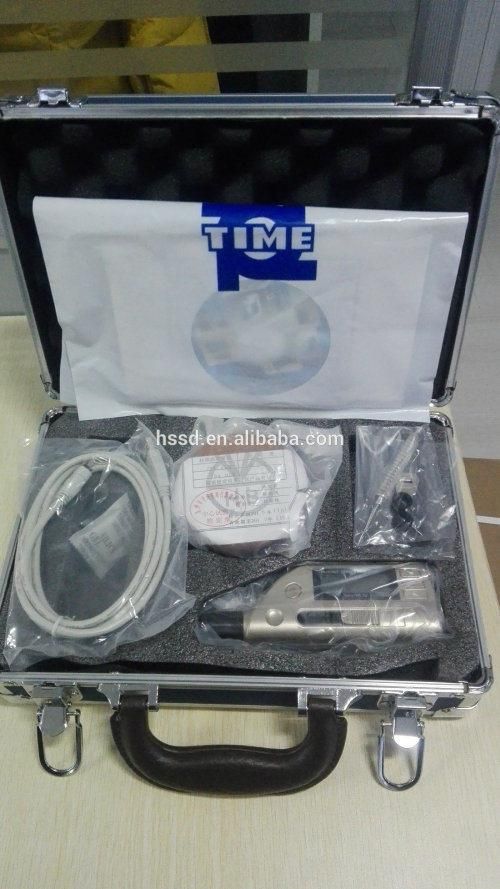

Standard delivery:
Main unit
Test block
Brush
Battery AAA1.5V
Connecting cable
Certificate
Instruction man

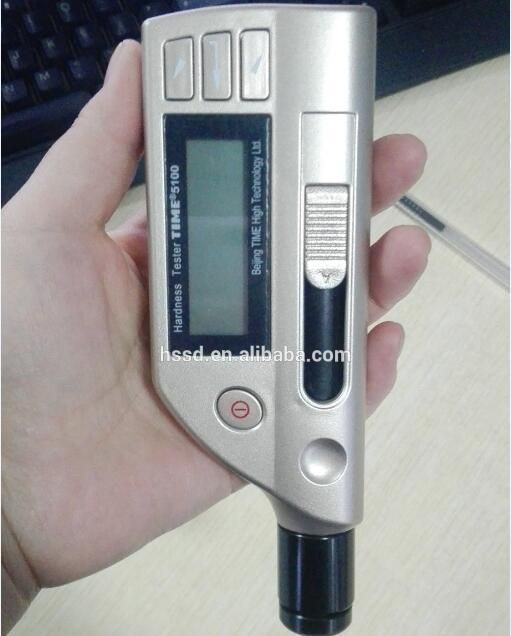

Real pictures as below:
