Large Capacity Cement Concrete Curing Cabinet
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：180kgs
- Type：Cement Concrete Curing Tank
- Maxcapacity：No
Base Info
- Model NO.：HBY-40B
- Accuracy Grade：1
- Load Way：No
- Loading Method：No
- Display：Digital
- Control：Digital Display
- Weight：180kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Hby-40b Large Capacity Cement Concrete Curing Tank
- Digital Control Unit：Temperature and Relative Humidity Are Displayed at
- Voltage：AC220V
- Compressor Power：125W
- Heating Power：600W
- Humidity：Bigger 95%Rh
- Temperature Range：15c-30c
- Refrigerating System：Direct Cooling Refrigerator, Coil Evaporator and E
- Humidifier：Ultrasonic Humidifier, Spray Foam Water Molecular
- Working Room：600X550X1380mm
- Transport Package：Wooden Case
- Specification：1.8CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. HBY-40B Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 180kgs Power Source AC220V Oil Cylinder Position No Product Name Hby-40b Large Capacity Cement Concrete Curing Tank Digital Control Unit Temperature and Relative Humidity Are Displayed at Voltage AC220V Compressor Power 125W Heating Power 600W Humidity Bigger 95%Rh Temperature Range 15c-30c Refrigerating System Direct Cooling Refrigerator, Coil Evaporator and E Humidifier Ultrasonic Humidifier, Spray Foam Water Molecular Working Room 600X550X1380mm Transport Package Wooden Case Specification 1.8CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

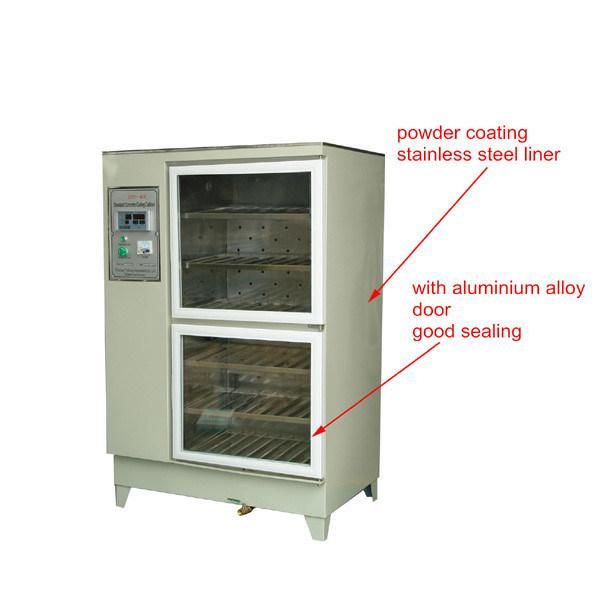

HBY-40B Large Capacity Cement Concrete Curing Cabinet
| Product name | HBY-40B Large Capacity Cement Concrete Curing Tank |
| Functions | include heating, refrigeration, spray, temperature and humidity controlling. Two-doors design ensures good heat retaining property. |
| Digital control unit | temperature and relative humidity are displayed at all times as well as all the other phases. |
| Voltage | AC220V±10% |
| Compressor power | 125W |
| Heating power | 600W |
| Humidity | >95%RH |
| Temperature range | 15ºC-30ºC, ±1ºC |
| Refrigerating system | direct cooling refrigerator, coil evaporator and exposed condenser; inner fan to help heat exchange and reduce temperature difference; Heating: U type electric heating tubes; |
| Humidifier | ultrasonic humidifier, spray foam water molecular style ensures humidity >95%RH; |
| Working room | 600X550X1380mm |
