Stjbj-5 Cement Mortar Mixer (New Standard)

Shanghai Civil & Road Instrument Co., Ltd.
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：80kgs
  • Type：Cement Mortar Mixer
  • Maxcapacity：No
  • Accuracy Grade：1
  • Load Way：No

Base Info

  • Loading Method：No
  • Display：Digital
  • Control：Digital Control
  • Weight：80kgs
  • Power Source：AC220V
  • Oil Cylinder Position：No
  • Application：to Test Strength of Cement Mortar
  • Rotation：Low Speed 140r,M High Speed 285r,M
  • Revolution：Low Speed 62r,M; High Speed 125 R,M;
  • Voltage：AC380V
  • Power of Motor：0.370,0.55kw 8,4p
  • Transport Package：Wooden Case
  • Specification：74x48x90cm
  • Trademark：SHTG
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：100PCS,Month

Description

Basic Info.

Loading Method No Display Digital Control Digital Control Weight 80kgs Power Source AC220V Oil Cylinder Position No Application to Test Strength of Cement Mortar Rotation Low Speed 140r/M High Speed 285r/M Revolution Low Speed 62r/M; High Speed 125 R/M; Voltage AC380V Power of Motor 0.370/0.55kw 8/4p Transport Package Wooden Case Specification 74x48x90cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

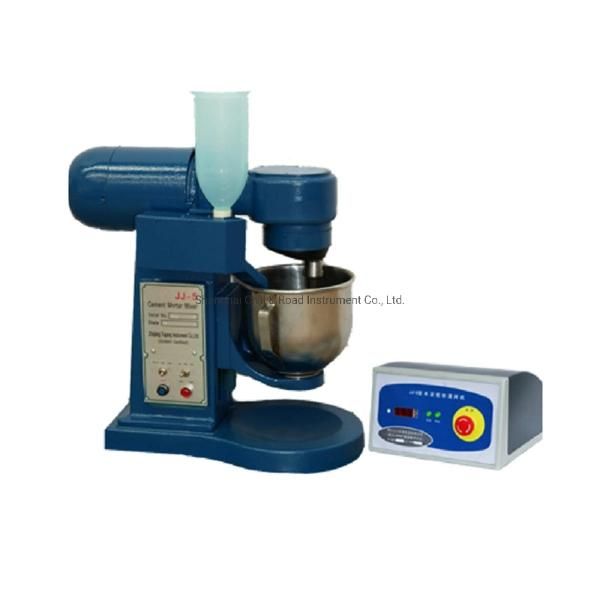

STJBJ-5 Cement Mortar Mixer(New Standard)


Application: It is an equipment to test strength of cement mortar and complies with the test method ISO679:1989.
Mix cement and water to prepare homogeneous paste and specimen for the normalconsistency and setting time tests.

Rotationlow speed 140±5 r/m; high speed  285±10 r/m;
Revolutionlow speed 62±5 r/m; high speed 125±10 r/m;
Mixing bowl capacity5L
VoltageAC380V
Power of motor0.370/0.55KW 8/4P
Size472*280*466mm
Net weight≈45kg
Stjbj-5 Cement Mortar Mixer (New Standard)
