Stzc-100 Rock Core Drilling Machine
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：180kgs
- Type：Rock Cutting Machine
- Maxcapacity：No
- Accuracy Grade：1
- Load Way：No
Base Info
- Model NO.：STZC-100
- Loading Method：No
- Display：Digital
- Control：No
- Weight：180kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stzc-100 Rock Core Drilling Machine
- Diamond Bit：Diameter 50-100mm
- Max. Drilling Depth：400mm
- Max. Drilling Diameter：100mm
- Main Motor Power：2.2kw
- Lifting Motor：DC36V,250W
- Transport Package：Wooden Case
- Specification：1.3CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STZC-100 Loading Method No Display Digital Control No Weight 180kgs Power Source AC220V Oil Cylinder Position No Product Name Stzc-100 Rock Core Drilling Machine Diamond Bit Diameter 50-100mm Max. Drilling Depth 400mm Max. Drilling Diameter 100mm Main Motor Power 2.2kw Lifting Motor DC36V/250W Transport Package Wooden Case Specification 1.3CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

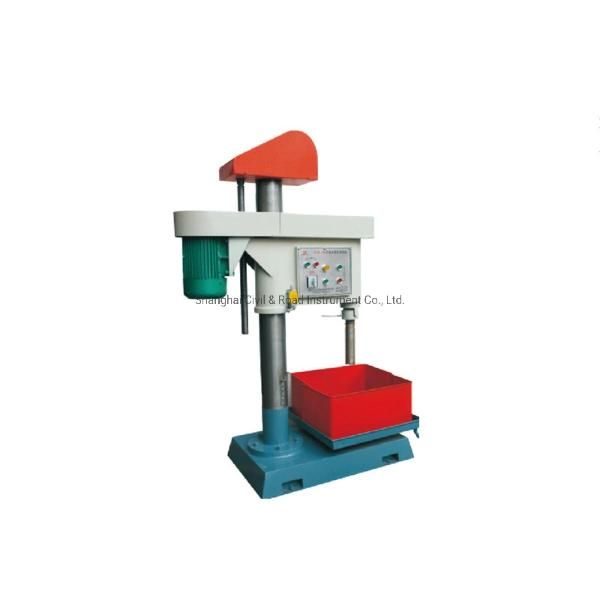

STZC-100 Rock Core Drilling Machine
Application: is for rock and other material drilling core sample processing, drilling and coring samples from various sizes of rock directly, make direct shear size specimen, triaxial resistance to compression and so on.
| Diamond bit | diameter 50-100mm |
| Max. drilling depth | 400mm |
| Max. drilling diameter | 100mm |
| Main motor power | 2.2kW |
| Lifting motor | DC36v/250W |
| Feature | Continuous working |
