• Model NO.：GD-2430A
• Refrigerator System：Imported Refrigerator Compressor
• Sample Stirring：Mechanical Stirring Is 0~120r,Min
• Transport Package：Wooden Case for ASTM D1177 Freezing Point Analyzer
• Specification：560*550*810mm
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-2430A Refrigerator System Imported Refrigerator Compressor Sample Stirring Mechanical Stirring Is 0~120r/Min Transport Package Wooden Case for ASTM D1177 Freezing Point Analyzer Specification 560*550*810mm Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

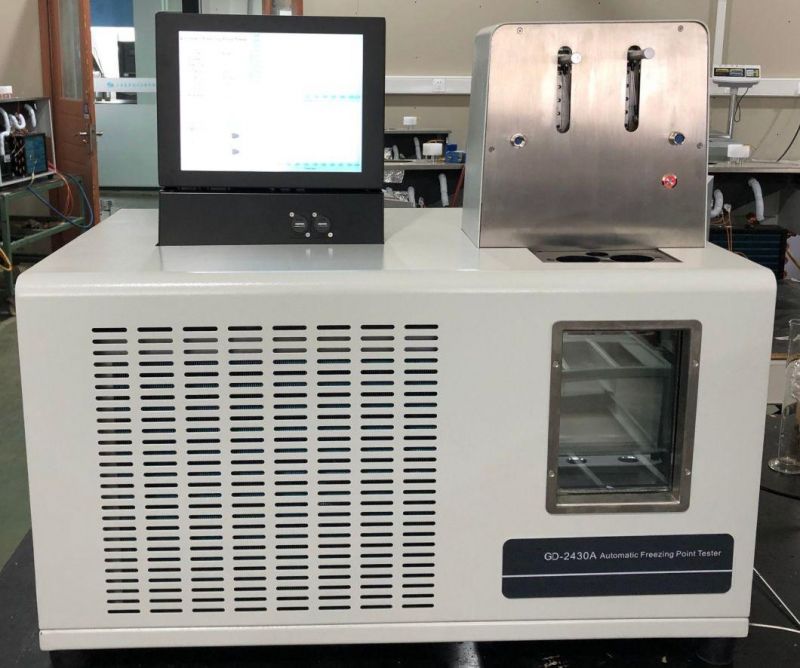

ASTM D1177 Automatic Freezing Point Apparatus of Gasoline


Freezing point analyzer is designed and made as per ASTM D1177 and ASTM D2386 Standard Test Method for Freezing Point of Engine Coolants and condensation liquids.
It can automatically judge the freezing point temperature; the lowest temperature is -70ºC;

 I.SummarySince today's highly competitive environment, oil refiners require a reliable and accurate analysis system to determine the Freeze Point temperature to meet the required specifications. Our instrument Freezing point analyzer will allow the operators to optimize the refining process and lower production costs while improving product quality.
Our freezing point analyzer is designed and made as per ASTM D1177,D2386 Standard Test Method for Freezing Point of Engine Coolant and condensation liquids .  It can judge the freezing point temperature automatically.


II.Main characteristic:
Unit as one to measure jet fuel freezing point and engine coolant freezing point; automatically stirring sample and judging the freezing point temperature; fast cooling; high precision temperature control; full spraying plastic case; wear-resistant.


III. Main technical specifications

1	Standard	ASTM D2386; ASTM D1177
2	Test parameters	Freezing point
3	Power supply	AC 220 V±10%, 50 Hz
4	Working bath	stainless steel,double vacuum glass observing window
5	Freezing point range	-54ºC~2ºC
6	Cold bath measurement temperature	-70ºC~20ºC
7	Temperature controlling accuracy	±0.5ºC
8	Bath liquids stirring	electric stirring.the power is 6W,1200r/min
9	Refrigerator system	imported refrigerator compressor
10	Sample stirring	mechanical stirring is 0~120r/min,continuously adjustable
11	Ambient temperature	≤30ºC
12	Maximum power consumption	2000 W
13	Dimension	560×550×810mm

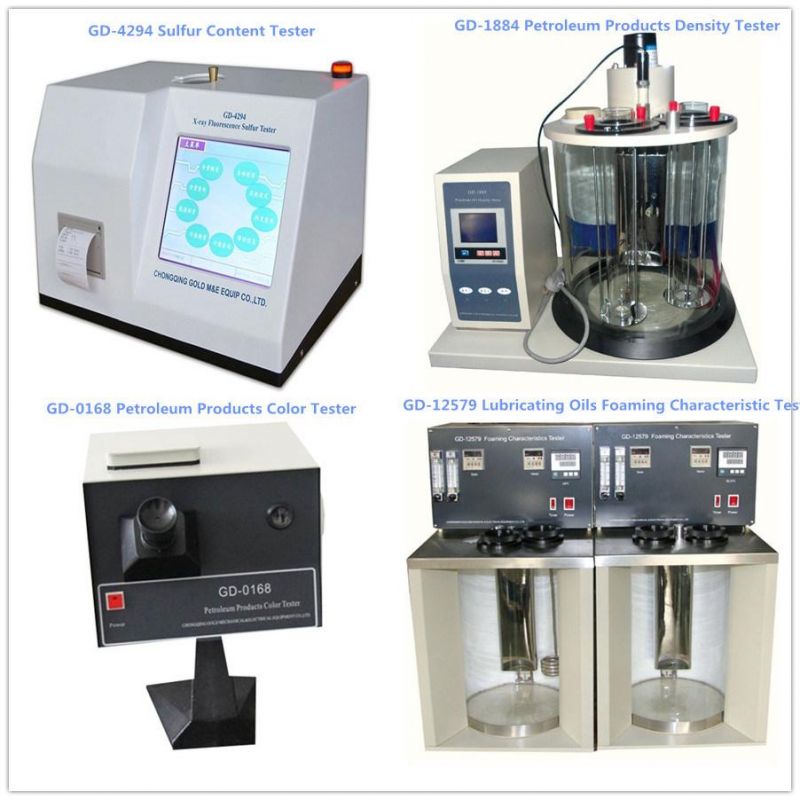

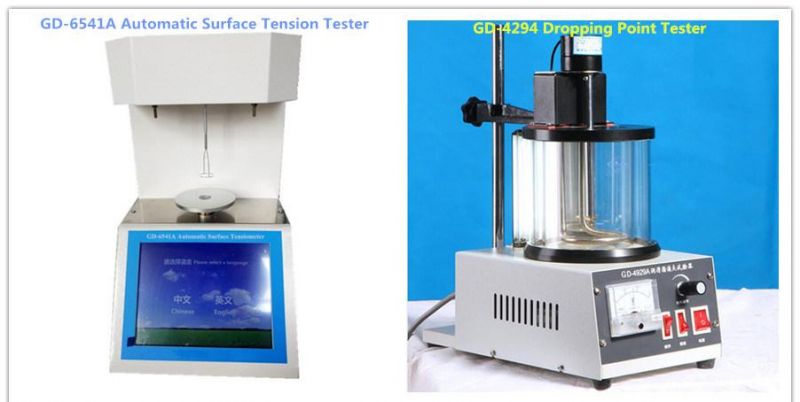

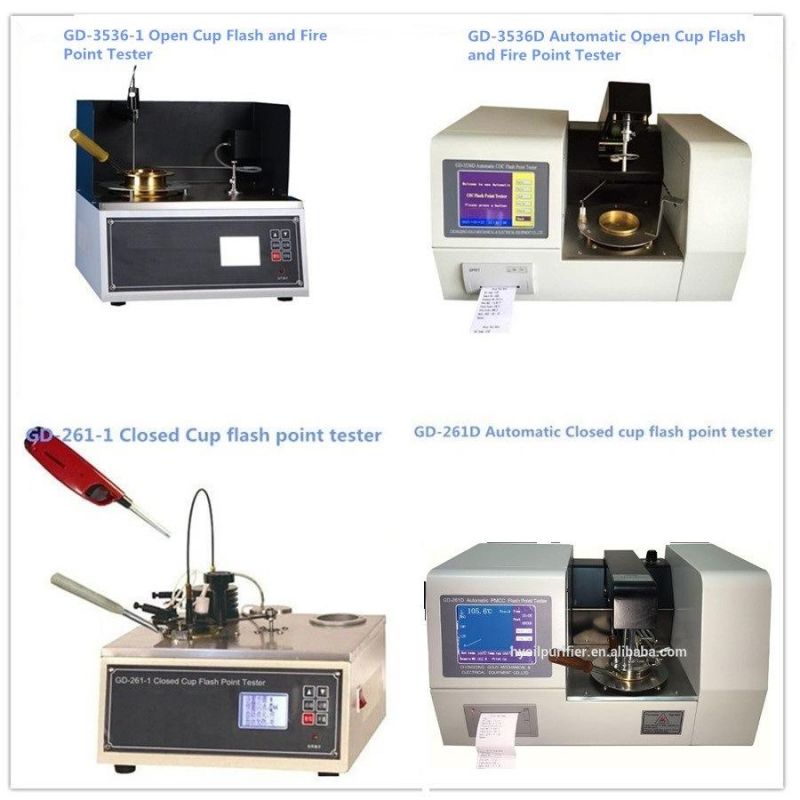

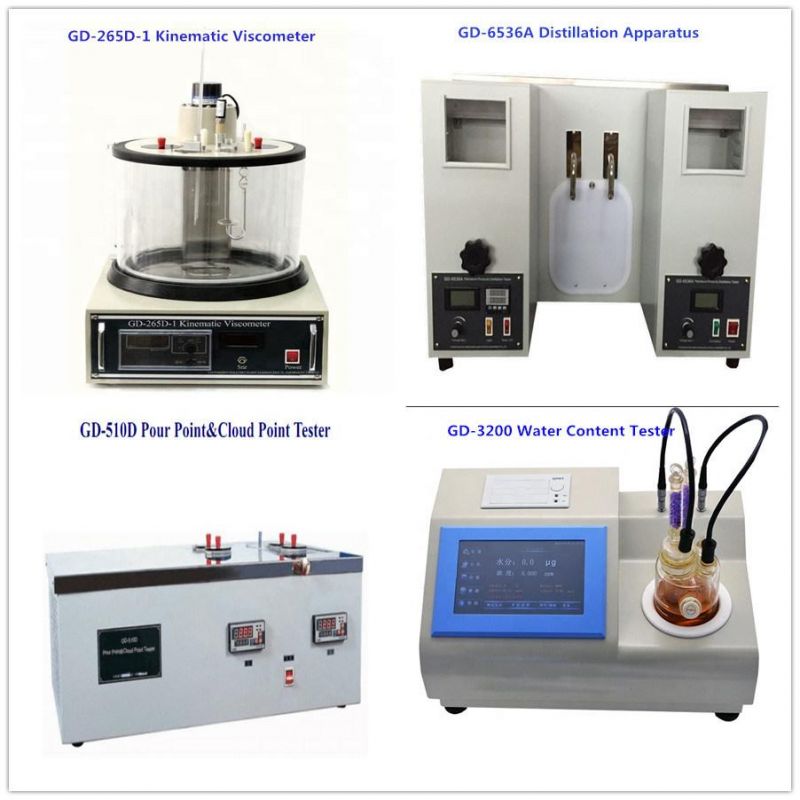

IV.Petroleum & Oil Analyzer Petroleum Testing Instruments







V.Contact us:

If you have interest, please feel free to contact with me:

Chongqing Gold Mechanical&Electrical Equipment Co., Ltd

website: chinainstrument.en.made-in-china.com
