• Model NO.：STSJ-6A
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Electric Digital
• Weight：285
• Power Source：380V ,220V
• Oil Cylinder Position：No
• Area of Soil Sample：30cm2
• Lever Ratio：1:12
• Vertical Loading：50, 100, 200, 300, 400(Kpa)
• Max. Horizontal Loading：1.2kn
• Can Test：4 Specimen in The Same Test
• Shear Rate：0.01-25mm,Min
• Working Voltage：AC220V
• Specimen Area：30 (Cm2) * 2 Cm (H)
• Main Frame Measurement：1160X900X1160mm
• Controller：490X490X960mm
• Transport Package：Wooden Case
• Specification：1.5CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STSJ-6A Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Electric Digital Weight 285 Power Source 380V /220V Oil Cylinder Position No Area of Soil Sample 30cm2 Lever Ratio 1:12 Vertical Loading 50, 100, 200, 300, 400(Kpa) Max. Horizontal Loading 1.2kn Can Test 4 Specimen in The Same Test Shear Rate 0.01-25mm/Min Working Voltage AC220V Specimen Area 30 (Cm2) * 2 Cm (H) Main Frame Measurement 1160X900X1160mm Controller 490X490X960mm Transport Package Wooden Case Specification 1.5CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

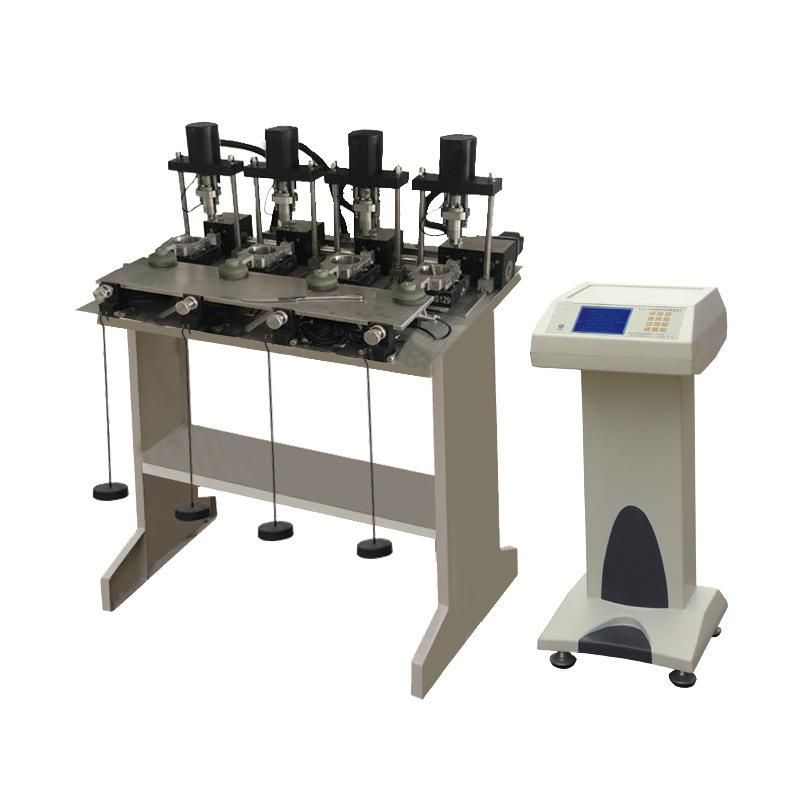

STSJ-6A Digital Shear Testing Machine

ASTM D3080, BS 1377:7  , AASHTO T236 NF P094071-1/2

1.Application:
This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed

This apparatus is used to determine the shearing strength of the soil. Generally, to shear four specimens with horizontal shear force under different vertical pressure respectively, obtain the shearing strength when the soil specimen destructed, then according to the Coulomb law to determine the anti-shear strength coefficient, internal friction angle and cohesive force.

2.Features: Stainless steel working table, stepping motor as pushing mechanism, high precision, low noise, MCU control, variable speed displayed by the controller, easy to operate, ABS vertical type controller, LCD display.

3.Technical Parameters:


Model	STSJ-6A
Vertical Load	Max. 400KPa
Pressure Grade	50KPa,100KPa, 200KPa, 300KPa, 400KPa
Lever Ratio	1:12
Shear Cell	4
Horizontal Shear Force	Max. 1.2KN
Specimen Area	30 (cm2) * 2 cm (H)
Speed	0.01~25mm/min
Power Supply	220V, 50Hz
Main frame measurement	1160x900x1160mm
Controller	500x500x1020mm
Weight	240 KG
