• Model NO.：GD-0702
• Test Mode：Suitable to 101.6mm*63.5mm
• Compaction Times：(0~999)Times
• Laminated Wood Compaction Seat：457mm*200mm*200mm
• Cement Concrete Seat：120mm*460mm*480mm
• Size：540*540*1740mm
• Transport Package：Wooden Case for Gd-0702marshall Electric Compactor
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-0702 Test Mode Suitable to 101.6mm*63.5mm Compaction Times (0~999)Times Laminated Wood Compaction Seat 457mm*200mm*200mm Cement Concrete Seat 120mm*460mm*480mm Size 540*540*1740mm Transport Package Wooden Case for Gd-0702marshall Electric Compactor Trademark GOLD Origin Chongqing, China Production Capacity 100 Sets/ Month

Product Description

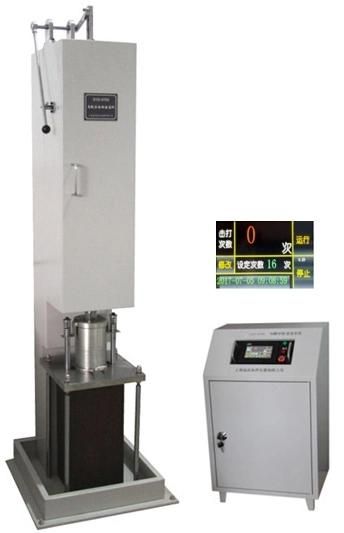

Gd-0702 Digital Automatic Asphalt Marshall Electric Compactor / Asphalt Gyratory Compactor



Introduction:

Digital Automatic Asphalt Marshall Electric Compactor is suitable to meet the requirements of standard
T0709 "Bituminous Mixtures Marshall Stability Test" in JTG E20-2011.

Digital Automatic Asphalt Marshall Electric Compactor is the specified device for molding
samples in the bituminous mixtures Marshall test.



Features:

1. Digital Automatic Asphalt Marshall Electric Compactor adopts floor type structure, and it is made of two
parts that is mechanical transmission and control box .The mechanical transmission device drive for electric
motor, reduction motor and chain.

2. Circuit control adopts single microprocessor control, and it can preset counter. The count value can be
choose from 0 to 999 readily .The compaction times can be set in advance that automatic compact ,automatic
stop ,automatic cut off power supply and close electric motor ,to ensure that stopped at the convenient hammer
lifting loading and unloading position .

3. Digital Automatic Asphalt Marshall Electric Compactor is suitable to compact 101.6mm*63.5mm sample.

Specifications:

Product name	Gd-0702 Digital Automatic Asphalt Marshall Electric Compactor / Asphalt Gyratory Compactor
Weight of the hammer	4536g+9kg
The drop of heavy hammer	457mm+1.5mm
Test mode	suitable to 101.6mm*63.5mm
Compaction rate	(60+5)time /min
Compaction times	(0~999)times
Laminated wood compaction seat	457mm*200mm*200mm
Cement concrete seat	120mm*460mm*480mm ;
Power supply	AC 220V+10% ,50Hz ;
The power of the electric motor	370w ;
Dimension	540mm*540mm*1740mm ;
Total weight	about 180kg.



Product Packing:

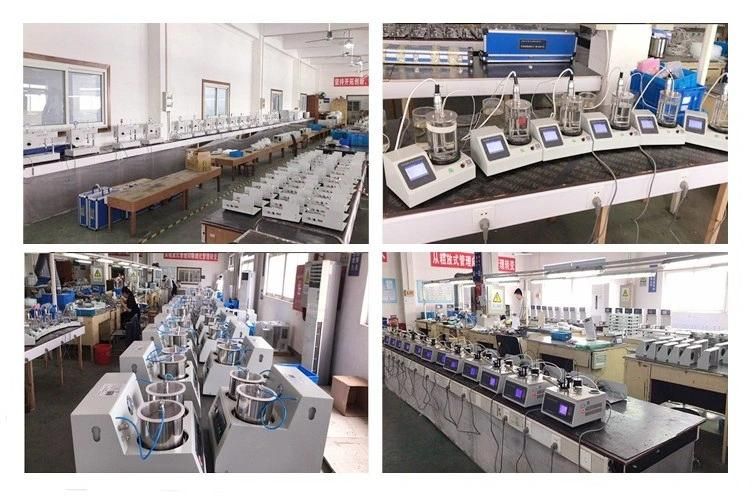

Our Company:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument
