Intelligent 35kv Underground Power Cable Fault Locator

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Max Diameter of Workpiece：16km
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：Cable Fault Locator
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：GD-TC
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Cable Fault Locator
  • Item Name：Intelligent 35kv Underground Power Cable Fault Loc
  • Application：Test Hv Arcing Fault of Cable
  • Cable Type：Electric Power Cable
  • Cable Voltage Level：Below 35kv
  • Cable Length：16km Max.
  • Detection Blind Area：1m
  • Reading Resolution：1m
  • Power Consumption：5va
  • Dimension：225*165*125mm
  • Warranty：1 Year
  • Transport Package：Veneer Case
  • Specification：Refer to the specifications
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9030849000
  • Production Capacity：10000 Sets,Month

Description

No.Item NameGD-TC Intelligent 35kV Underground Power Cable Fault Locator1Longest measured distance32km (100km for open wire )2Detection blind area1m3Reading resolution1m4Power consumption5VA5Service conditionstemperature: 0ºC~+40ºC(extreme temperature: -10ºC ~ +50ºC)6Relative humidity40ºC(20~90)%RH7Atmospheric pressure(86~106) Kpa8Dimension225mm×165mm×125mm9Weight2kg


Product Show:

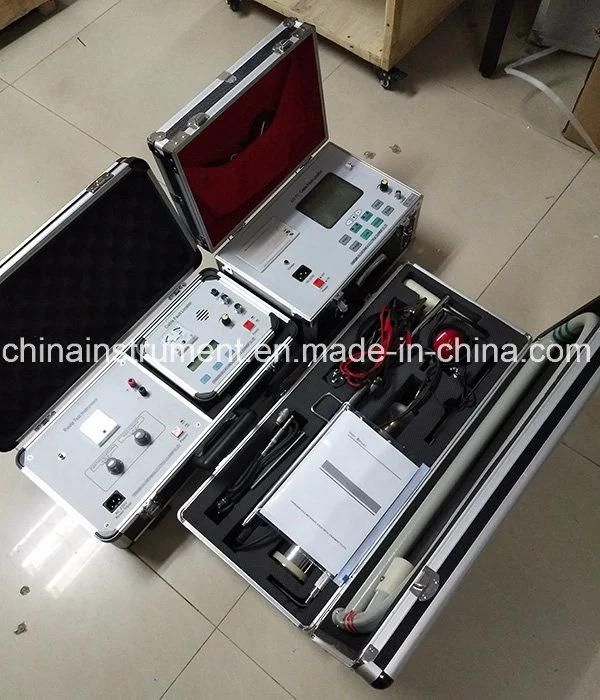

Intelligent 35kv Underground Power Cable Fault Locator
