• Model NO.：SQ-80
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Delivery Time：5 Days After Get Payment
• Color：Gray
• Certifications：Ce and ISO
• Transport Package：Wooden Box Package
• Specification：690× 740× 670mm
• Trademark：HST
• Origin：China
• HS Code：8461500090
• Production Capacity：500,Month

Basic Info.

Model NO. SQ-80 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Delivery Time 5 Days After Get Payment Color Gray Certifications Ce and ISO Transport Package Wooden Box Package Specification 690× 740× 670mm Trademark HST Origin China HS Code 8461500090 Production Capacity 500/Month

Product Description

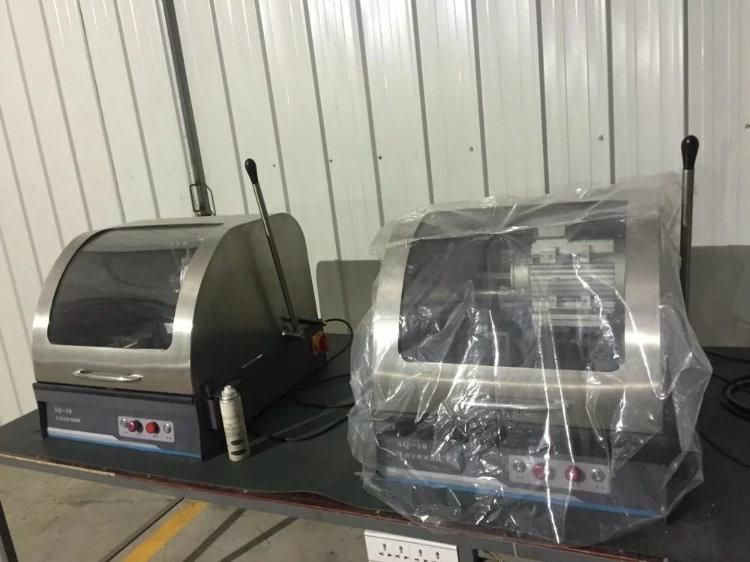

SQ-80mm diameter electronics metallurgical cutting precision machine



Application:

Model SQ-80 Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

2. Main specifications:

Model	SQ-80
Max. cutting diameter	80mm
Cooling method	T-slot worktable, dual drive vises Outside cooling system
Power supply	three phase four line (380v/50Hz)
Motor	Y2-1001-2-2 2.2 kw
Rotate Speed	2800r/min
Abrasive wheel	250X2X32mm
Cutting machine size	230X240mm
Dimension	690×740×670mm
Weight	85kg
