• Model NO.：ZLT-WM1
• Usage：Determine Endurance of Door System
• Certification：ISO17025 Calibration Provided
• Warranty：One Year
• Material：Stainless Steel Cabinet
• MOQ：1 PC
• Delivery：in 25-30 Days
• Transport Package：in Plywood Carton
• Specification：IEC60335-2-25 clause 18
• Trademark：ZLTJC
• Origin：Guangzhou, Guangdong, China
• HS Code：9031809090
• Production Capacity：Stcok Available

Basic Info.

Model NO. ZLT-WM1 Usage Determine Endurance of Door System Certification ISO17025 Calibration Provided Warranty One Year Material Stainless Steel Cabinet MOQ 1 PC Delivery in 25-30 Days Transport Package in Plywood Carton Specification IEC60335-2-25 clause 18 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stcok Available

Product Description

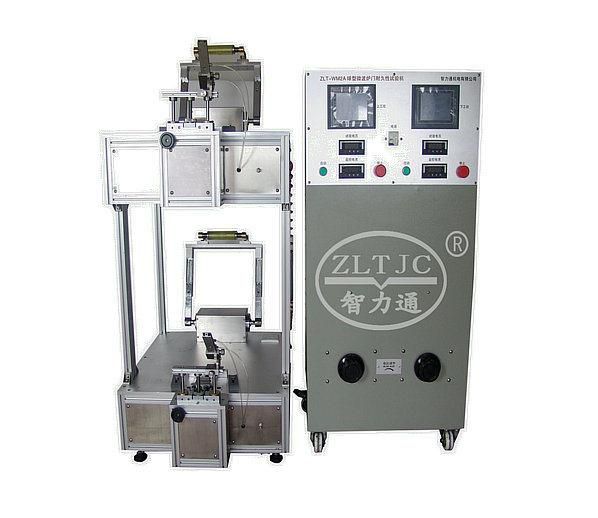

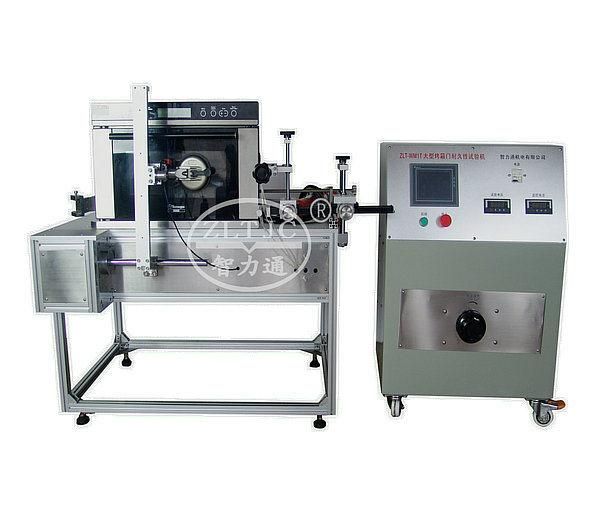

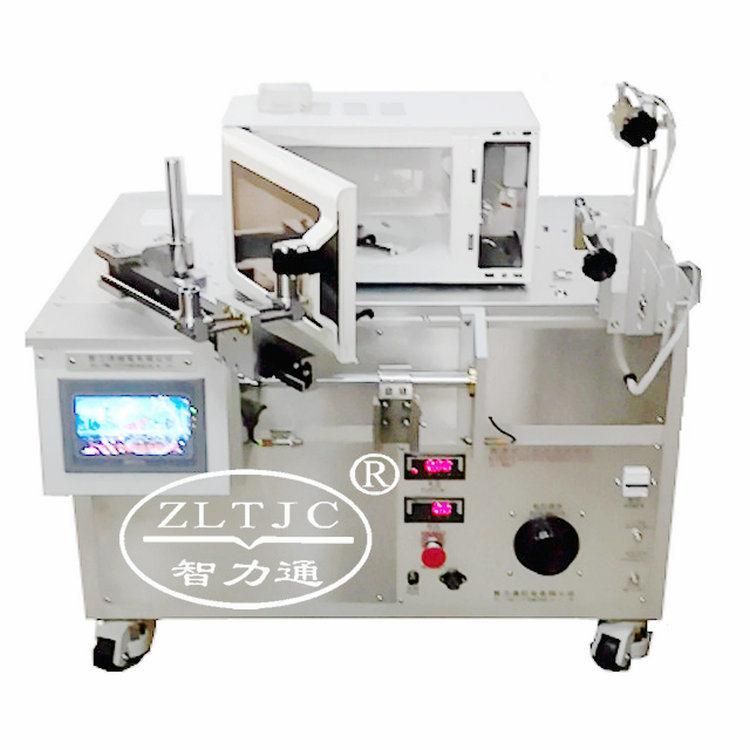

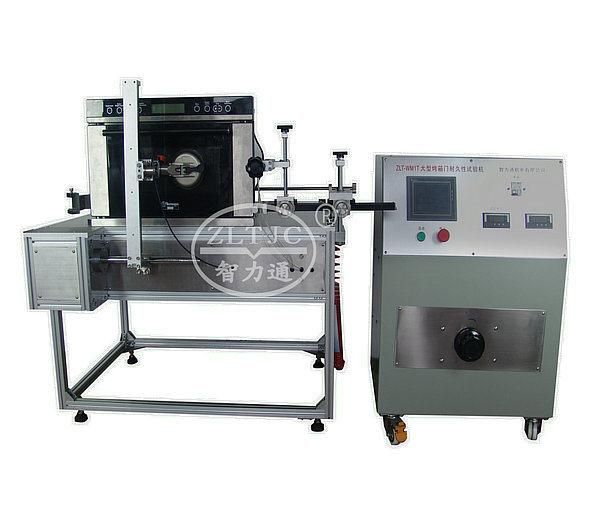

Microwave Oven Door Endurance Tester

Product details: Model ZLT-WM1.

To determine the endurance of the door system, including the hinges, microwave seals and other associated parts, shall be constructed to withstand wear that may be expected in normal use, according to the IEC60335-2-25 clause 18.

The door is opened and closed as in normal use. It is opened from the closed position to an angle between 135° And 180° Or the maximum possible angle, if this is less. The rate of operation is six cycles per minute.

Standard Outfit:

1 test frame, industrial molding Aluminum, maximum testing angle, 140° (open angle of microwave oven door), for horizontal or vertical sample forms,

1 electronic circuit with 10A plug for power below 2000W of the sample, with testing function, judge whether the current work, in the testing process, automatic stop if the sample no electricity work, counter displays test times and warning,

1 electronic predetermining pulse counter, 6-digit, to indicate the number of cycles and to disconnect the machine when reaching the preselected number of cycles.
Model ZLT-WM2, as type ZLT-WM1, but for 2 samples.
Power Supply: 220V 50Hz, other voltages on request.
