• Model NO.：ZLT-JL2
• Material：Stainless Steel
• MOQ：1 PC
• Delivery：in 20-25 Days
• Transport Package：Wooden Case
• Specification：IEC60529 figure 6, IEC60335-1 clause 15.1.1
• Trademark：ZLTJC
• Origin：Guangzhou, Guangdong, China
• HS Code：9031809090
• Production Capacity：Prepare Every Time!

Basic Info.

Model NO. ZLT-JL2 Material Stainless Steel MOQ 1 PC Delivery in 20-25 Days Transport Package Wooden Case Specification IEC60529 figure 6, IEC60335-1 clause 15.1.1 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Prepare Every Time!

Product Description

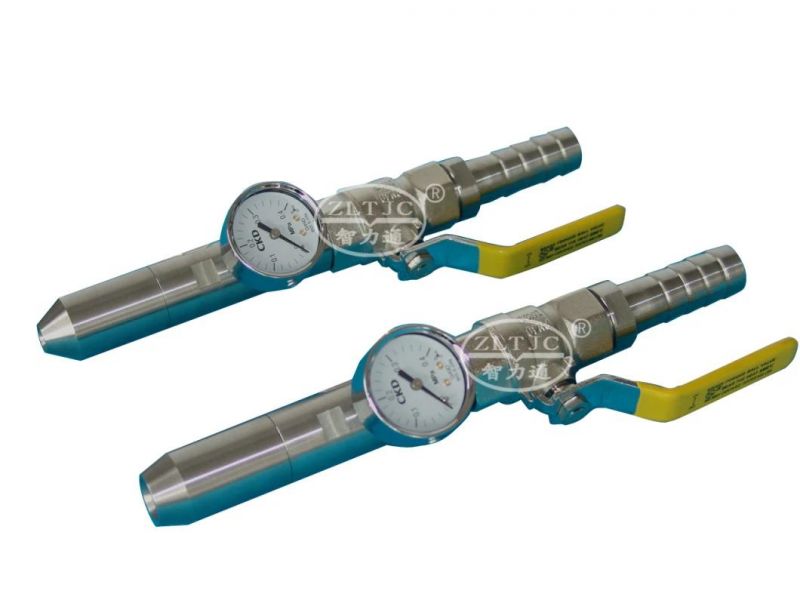

Water Jet Nozzle Set

Product details: Model ZLT-JL2.

For checking the protection against ingress of water to prove the degrees of protection with the second characteristic numerals 5 "Protected against water jets" or 6 "Protected against powerful water jets", in accordance with IEC60529 figure 6, IEC60335-1 clause 15.1.1, EN60950, IEC60598 figure 8.

Test Set consists of a jet handle that is equipped with a pressure meter. The interchangeable nozzles assemble easily to the jet handle. The nozzle element and tube within the handle of stainless steel.

Standard Outfit:

1 nozzle element,
1 handle, internal diameter 16 mm,
1 pressure gauge, almost independent of position,
1 flow control and stop valve with hand-wheel to adjust the water flow, with spout for hose of diameter 19 mm,
1 hose, diameter 19 mm, 3 m long, with 2 hose clamps.

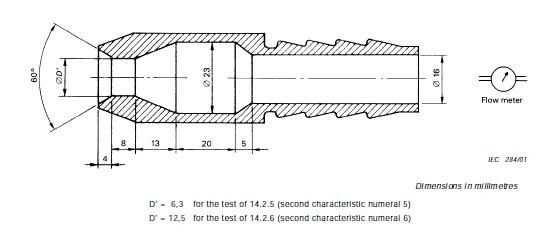

Nozzle diameter	for degree of protection:	measuring range  Of flow meter:	Model
6,3 mm	5	12.5±0.625l/min	ZLT-JL2.5
12,5 mm	6	100±5l/min	ZLT-JL2.6
