Laboratory Environment Thermal Cycle Chamber High Temperature Test Equipment
Dongguan Haida Equipment Co., Ltd.- Certification：CE, TUV, ISO
- Warranty：1 Year
- Internal Chamber Material：SUS#304 Stainless Steel, Mirror Finished
- External Chamber Material：Stainless Steel with Paint Spray
- Temperature Range：-70ºC~+180ºC
- Temperature Fluctuation：±1c
Base Info
- Model NO.：HD-E708
- Working Capacity：100 Liter
- Internal Dimension(W*D*H)：400*500*500mm
- External Dimension(W*D*H)：600*1080*1380mm
- Testing Hole：Diameter 50mm, for Cable Routing
- Cooling Speed (+85ºC~-40ºC)：15c,Min, Linear Line or Non-Linear Control (Withou
- Heating Speed (-40ºC~+85ºC)：15c,Min, Linear Line or Non-Linear Control (Withou
- Transport Package：Each Set Protected with Resin Fiber and PP Film,
- Trademark：Haida
- Origin：Guangdong, China
- HS Code：9032100000
- Production Capacity：15 Sets,Month
Description
Heating speed (-40ºC~+85ºC)15ºC/min, linear line or non-linear control (without loading) Refrigeration Unit System Air-cooled Compressor France Tecumseh Expansion system Electronic expansion valve Refrigerant R404A, R23
Chamber Design Features
1. Has cable ports are provided on the left side to allow easy wiring of specimens for measurement or voltage application;
2. The door equipped with hinges preventing auto-closing;
3. Can designed to comply with major environmental test standards like IEC, JEDEC, SAE...
4. This chamber is safety tested with CE certificate.
Programmable Controller1.Adopts Japan UMC100 programmable touch screen controller for easy and stable operation2.Step types include: ramp, soak, jump, auto-start, and end

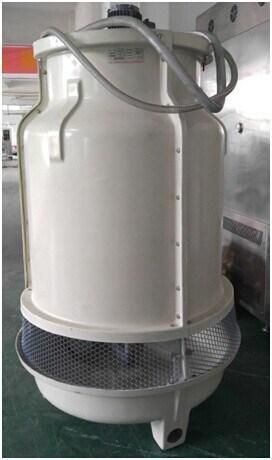

Water cooling Tower/ Water Cooling Chiller
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
After-service:
1.Consultation service
Professional training for every Haida Lab consultant, they know the requirements and steps you need to take to ensure the Lab solutions feasibility.
2. Remote technical support
Life time technical support for customers, Onsite service is optional. Save time and increase productivity by combining technical support with remote communication.
3. Technical training service
Professional Technical training by Haida qualified engineer
4. On-site installation services
Haida provides comprehensive equipment installation services in conjunction with calibration. Installation services are available with any of flexible delivery options.
5. Instrument maintenance and calibration service
Haida delivers the most comprehensive suite of calibration, test and repair services in the industry. We provide a cost-effective calibration services that encompasses a wide-range of verifiable, preventive maintenance options.
Chamber Design Features
1. Has cable ports are provided on the left side to allow easy wiring of specimens for measurement or voltage application;
2. The door equipped with hinges preventing auto-closing;
3. Can designed to comply with major environmental test standards like IEC, JEDEC, SAE...
4. This chamber is safety tested with CE certificate.
Programmable Controller1.Adopts Japan UMC100 programmable touch screen controller for easy and stable operation2.Step types include: ramp, soak, jump, auto-start, and end
