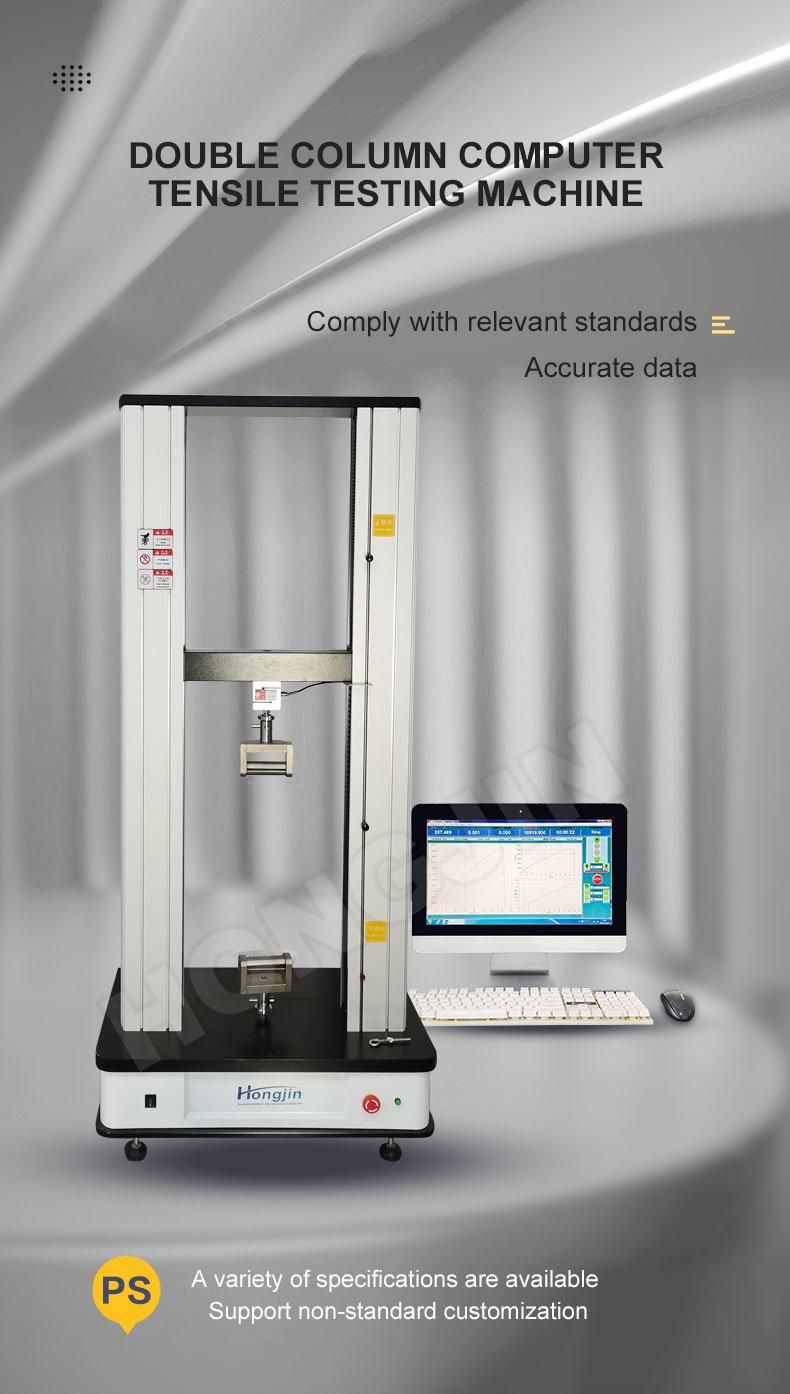

Hj-61 20kn Computer-Cotrolled Wood-Based Panel Universal Testing Machine

Dongguan Hongjin Test Instrument Co., Ltd.
  • After-sales Service：Lifetime Maintenance
  • Warranty：1 Year
  • Type：Tensile Testing Machine
  • Maxcapacity：20kn
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：HJ-61
  • Display：Digital
  • Weight：100-500Kg
  • Power Source：AC220V
  • Product Name：Universal Tensile Strength Tester
  • Test Items：Strength and Selective Elonga
  • Unit of Strength：Kg, N, Lb, G
  • Accurate Measurement Range：1%-100% Fs
  • Working Type：Automatic Loading
  • Resolution of Load：1,300000 of Full Scale
  • Resolution of Displacement：0.001mm
  • Power：Electronic
  • Transport Package：Fumigation-Free Standard Export Wooden Box
  • Trademark：Hongjin
  • Origin：China
  • Production Capacity：1000 Sets, Month

Description

Basic Info.

Model NO. HJ-61 Display Digital Weight 100-500Kg Power Source AC220V Product Name Universal Tensile Strength Tester Test Items Strength and Selective Elonga Unit of Strength Kg, N, Lb, G Accurate Measurement Range 1%-100% Fs Working Type Automatic Loading Resolution of Load 1/300000 of Full Scale Resolution of Displacement 0.001mm Power Electronic Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

This machine is suitable for testing the tensile strength, internal bonding strength, surface bonding strength, bonding strength, static bending strength, elastic modulus, shearing and screw holding force of various wood-based panels such as plywood, fiberboard and particle board.This machine is an ideal testing equipment for wood-based panel quality inspection departments and production companies.
Test itemsStrength and selective elongation
Unit of strengthKg, N, Lb, g
Capacity selection1,2,5,10,20,50,100,200,500kg,1000kg,2000kg,5000kg,10000kg,20000kg
Load cell accuracy0.5% or less
Test strokeMax 1200mm does not include fixture
Test speed0.1~1000mm/min can be adjusted arbitrarily
Stop modeUpper and lower limit safety setting, emergency stop button,
program force and elongation setting, and test piece breakpoint sensing

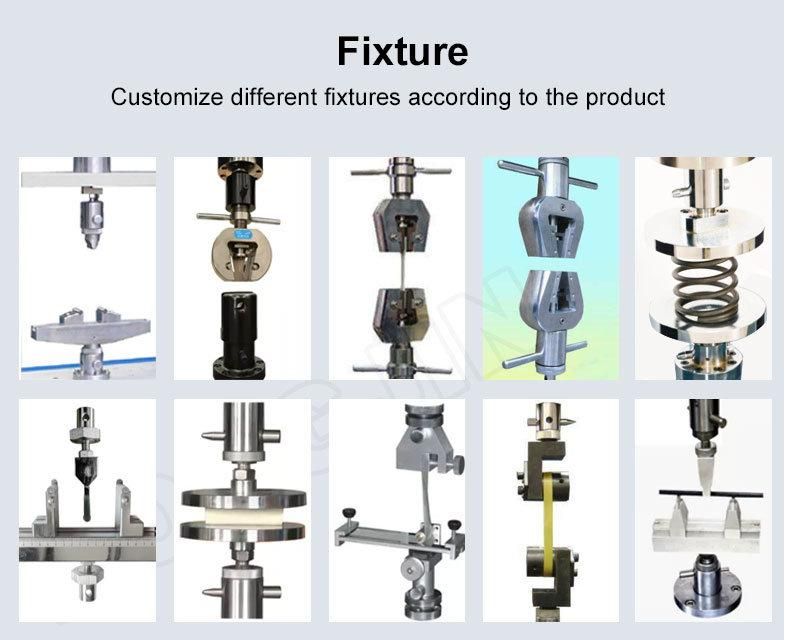

EquippedOne set of standard fixtures, one help book and one product warranty card
PowerAC servo motor
StandardComputer connection equipment (1 signal line, 1 decryption lock, 1 program CD)
MonitorPC display
Extension unitmm,cm,in,%
Power resolution1/100,000
Test effective space400mm diameter range
