• Model NO.：HJ- 64
• Display：Digital
• Weight：100-500Kg
• Power Source：AC220V
• Product Name：Universal Tensile Strength Tester
• Test Items：Strength and Selective Elonga
• Unit of Strength：Kg, N, Lb, G
• Accurate Measurement Range：1%-100% Fs
• Working Type：Automatic Loading
• Resolution of Load：1,300000 of Full Scale
• Resolution of Displacement：0.001mm
• Power：Electronic
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ- 64 Display Digital Weight 100-500Kg Power Source AC220V Product Name Universal Tensile Strength Tester Test Items Strength and Selective Elonga Unit of Strength Kg, N, Lb, G Accurate Measurement Range 1%-100% Fs Working Type Automatic Loading Resolution of Load 1/300000 of Full Scale Resolution of Displacement 0.001mm Power Electronic Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Usage
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.


Test items	Strength and selective elongation
Unit of strength	Kg, N, Lb, g
Capacity selection	1,2,5,10,20,50,100,200,500kg,1000kg,2000kg,5000kg,10000kg,20000kg
Load cell accuracy	0.5% or less
Test stroke	Max 1200mm does not include fixture
Test speed	0.1~1000mm/min can be adjusted arbitrarily
Stop mode	Upper and lower limit safety setting, emergency stop button,  program force and elongation setting, and test piece breakpoint sensing

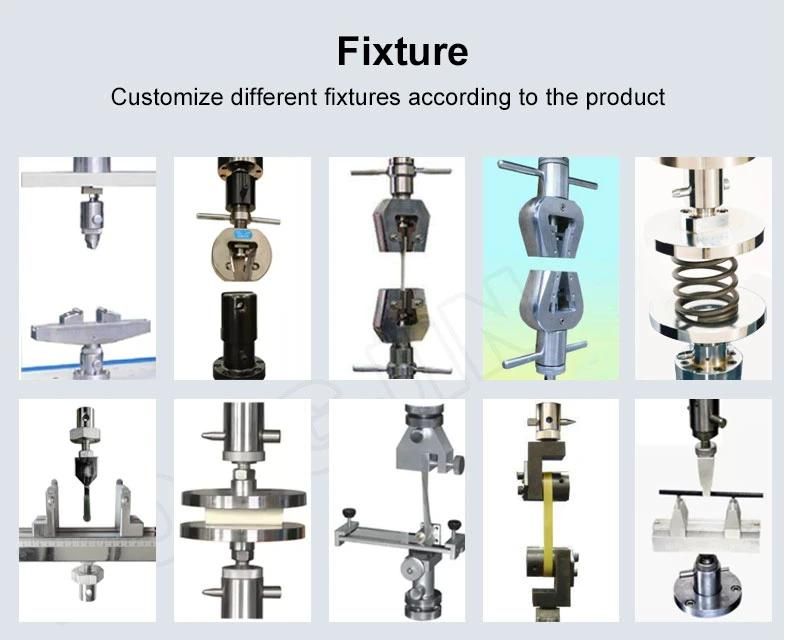

Equipped	One set of standard fixtures, one help book and one product warranty card
Power	AC servo motor
Standard	Computer connection equipment (1 signal line, 1 decryption lock, 1 program CD)
Monitor	PC display
Extension unit	mm,cm,in,%
Power resolution	1/100,000
Test effective space	400mm diameter range

Pull Test Machine,Tensile Pull Strength Tester/Peel strength tester
Design standards:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,GB/T 453,ASTM E4,ASTM D1876,ASTM D638,ASTM D412,ASTM F2256,EN1719,EN 1939,ISO 11339,ISO 36,EN 1465,ISO 13007,ISO 4587,ASTM C663,ASTM D1335,ASTM D882 or ASTM D5034,ASTM F2458,EN 1465,ISO 2411,ISO 4587,ISO/TS 11405,ASTM D3330,FINAT.......

Features:
1. The machine has completely changed the new material testing machine for the whole calculator operation, which was developed from the shortcomings of the conventional material testing machine, which is bulky, complex and complicated.
2. The structure adopts the steel plate and aluminum extruded plate with advanced baking paint, with high precision, low resistance, seamless precision screw and guiding column, which improves the load efficiency and structural rigidity.
3. The control system adopts the motor of the whole digital communication server to ensure that the transmission system is high in efficiency, stable in transmission, low in noise and accurate in speed.
4. Microcomputer system by commercial calculator as the main control machine, cooperate with the company's testing software, can complete all of the test parameters setting, working state control, data acquisition and processing analysis, result display and printing output;
5. Dedicated measurement and control system is specially designed for microcomputer electronic universal testing machine.It can stretch, compress, bend, shear, tear and peel off test.The data acquisition, preservation, processing and printing test results of PC and interface board are adopted.It can calculate the maximum force, yield force, average stripping force, maximum deformation, yield point, elastic modulus and other parameters;It can perform curvilinear processing, graphical graphical interface, flexible data processing,  database support, making the system more powerful.
