• Model NO.：HJ- 60
• Display：Digital
• Weight：100-500Kg
• Power Source：AC220V
• Product Name：Universal Tensile Strength Tester
• Test Items：Strength and Selective Elonga
• Unit of Strength：Kg, N, Lb, G
• Accurate Measurement Range：1%-100% Fs
• Working Type：Automatic Loading
• Resolution of Load：1,300000 of Full Scale
• Resolution of Displacement：0.001mm
• Power：Electronic
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ- 60 Display Digital Weight 100-500Kg Power Source AC220V Product Name Universal Tensile Strength Tester Test Items Strength and Selective Elonga Unit of Strength Kg, N, Lb, G Accurate Measurement Range 1%-100% Fs Working Type Automatic Loading Resolution of Load 1/300000 of Full Scale Resolution of Displacement 0.001mm Power Electronic Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Application:
Computerized electronic universal testing machines are designed and manufacture according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.


Test items	Strength and selective elongation
Unit of strength	Kg, N, Lb, g
Capacity selection	1,2,5,10,20,50,100,200,500kg,1000kg,2000kg,5000kg,10000kg,20000kg
Load cell accuracy	0.5% or less
Test stroke	Max 1200mm does not include fixture
Test speed	0.1~1000mm/min can be adjusted arbitrarily
Stop mode	Upper and lower limit safety setting, emergency stop button,  program force and elongation setting, and test piece breakpoint sensing

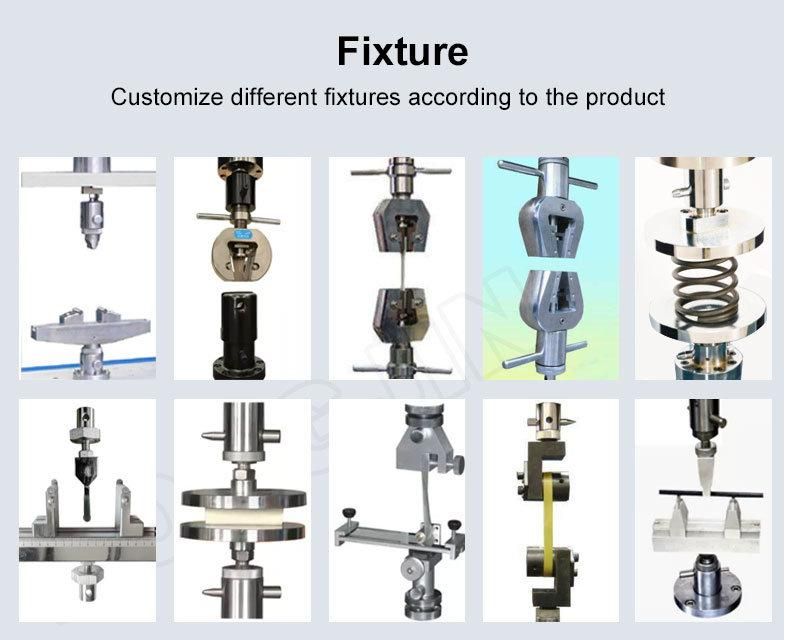

Equipped	One set of standard fixtures, one help book and one product warranty card
Power	AC servo motor
Standard	Computer connection equipment (1 signal line, 1 decryption lock, 1 program CD)
Monitor	PC display
Extension unit	mm,cm,in,%
Power resolution	1/100,000
Test effective space	400mm diameter range
