• Model NO.：AS-DB-200
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Max. Height：2 Meters
• Drop Method：Free Falling
• Wight of Steel Ball：112,198,225,357,533,1042,2280g Optional Steel Ba
• Weight (Kg)：65
• Power：AC220V
• Rail：According to Customer′s Requirement
• Factory：Yes
• OEM：Yes
• Transport Package：Wooden Case
• Specification：AS-DB-200
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：90248000
• Production Capacity：200sets,Month

Basic Info.

Model NO. AS-DB-200 Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Max. Height 2 Meters Drop Method Free Falling Wight of Steel Ball 112,198,225,357,533,1042,2280g Optional Steel Ba Weight (Kg) 65 Power AC220V Rail According to Customer′s Requirement Factory Yes OEM Yes Transport Package Wooden Case Specification AS-DB-200 Trademark ASLi Origin Guangdong, China HS Code 90248000 Production Capacity 200sets/Month

Product Description

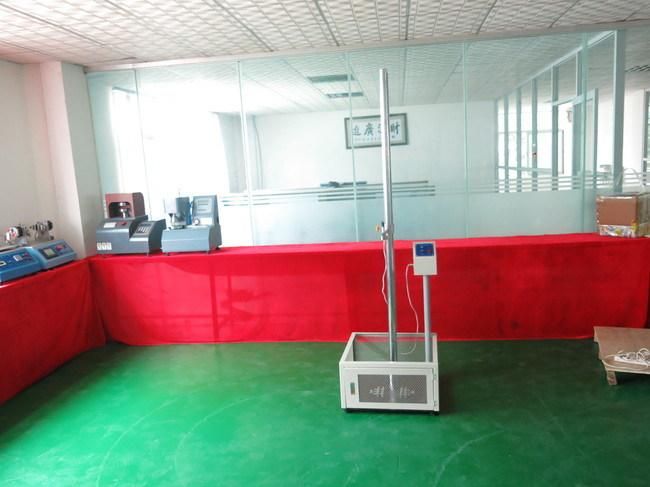

Steel Ball Drop Ball Impact Tester Test Equipment for Plastic, Ceramics, Acrylic and Glass Fiber


Applications:
The Drop falling ball test machine for Impact of Steel Ball Test for mobile phone, PDA, digital camera, electronic dictionary, and to check the anti-impact strength of these products.

It serves for plastic, ceramic, acrylic, glass fiber, paint and other materials. The machine is to adjust at a certain height with steel balls of a certain weight, and the ball freely fall against the specimen, so that to judge the quality of the test products according to the extent of the damage. The machine as an ideal test equipmen has obtainted a widespread praise from most of the manufacturers, and also complies with test standards of IEC 62368-1 ,

Drop Ball Impact Tester Technical Parameters:

Model	AS-DB-200
Max. Height	0 ~ 2 m
Drop Method	Free falling
Weight and diameter  of Steel Ball	One set steel ball: 112g(Φ30mm), 198g(Φ36mm), 225g(Φ38mm), 357g(Φ41mm), 533g(Φ51mm), 1042g(Φ64mm), 2280g(Φ82mm) Steel ball standard: JIS K-5400
Dimension	Approx. W530*H2040*D530 mm
Packed Dimension	Approx. W640*H2210*D640 mm
Weight	100 Kg
Power	AC220V, 1 phase 3 lines
Rail	According to customer's requirement

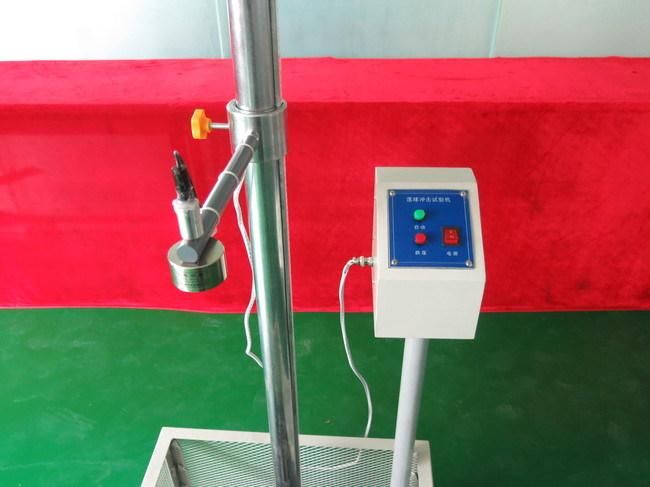

Drop Ball Impact Tester Features:
1. Aluminium frame construction
2. Electromagnet
3. Foot Switch
IEC 62368-1  Steel Ball Drop Ball Impact Tester Test Equipment for Plastic, Ceramics, Acrylic and Glass Fiber
