• Model NO.：Ux-260
• Sample Chamber：300×300×100mm
• Test Environment：Non-Vacuum Test
• Test Method：X - Ray Fluorescence, Non - Destructive
• Detection Area：Gold, Silver, Platinum and Palladium
• Transport Package：Strong Wooden Case
• Trademark：HAIDA
• Origin：China
• Production Capacity：300 Sets,Year

Basic Info.

Model NO. Ux-260 Sample Chamber 300×300×100mm Test Environment Non-Vacuum Test Test Method X - Ray Fluorescence, Non - Destructive Detection Area Gold, Silver, Platinum and Palladium Transport Package Strong Wooden Case Trademark HAIDA Origin China Production Capacity 300 Sets/Year

Product Description

Metal Industry Non-vacuum Alloy Metal Detector Product Introduction:
Noble metal nondestructive analyzer is a kind of spectral analyzer which USES fluorescence spectrum to analyze the purity.Spectral precious metal analyzer has the characteristics of nondestructive, rapid and accurate, and is widely used in jewelry production, processing, sales, quality inspection and other departments.

The most important feature of the spectral precious metal detector is that it can nondestructive test the precious jewelry, and the metal under test is free from any damage to its appearance, internal quality and weight.


Application Scope:

1. Color inspection of incoming materials, process abrasive, recovered materials and finished products of jewelry factory

2. Detection of recovered components of precious metals/gold products of the bank

3. Inspection of finished products and recovered components of jewelry in gold shops

4. Pawnshop appraisal of the pawning value of precious metals and jewelry

4. Gold, silver and precious metals testing institutions, laboratories and teaching institutions

Product Testing Scope:

1. The contents of dozens of elements from K to U in gold (Au), platinum (Pt), silver (Ag), palladium (Pd) and other metals, such as Au, Ag, Pt, Pd, Cu, Ni, Zn, etc., can be determined as % percent and K gold.

2.Ux-260 is a 149eV high resolution detector that can detect adulterated iridium (Ir), tungsten (W) and other components in gold and platinum.

3. Test content range: 0.01-99.99%,

4. Test accuracy: 0.1% (over 96%);

5. Qualitative and quantitative functions, including taking photos, micro-motion adjustment and jewelry fixation.

Standard Parameters:

Test method	X - ray fluorescence, non - destructive
Detector type	Si-PIN electric refrigeration
Detector resolution	145 eV
High voltage range	5-50kv, 50W
X-ray tube parameters	5-50kv, 50W, side Windows
Light tube target material	Mo target
Filters	composite filter for precious metals
Measurement time	30-120 seconds
Measurement range	1ppm - 99.99%
Display unit	%, K
Software approach	FlexFP
Detection area	Gold, silver, platinum and palladium
Sample chamber	330×360×100mm
Collimator	Ø 0.5 mm and 2 mm Ø

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

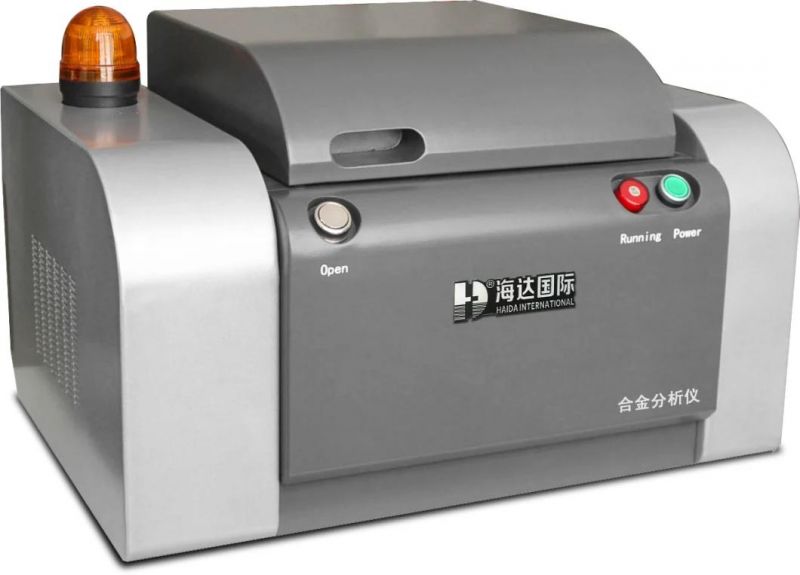

Product Image:

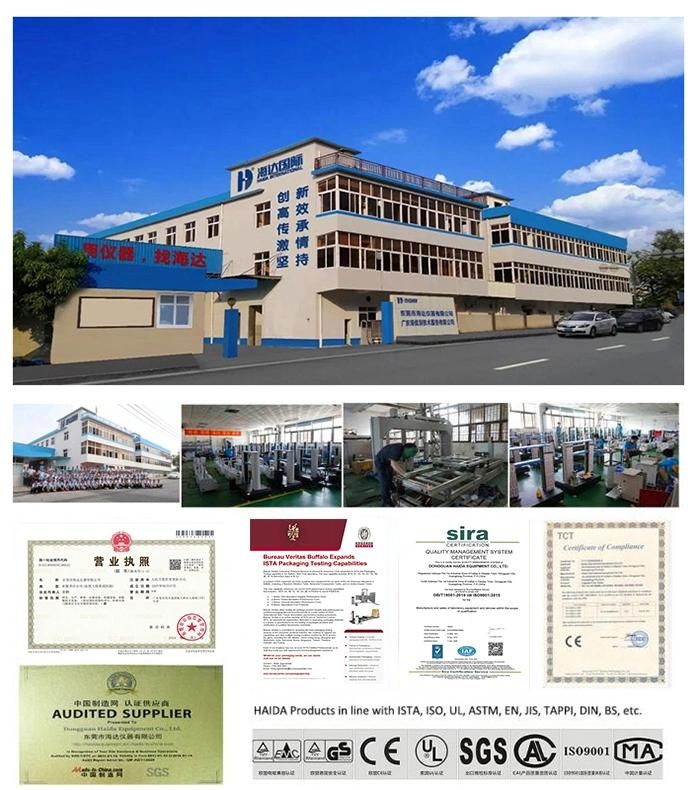

The introduction of Haida:
Founded in 2004, Haida International Equipment Co., Ltd (Haida) is Located in Dongguan city, Guangdong Province, China, who has more than 10 years experience for Test Equipment. Haida is professionally engaged in production and sales of various kinds of testing equipment.

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Company Serive:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
