• Model NO.：WDW-200,300KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Delivery Time：7-25 Days After Payment
• Standard：ASTM GB Jin
• Certification：ISO Ce
• Transport Package：Standard Export Packing
• Specification：1000*650*2150mm
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDW-200/300KN Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Delivery Time 7-25 Days After Payment Standard ASTM GB Jin Certification ISO Ce Transport Package Standard Export Packing Specification 1000*650*2150mm Trademark HST Origin China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

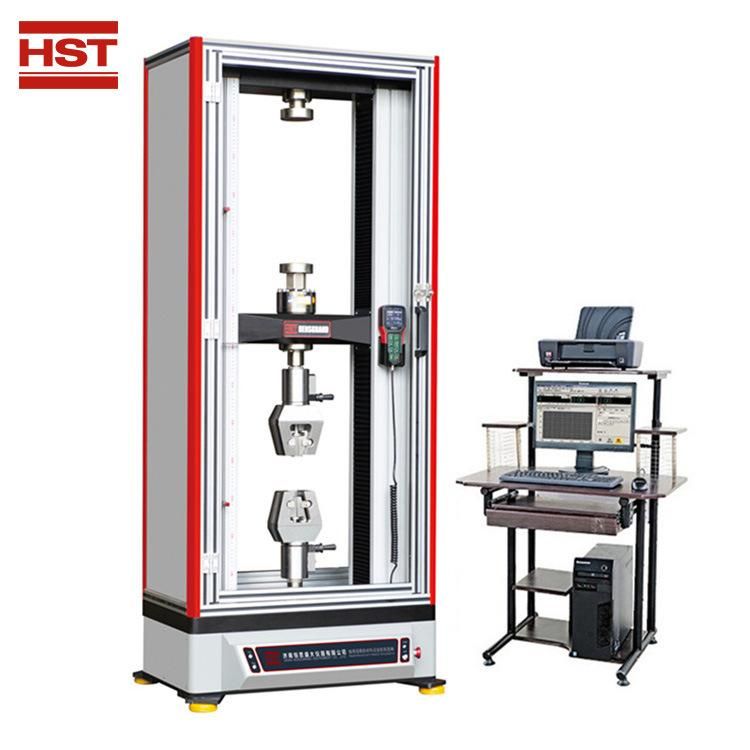

200/300KN computer electronic universal/tensile/peeling/bursting testing equipment for metal/bar/tube


1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

Model	WDW-200/300
Max. Load	200/300 KN
Structure	Four-column Floor Model (Upper Is Compression And Lower Is Tensile)
Control Method	Computer Automatic Control
Load Accuracy	1 Class
Load Range	2%~100% FS
Resolution	1/300000
Measuring Range Of Deformation	0.2%~100%
Accuracy Indication Of Deformation	≤±0.5%
Disp. Indicating Relative Error	≤±1%
Displacement Resolution	0.04um
Adjusting Range Of  Displacement Rate	0.05~200mm/min (Can be customized)
Control Precision Of Displacement Rate	When rate < 0.5mm/min, within ± 1% of setting value; When rate ≥ 0.5mm/min, within ± 0.5% of setting value.
Scope Of The Consistent Load Deformation And Displacement Control	0.5%~100%FS
Accuracy Of The Consistent Load Deformation And Displacement Control	Preset value≥10%FN, within the ±0.1% of preset value; Preset value<10%FN, within the ±1% of preset value.
Tensile Space	550mm (Can be customized)
Compression Space	550mm (Can be customized)
