1. Suitable for IPX3, IPX4, IPX5, IPX6 waterproof level test of products.

2. The shell is made of domestic high-quality steel plate, and the surface is spray-painted, which is beautiful and durable.

3. The inner box, turntable, and swing tube are made of SUS304 # stainless steel plate to ensure that it will not rust for a long time.

4. Box-type structure; with its own water tank for circulating water; the water tank is equipped with a water level floating ball valve, which automatically controls the water inlet and has a low water level alarm detection.

5. There is a transparent observation window (tempered glass material) on the door, and LED lighting is installed in the box, which is convenient to observe the internal test situation.

6. IPX34: The swing tube drive uses a domestic high-quality servo stepper motor. The swing speed and angle of the swing tube can be adjusted accurately. There is no out-of-step problem. )

7, IPX56: according to IEC60529 specifications (as shown below):

8. Filtration measures: Standard high-precision filters can effectively filter impurities in tap water; the filter element can be replaced regularly.

9. Turntable drive: Using domestic high-quality stepping motor, the speed and angle can be set (adjustable) on the touch screen, precise and steplessly adjustable within the standard range, and can automatically control forward and reverse rotation (forward and reverse: (Suitable for energized test with sample to prevent winding)).

10. The test box is equipped with a sample power socket (AC220, 10A). The on and off time of the sample power can be controlled by the program: power failure (0-999min)-power on (0-999min)-power failure (0-999min), suitable for samples The test needs to be powered on and off.

11. The test time can be set on the touch screen, and the setting range is: 0-999min (adjustable).

12. The core control system uses 7-inch touch screen + Panasonic PLC, electrical components are imported brands such as LS, Omron, etc. The wiring process meets national standards, the layout of the electrical board is reasonable, the wiring is firm, and the labeling is clear.

without direct sunlight, near the non-flammable, explosive materials, non-corrosive items or other sources of pollution; no strong magnetic interference; well ventilated but can not have strong wind blowing;

Rear side, left and right side, top of the device: 800mm

Front side of equipment: 1400mm

Temperature: 5 C ~ 35 C

Air pressure:86kPa~106kPa

1. Customer required to configure the equipment with a leakage current protective air switch of the corresponding capacity at the installation site, and this switch must be used independently for this equipment

2.It is prohibited to use the switch or power socket.

3.The location of the leakage protection air switch not more than 2 meters from the device

1. The user is required to configure a water source for the equipment at the installation site, the water pressure is not lower than 0.2Mpa, and install a DN15 water tap.

2.The faucet is not more than 2 meters from the equipment

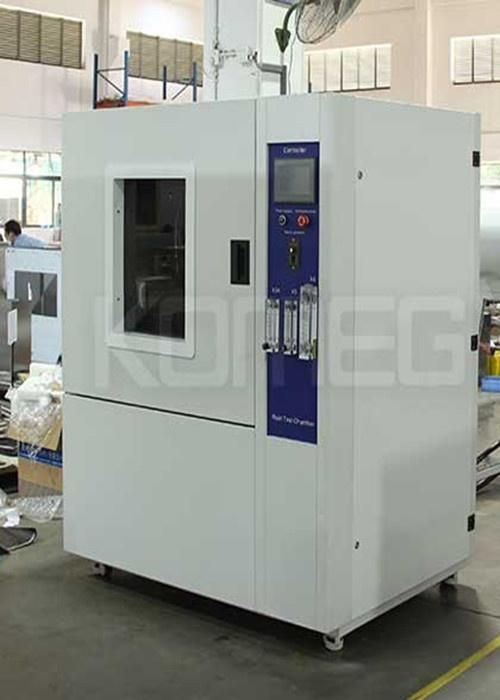

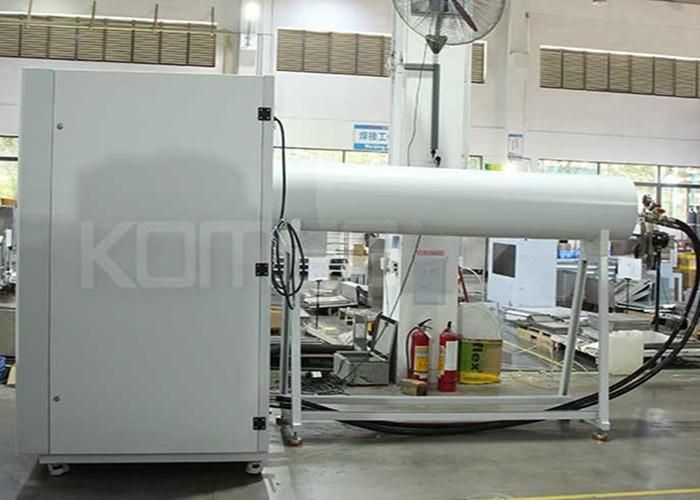

Detailed Photos
