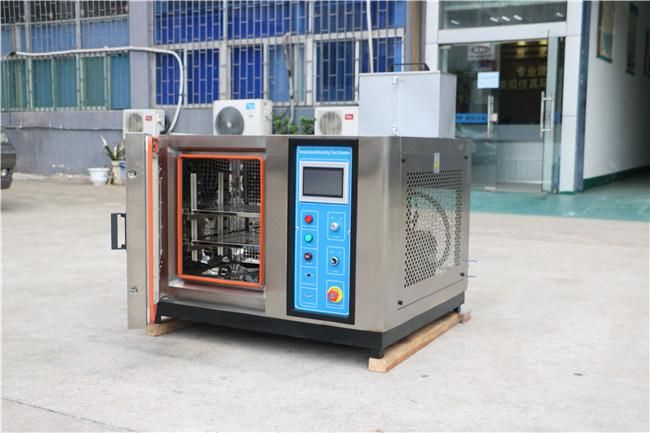

Constant Temperature Testing Chamber, Environmental Temperature and Humidity Chamber
Ai Si Li (China) Test Equipment Co., Limited- Brand:Asli
- Certificate:Ce.OEM.SGS
- Low Temperature:20 Dgree to -70 Dgree
- High Temperature:150 Degree(200dgree)
- Inner Material:304# Stainless Steel
- Outer Material:Stainless Steel
Base Info
- Model NO.:TH-150
- Cooling System:Water Cooling or Air Cooling
- Compressor:French" Tecumseh" or Germany"Bizter"
- Humidity Range:20% to 98%
- Transport Package:Export Standard Plywood or According to Customer
- Specification:TH SERIES
- Trademark:ASLi
- Origin:China
- HS Code:84798999
- Production Capacity:50 Set Per Month
Description
TH-150(A~F) TH-225(A~F) TH-408(A~F) TH-800(A~F) TH-1000(A~F) Internal Dimension
WxHxD (mm) 400x500x400 500x600x500 600x750x500 600x850x800 1000x1000x800 1000x1000x1000 Internal Dimension WxHxD (mm) 950x1650x950 1050x1750x1050 1200x1900x1150 1200x1950x1350 1600x2000x1450 1600x2100x1450 Temperature Range Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC)
High Temperature 150ºC Humidity Range 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier) Indication relolution/Distribution
uniformity of temperature and humidity 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. Control Accuracy of Temperature
and Humidity ±0.5ºC; ±2.5% R.H. Temperature Rising/
Falling Velocity Temperature rising approx. 0.1~3.0ºC/min ; temperature falling approx. 0.1~1.5ºC/min;
( Falling Min.1.5ºC/min is optional) Inner and Outer Material Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated. Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials Cooling System Wind cooling or water cooling, (single segment compressor-40ºC, double segment compressor -70ºC) Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection Optional Accessories Inner door with operation hole , Recorder, Water Purifier, Dehumidifier Compressor French Tecumseh Brand, Germany Bizer Brand Power AC220V 1∮ 3 lines, 50/60HZ , AC380V 3∮ 5 lines , 50/60HZ Approx. Weight (Kg) 150 180 250 320 400 450
WxHxD (mm)
High Temperature 150ºC
uniformity of temperature and humidity
and Humidity
Falling Velocity
( Falling Min.1.5ºC/min is optional)
