• Model NO.：ZLT-CD2
• Usage：Test and Calibrate Spring Impact Hammer
• Certification：ISO17025 Calibration Provided
• Warranty：One Year
• Material：Stainless Steel
• MOQ：1 PC
• Delivery：in 25-30 Days
• Transport Package：in Plywood Carton
• Specification：IEC60068-2-75
• Trademark：ZLTJC
• Origin：Guangzhou, Guangdong, China
• HS Code：9031809090
• Production Capacity：Stock Available

Basic Info.

Model NO. ZLT-CD2 Usage Test and Calibrate Spring Impact Hammer Certification ISO17025 Calibration Provided Warranty One Year Material Stainless Steel MOQ 1 PC Delivery in 25-30 Days Transport Package in Plywood Carton Specification IEC60068-2-75 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock Available

Product Description

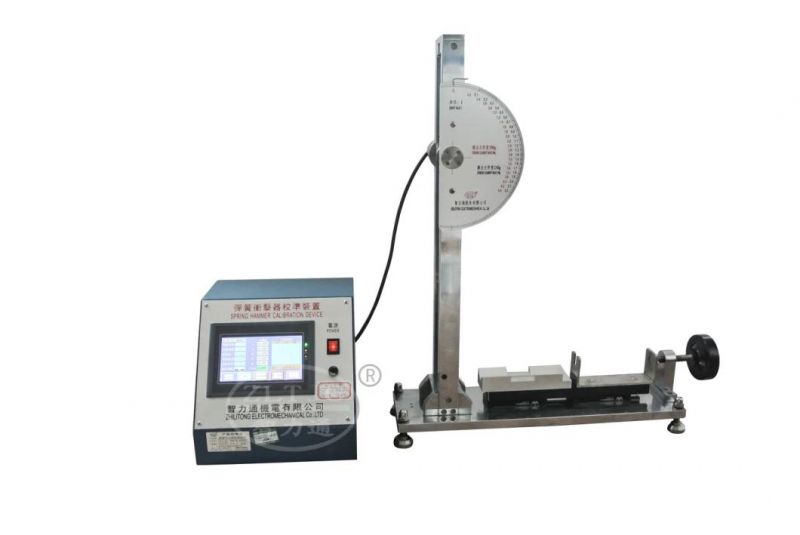

Spring Hammer Calibration Device:

Model ZLT-CD:

For testing and calibrating spring-operated impact hammer, in accordance with IEC60068-2-75/1997-08 Annex B, Figure B. 1 to B. 4 with scale for impact energies from 0, 2J to 1J, 2J.
The principle of this calibration procedure is to compare the energy provided by a spring hammer, which is difficult to measure directly, to the energy of a pendulum, calculated from its mass and height of fall.

Standard Outfit:

1 Pendulum with rigidly clamped spring at the lower end,
1 frame with bearing for the pendulum,
1 scale plate with drag pointer, scale of anodized alumininum,
2 release bases at the frame,
1 base plate with removable release device.
· Impact energy: Max. 2J.
· Pendulum: Steel.
· Diameter pendulum: 20mm.
· Length pendulum 635mm ± 2, 5mm.
· Pendulum H: 120mm ± 2mm.
· Pendulum D: 20mm ± 0, 5mm.
· Pendulum W: 4mm ± 0, 01mm.
· Release device: AC. Mechanic.
