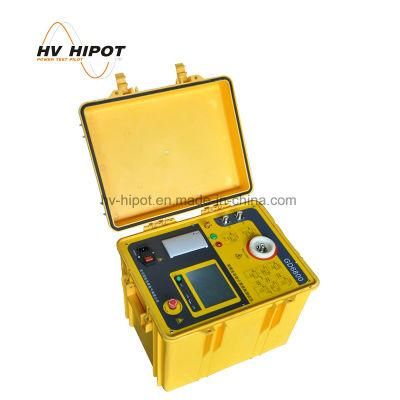

Capacitance and Dissipation Factor Tester Tan Delta Tester for Transformer GD6800
HV Hipot Electric Co., Ltd.- Display：Digital
- Usage：Electric Component Tester
- Type：Capacitance Measuring Tester
- Environment：Room Temperature
- Warranty：With Warranty
- Power Source：AC 85V-265V
Base Info
- Model NO.：GD6800
- Weight：〉10Kg
- Installation：Direct Connected
- Customized：Customized
- Anti-interference principle：Frequency conversion method
- Working condition：-15degree~40degree,RH<80%
- Power supply：AC 220V,Generator can be used.
- High voltage output：0.5KV~10KV, Every 0.1kV
- Self-excitation power：AC 0V~50V,15A
- Dimension：445*345*380mm
- Product name：Capacitance and Dissipation Factor Tester Tan Delt
- Transport Package：Wooden Box
- Specification：ISO9001
- Trademark：HV Hipot
- Origin：China
- Production Capacity：5000 Sets,Year
Description
High Voltage Output0.5 - 10kV, every 0.1KV Accuracy: 2% Max. current: 200mA Capacity: 2000VA Accuracy Tgδ: +-(1.0% of the reading+0.040%),
Cx: +-(1.0% of the reading+1.00PF) Resolution Tgδ : 0.001% Cx: 0.001pF Measuring range tgδ: Without limit C x: 15pF < Cx < 300nF 10KV Cx < 60 nF
5KV Cx < 150 nF
1KV Cx < 300 nF
CVT test Cx < 300 nF Power Supply AC 220V+-10%, Generator can be used Memory capacity 200 groups, USB flash disk storage is supported. Conditions of use -15 -40degree Humidity <80% Dimensions 445 (L) *345 (W) *380 (H) Weight 23.5 kg
Cx: +-(1.0% of the reading+1.00PF)
5KV Cx < 150 nF
1KV Cx < 300 nF
CVT test Cx < 300 nF
