• Model NO.：XHGG501A
• Cable Type：Shielded
• Power：Electricity
• Certification：CE
• Customized：Customized
• Color：Orange
• Transport Package：Wooden Box with Foam Inside
• Specification：350mm*280mm*170mm
• Trademark：XZH TEST
• Origin：China Xi′ an
• HS Code：8543201000
• Production Capacity：2000 Pieces ,Year

Basic Info.

Model NO. XHGG501A Cable Type Shielded Power Electricity Certification CE Customized Customized Color Orange Transport Package Wooden Box with Foam Inside Specification 350mm*280mm*170mm Trademark XZH TEST Origin China Xi′ an HS Code 8543201000 Production Capacity 2000 Pieces /Year

Product Description

Description:

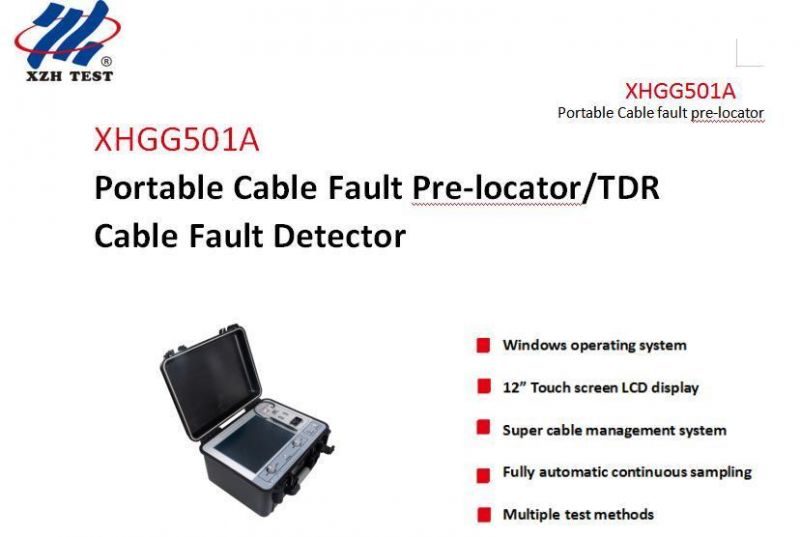

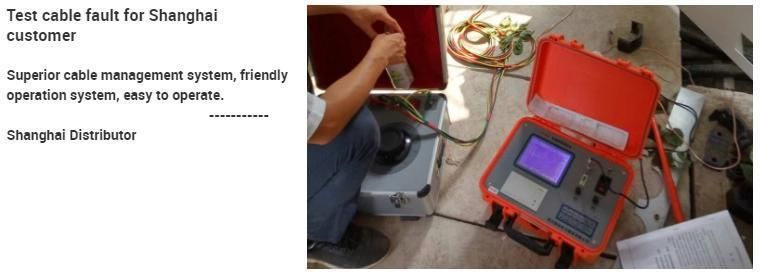

XHGG501A is designed for underground power cable fault per-locating, to provide quick accurate and safe measurement solution. Measure the power cable of different sections, different media of various materials, short circuit, open circuit short line fault and the low and middle resistance fault. Great for KV substation, civil power supply system and power energy sources applications.
Main Function
Windows operating system, touch operation mode, wireless expert online guidance, scientific cable management, real-time report generation; 10 pulse 10 flashover wave superposition analysis; built-in operation instructions, cable data, measured cases, etc.;
With ranging, speed measurement, cable management and other functions;
100MHz sampling frequency, minimum resolution 0.5m (100m/us)
Fully automatic continuous sampling, never miss any discharge waveform;
Test method: flashover method, low pressure pulse method, multiple waveform analysis method
Technical Data
12" industrial-grade computer control, Touch screen LCD display.
Windows operation system, Super cable management system and automatic generate testing report.
Measuring method: TDR Measurement method flashover sampling and impulse current method
Pulse amplitude: 100Vp-p
Pulse width: 0.1uS ...2uS
Output impedance:50Ω
Resolution Ratio:0.5m
Dynamic range:>80db
Measuring distance :15m ...30km
Dead zone: None
Accuracy of distance measurement:±1%
Power supply: AC 220V+/-10% 50Hz
DC 12 V / 10 Ah, continuous work for 4 hours
Data storage: 32GB for data.
Weight:9.9kg
Dimensions: 490mm*350mm*210mm
Working conditions: temperature: -10 ºC ~ +45 ºC Relative humidity:90%
