• Model NO.：GD-8019A
• Sample Quantity：5
• Working Temperature：160~165celsius
• Air Compressor：Yes
• Transport Package：Wooden Case for Existent Gum Apparatus
• Specification：1150*520*910 CM
• Trademark：gold
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-8019A Sample Quantity 5 Working Temperature 160~165celsius Air Compressor Yes Transport Package Wooden Case for Existent Gum Apparatus Specification 1150*520*910 CM Trademark gold Origin China Production Capacity 100 Sets/ Month

Product Description

Motor Gasoline and Aviation Fuel Existent Gum Test Apparatus

 Summary:
 existent gum test apparatus is designed and made as per standards ASTM D381 Standard test method for gum content in fuels by jet evaporation.

It is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel)


I. Main technical features:
1. It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 5 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 1 ~ 4 determinations at the same time.
3. The existent gum test apparatus is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.
4. Each test hole equips unique flowmeter. It can control the hot-air flow rate of each test hole correctly.



II. Main technical specifications:
1. Power supply:  AC(220±10%)V,50Hz,3500W
2. Dimension of evaporation bath: φ260mm×130mm
3. Sample positions:  5 positions
4. Dimension of sample position:  φ51mm×70mm
5. Working temperature:  (160~165)ºC
6. Temperature control method:  Automatic
7. Temperature display:  Digital
8. Flow rate display:  Float ball type
9. Working pressure of reducing valve: 0.07MPa
10. Air flow rate of jet outlet:  600mL/s for each hole
11. Overall dimension:  590mm×480mm×340mmm(Thermometer holder is not included)

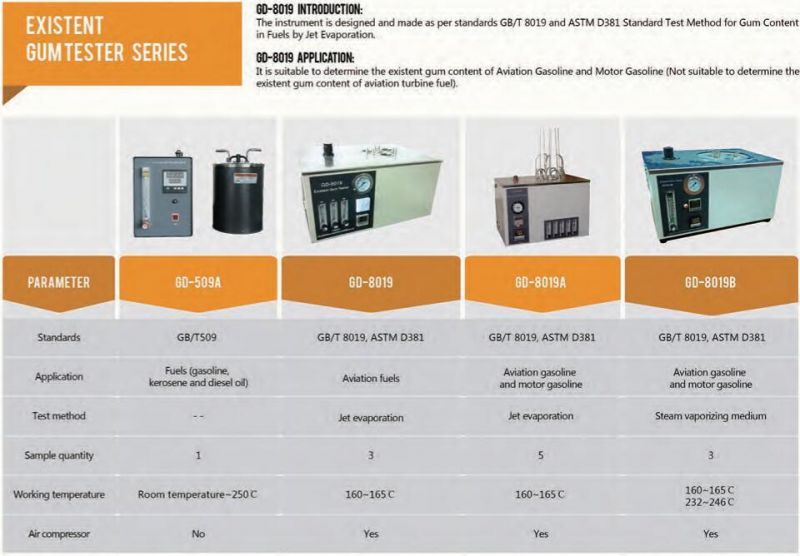

III. Related Products:
For ASTM D381, we have three types:
GD-8019 can test 3 samples(160~165ºC)
GD-8019A can test 5 samples(160~165ºC)
GD-8019B can test 3 samples(160~165ºC) and (232~246ºC)




IV. About us:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
