Fully Automatic Pensky-Martens Closed Cup Flash Point Apparatus with Big Touch Screen

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Power Source：AC220V
  • Product Name：Pensky Martens Closed Cup Flash Point Testing Appa
  • Standard：ASTM D93
  • Test Sample：Gasoline, Jet Fuel, Diesel, Lubricating Oil etc.
  • Temperature Range：Ambient~250 Celsius
  • Ignition Mode：Automatic

Base Info

  • Model NO.：GD-261D
  • Temperature Display：Color LCD
  • Printing：Yes
  • Comminication Port：Yes
  • Sample Cup：Standard Oil Cup
  • Dimension：520*360*310mm
  • Transport Package：Wooden Case Gd-261d
  • Trademark：gold
  • Origin：China
  • Production Capacity：100 Piece,Pieces Per Month

Description

Product nameFully Automatic Pensky Martens Closed Cup Flash Point Testing ApparatusPower supplyAC(220±10%)V,50HzFlash point determinationRange: Ambient to 300ºC
Repeatability: ≤3ºC
Reproducibility:≤6ºC
Accuracy:0.1ºCHeating rateProcedure A: (5~6)ºC/min, Procedure B: (1~1.6)ºC/min
Automatic control and manually adjustableStirring rateProcedure A: (90~120)RPM, Procedure B: (250±10)RPM
Automatic control and manually adjustableIgniting modeElectric ignition. Gas flame diameter:3.2mm~4.8mmWorking conditionAmbient temperature:(10~40)ºC
Relative humidity:≤80%Maximum power consumption500WDimension520*360*310m


More Closed Cup Flash Point Apparatus
 Gaoline, jet fuel, kerosene, diesel, gas turbine liquid, solvent oil, lubricating oil, insulating oil, fuel oil , petroleum wax, electricoil, biodiesel, etc.Colored paints, oil paints, adhesives, Solvents and petroleum productsTemperature rangeAmbient~300ºCAmbient~250ºCAmbient~300ºC-30ºC~50ºCIgnition modeManual Manual AutomaticManualTemperature displayThermometerColor LCDColor LCDLCDprintingNOYESYESYESCommunication portNONOYESNOSample cupStandard oil cupStandard oil cupStandard oil cup2mlDimension370*320*300mm410*360*310mm520*360*310mm370*280*280mm




Detail Images:

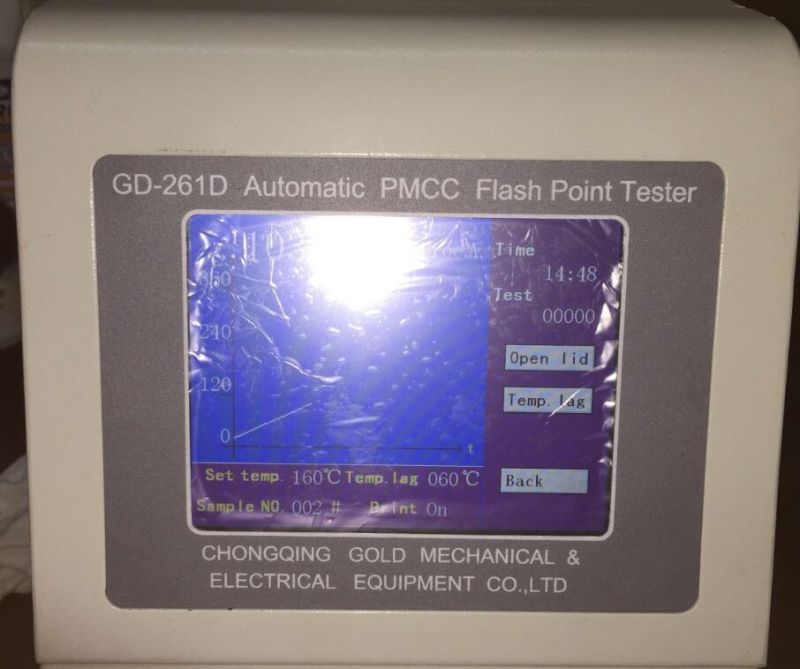

Fully Automatic Pensky-Martens Closed Cup Flash Point Apparatus with Big Touch Screen
Fully Automatic Pensky-Martens Closed Cup Flash Point Apparatus with Big Touch Screen

Fully Automatic Pensky-Martens Closed Cup Flash Point Apparatus with Big Touch Screen
