Total Sulfur in Light Hydrocarbons Analysis by UV-Fluorescence Method ASTM D5453

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Power Source：AC220V
  • Product Name：Total Sulfur in Light Hydrocarbons Analysis
  • Standard：ASTM D5453;ASTM D4629;ASTM D5762;ASTM D6069
  • Test Sample：Petroleum Oil with Sulfur Content of 5ppm to 5%
  • Test Method：Ultraviolet Fluorescence Method
  • Dimension：305*460*440mm

Base Info

  • Model NO.：GD-0689
  • Delivery Time：10 Working Days(If Urgent, We Can Push)
  • Working Temperature：5~40 Celsius
  • Relative Humidity：Less Than 85%
  • Power Supply：AC220V±20V, 50Hz
  • Usage：Used to Determine Mass% of Total Sulfur in Oil
  • Transport Package：Wooden Case for ASTM D5453 Sulfur Analyzer
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：100 Sets, Month

Description

Concentration values (ppm)

Injection quantity(µL)

 RSD(%)

5

10

10

50

10

5

100

10

3

8. Temperature range:Ambient to 1150ºC

9. Temperature control precision:±1ºC

10.Air supply requirements:High purity argon:above 99.9% ; High purity oxygen:above 99.9%

11.Power supply:AC220V±22V,50Hz±0.5Hz,1500 W

12.Dimension:Host:305(W)×460(D)×440(H)mm; Temp controller:550(W)×460(D)×440(H)mm

13. weight:Host::20kg, Temp controller:40kg



Related Products:
ParameterGD-380BGD-387GD-17040GD-0689
StandardsGB/T 380, ASTM D1266GB/T 387, ASTM D1551GB/T 17040, GB/T11140, ASTM D4294ISO 20846,ASTM D5453,ASTM D4629,ASTM D5762, ASTM D6069
Test sampleLight oils, such as gasoline, keroseneDark oils which sulfur content >0.1%Petroleum oil with sulfur content of 20ppm  to 100%Petroleum oil with sulfur content of 5ppm to 100%
Test methodLamp methodQuartz tube methodX-ray fluorescence (XRF)methodUltraviolet fluorescence method
Dimension3800*320*600mm530*400*670mm468*368*136mmHost:305*460*440mm
Temp controller:550*460*440mm
Working temperature5~40ºC5~40ºC5~40ºC5~40ºC
Relative humidity≤85%(30ºC)≤85%(30ºC)≤85%(30ºC)≤85%(30ºC)
Power suplyAC220V ±20V, 50HzAC220V ±20V, 50HzAC220V ±20V, 50HzAC220V ±20V, 50Hz



About us:

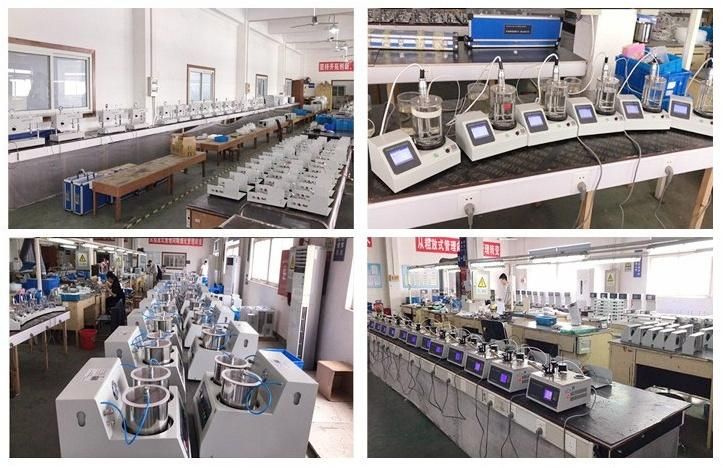

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
